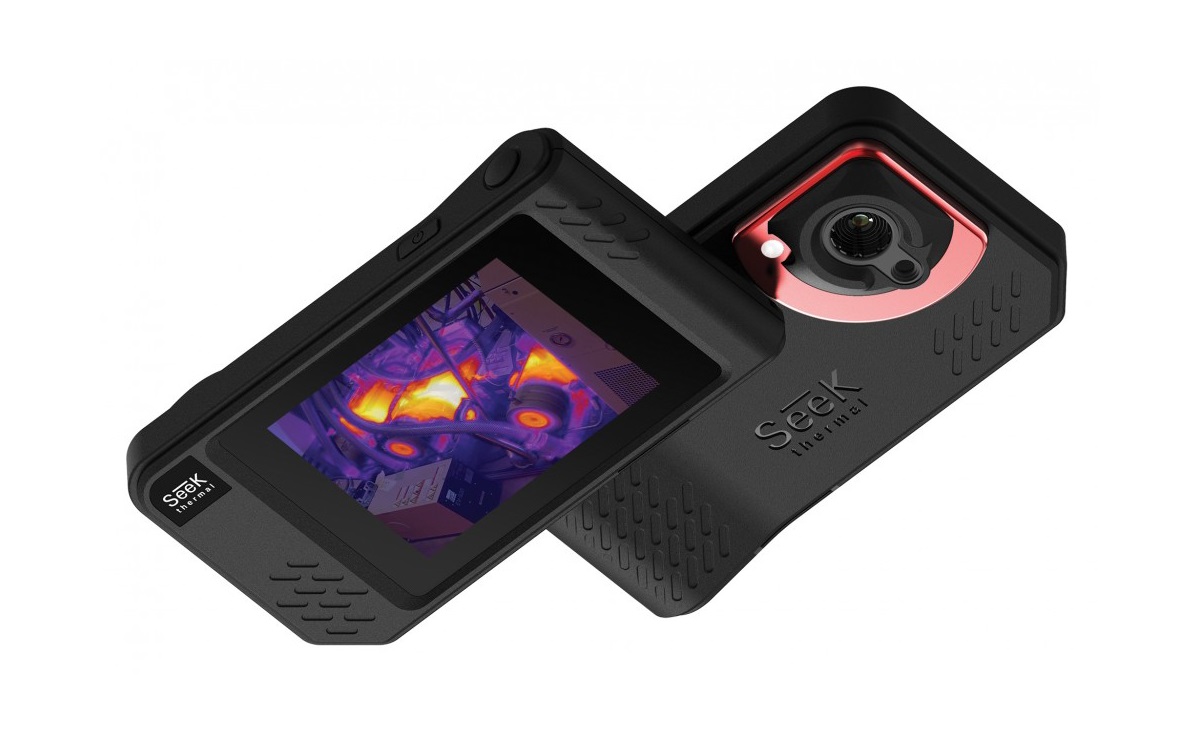

Seek ShotPRO SQ-AAA enables you to discover, diagnose and share thermal images of leaks, shorts, and other inefficiencies in homes, buildings and facilities.
Ergonomically designed with high-resolution thermal sensors and SeekFusion, Seek ShotPRO combinines thermal and visible imaging together for precise detail and accuracy.
It is built to withstand the wear and tear of working in the field with its IP54 rating and extended battery life. Seek ShotPRO features a 3.5” color touchscreen with an intuitive interface, making problem detection fast and easy.
Additionally, Seek ShotPRO SQ-AAA lets you stream a live thermal view onto your mobile device via WiFi using the SeekView mobile app.
| Details | Seek Shot | Seek ShotPro |
|---|---|---|
| Interface | USB WiFi enabled | USB WiFi enabled |
| Resolution | 206 x 156 pixel | 320 x 240 pixel |
| Field of View | 36° | 57° |
| Detection | -40 bis +330 °C | -40 bis +330 °C |
| Focus adjustable | Fixed Focus | Fixed Focus |
| Long Wave Infrarot | 7.5 – 14 Microns | 7,2 - 14 Microns |
| User interface | Intuitive Touch Screen | Intuitive Touch Screen |
| Display | 3.5” Color Display (648 x 480 Resolution) | 3.5” Color Display (648 x 480 Resolution) |
| Model | SW-AAA | SQ-AAA |
Special features
SEEKFUSION™ IMAGE
Ergonomically designed with high-resolution thermal sensors and SeekFusion, Seek ShotPRO combinines thermal and visible imaging together for precise detail and accuracy.
