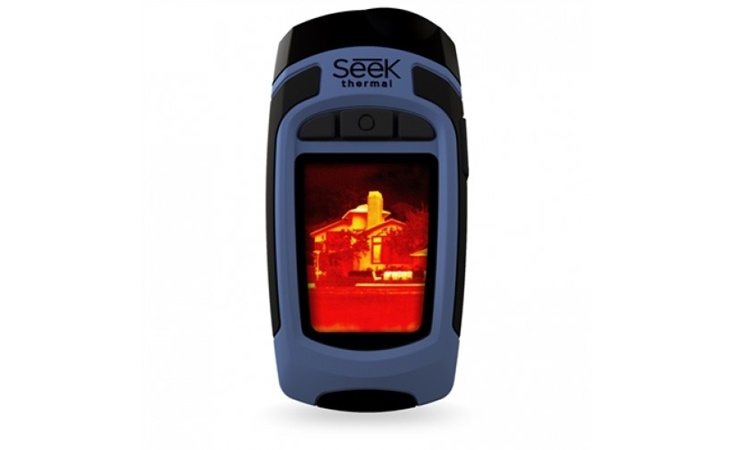

Built for the realities of work and play, the Seek Reveal handheld imager combines powerful thermal insight and a high-performance light in one durable device.
With a best in class detectable range of -40 bis +330 °C (-40° to 626° F), Reveal lets you pinpoint specific sources of heat and heat loss up to 500 feet away, all at just the touch of a button.
Whether you’re a plumber searching for a clog, an electrician checking for a hotspot, a hunter tracking game, or a homeowner looking for peace of mind, Reveal delivers the insight and illumination you need to find, fix, and feel safe faster.
| Details | Seek Reveal | Seek Reveal Pro |
|---|---|---|
| Interface | USB | USB |
| Resolution | 206 x 156 pixel | 320 x 240 pixel |
| Field of View | 36° | 32° |
| Detection | -40 bis +330 °C | -40 bis +330 °C |
| Distance | up to 160 m | up to 550 m |
| Focus adjustable | ||
| Long Wave Infrarot | 7,2 - 13 Microns, 12 u Pixel Pitch | 7,2 - 14 Microns, 12 u Pixel Pitch |
| Lens | Vanadium Oxide Mikrobolometer, Chalcogenide | Vanadium Oxide Mikrobolometer, Chalcogenide |
| Display | Highly resistent Gorilla®-Glas-Display | Highly resistent Gorilla®-Glas-Display |
| Model | UW-EAA / LW-EAA | UQ-EAAX / LQ-EAAX |
Special features
Detect heat
See what’s hot and cold all around you detect heat through walls, foliage, even in total darkness.
Pinpoint energy loss
Pinpoint energy loss, air leaks, clogged pipes, and electrical hazards.
Everyday uses
Thousands of everyday uses—perfect for homeowners, contractors, inspectors, and more.Downloads
Manual
Seek Reveal Manual
Language: English
File Size: 908.34 KiB
Release Date: 27.12.2018
Seek Reveal Manual
Language: German
File Size: 2.14 MiB
Release Date: 27.12.2018
Seek Reveal Manual
Language: Spain
File Size: 1.55 MiB
Release Date: 27.12.2018
