The Model UT300B Infrared Thermometer can determine the surface temperature by measuring the amount of infrared energy radiated by the target's surface.
The Termometers are non-contact infrared devices with low consumption design allowing the usage for a longer time, helping to solve the frequently changing battery and low battery issues during measurement. Intelligent design can make measurement easier and quicker.
| Quick comparision | UT300B | UT301C | UT302D |
|---|---|---|---|
| Distance to Spotsize | 10:1 | 12:1 | 20:1 |
| Temperature Range | -18 °C to 380 °C -0.4 °F to 716 °F | -18 °C to 550 °C -0.4 °F to 1022 °F | -32 °C to 1050 °C -25.6 °F to 1922 °F |

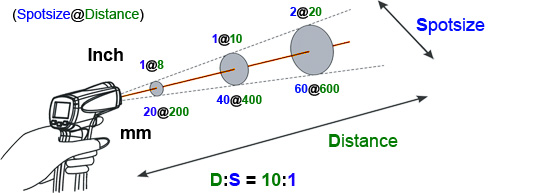

Distance to Spotsize
As the distance (D) from the target being measured increases, the spotsize (S) of the area measured by the unit becomes larger. The spotsize indicates 90 % encircled energy.
Specifications
| Specifications | UNI-T UT300B |
|---|---|
| Temperature Range | -18 °C to 380 °C -0.4 °F to 716 °F |
| Display Accuracy | ±2 °C or ±2 % |
| Repeatability | <±0.5 °C or <±0.5 % |
| Display Resolution | 0.1 |
| Distance to Spotsize | 10:1 |
| Response Time | 500 ms |
| Laser Power | Class 2 Laser Product, Output <1 mW, Wavelength 630-670 nm |
| Display Hold | 8 seconds |
| °C / °F Selection | |
| Emissivity | 0.95 |
| Temperature Data Hold | |
| Power | 9 V Battery (6F22) |
| Laser Switch | |
| MAX / MIN Temperatures | |
| DIF / AVG Temperatures | not available |
| Display Backlight | |
| Low Battery Display |
CLASS 2 LASER PRODUCT
Caution!
Avoid Exposure - Laser Radiation is emmited from this aperture
Laser Radiation - Do not stare into beam
complies with EN61326-1 EMC/EN60825-1 Safety
Output <1 mW, Wavelength 630-670 nm
