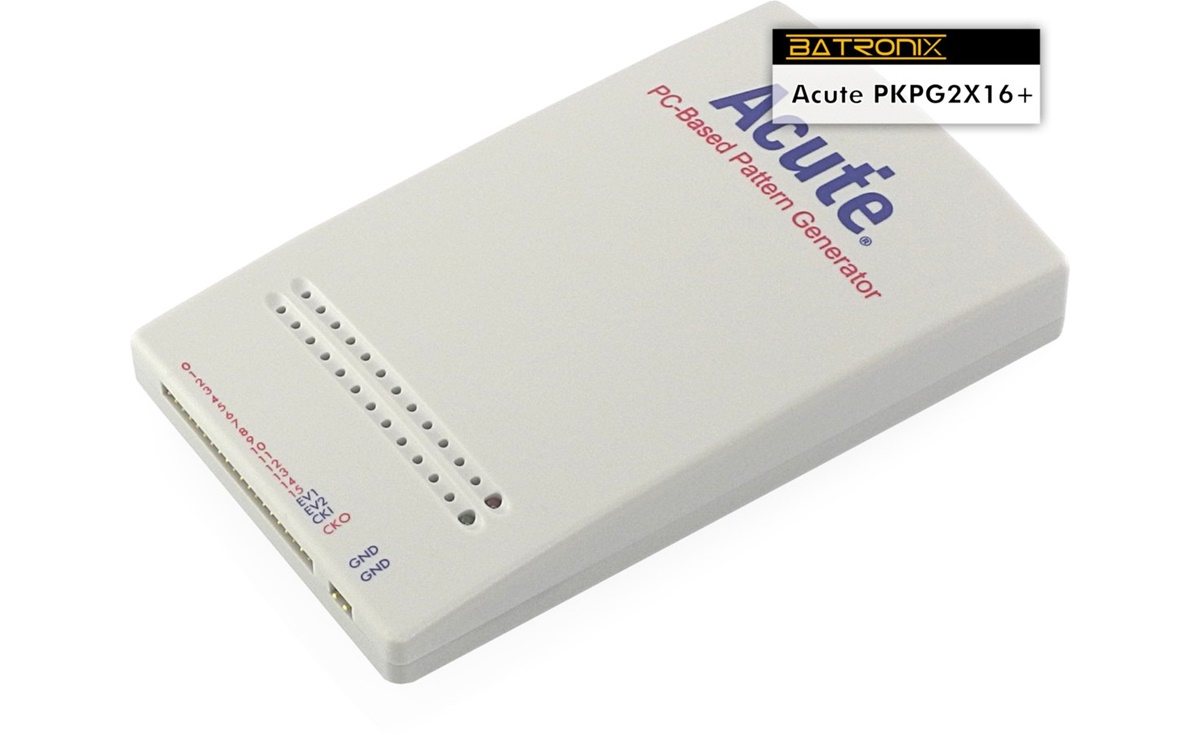

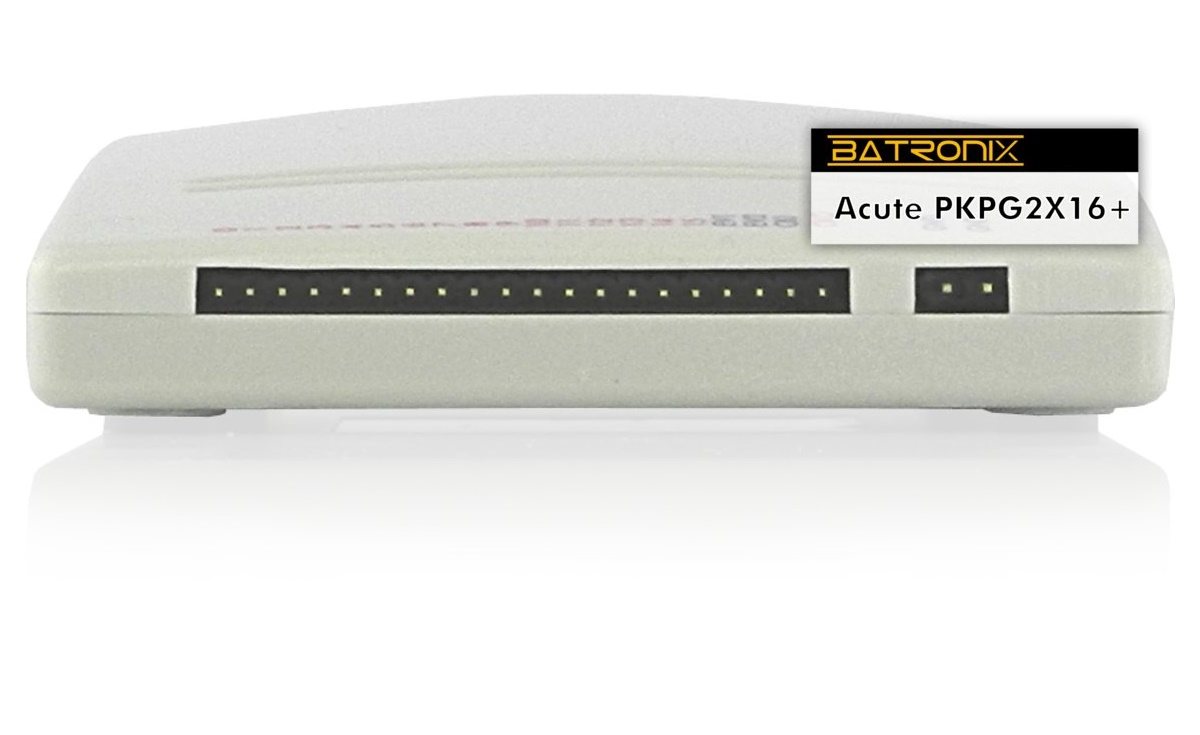

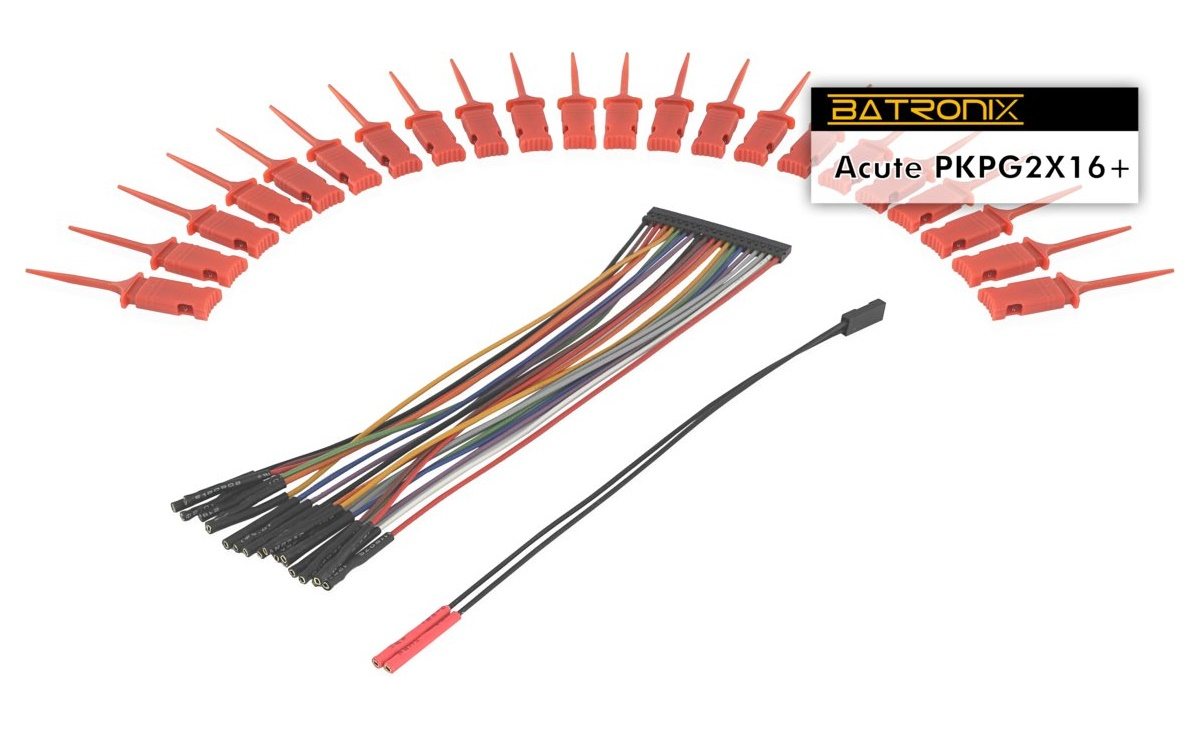

The Acute PKPG2016+ Pattern Generator is a powerful digital data generator for several kinds of high speed, multi channel digital waveforms. The included waveform helps to define signals and transfers them to a testing board without the need to make an additional testing circuit.
The Acute Pattern Generator Software provides several tools for waveform generation, like the User Editor, Protocol Simulation,Counters or Bus Systems. In combination with the Acute Logic Analyzers, it is possible to record a waveform, translate and output them with the Acute Pattern Generator.
| Model Differences | PKPG2016+ | PKPG2116+ |
|---|---|---|
| Total Memory Size | 2M bits | 16M bits |
| Memory Depth (in vectors) | 64 kb/CH | 512 kb/CH |
Pattern Generator Utilities
| Specifications | Acute PKPG2016 / PKPG2116+ |
|---|---|
| Power Source | USB Bus power (5V) |
| Static Output Power | 0.75 W |
| Peak Output Power | < 2.5 W |
| Protection | resetable fuse (750 mA) |
| Interface | USB |
| Supported operation systems | Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit) |
| Output Channels | 16 (CH00 to CH15) |
| Internal Operation Clock | 10 Hz to 200 MHz, fine adjustable |
| Clock Output Channel | 1 Channel (CH19) |
| External Clock Input | <= 200 MHz, logic NOT, AND |
| Clock Input Channel | 1 Channel (CH18) |
| Max. Output Voltage | 5 V (max. 0.075 V less than USB input voltage) |
| FAN Out | 20 mA/ea. (total < 150 mA) |
| Data Skew | < 3 ns |
| Waveform Generator | Synchronous Counter, Asynchronous Counter, Printer(SPP), UART, I2C, SPI, LIN, CAN, HDQ, 1-Wire, Microwire, I2S, Encoder, USB1.1, SMBUS, PMBUS |
| Dimensions | 117 mm × 72 mm × 20 mm (4.61" × 2.83" × 0.79") |
| Weight | 83 g (0.183 lb) |
Downloads
Datasheet
Acute PkPG2x16+ Datasheet
Language: English
File Size: 56.79 KiB
Release Date: 27.12.2018
Driver
Acute USB Driver
Version: 2.0.4
File Size: 56.79 KiB
Release Date: 14.10.2013
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)
Manual
Acute PKPG-2000 Manual
Language: English
File Size: 4.00 MiB
Release Date: 27.12.2018
Acute PKPG-2000 Manual
File Size: 4.00 MiB
Release Date: 27.12.2018
Software
Acute Pattern generator Main Program
Version: 1.69.1.0
File Size: 56.79 KiB
Release Date: 02.05.2014
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)
