Description

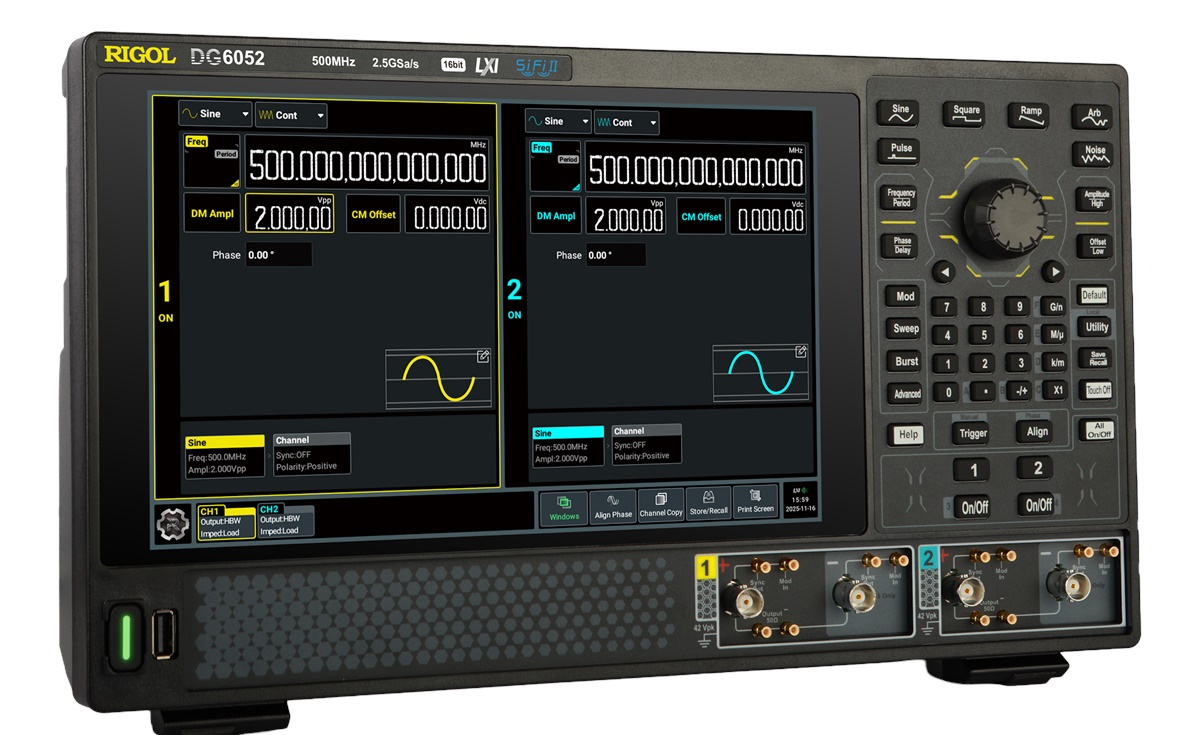

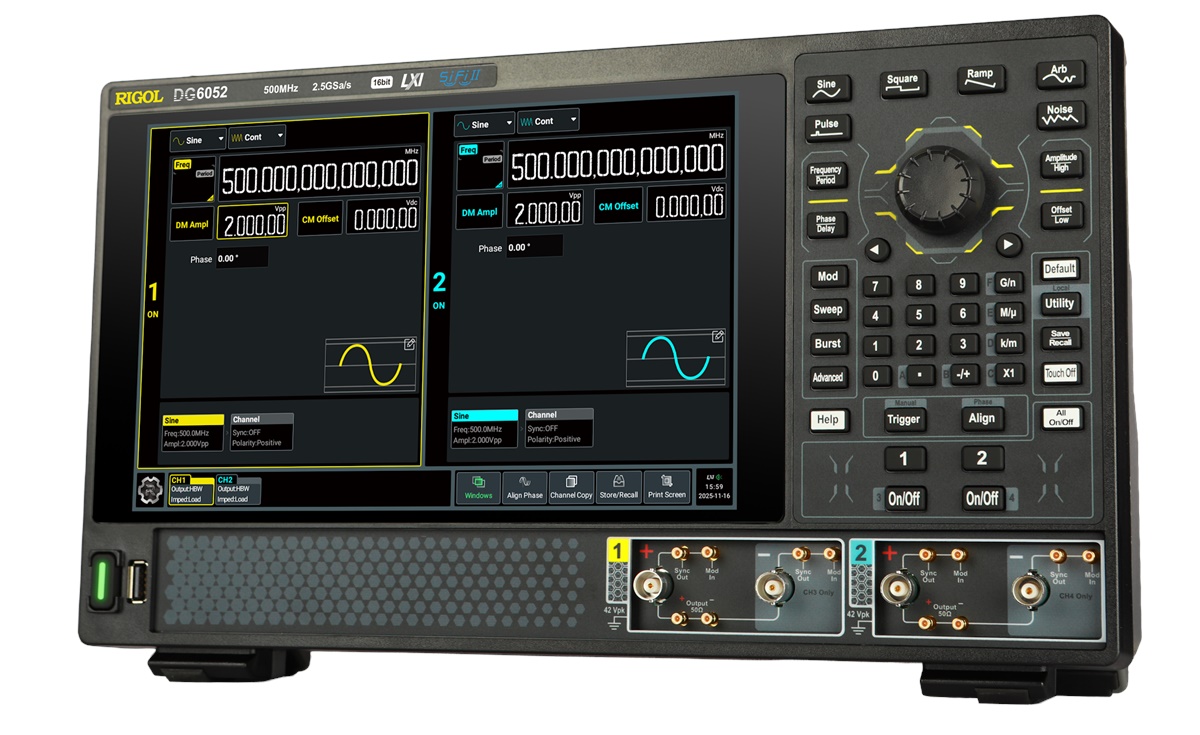

The Rigol DG6000 models are a series of high-voltage differential function/arbitrary signal generators featuring 2.5 GS/s, 16-bit resolution, and a maximum bandwidth of 500 MHz or 1 GHz. Each model features 2 or 4 differential channels (corresponding to 4 or 8 single-ended channels). The differential direct output goes up to 20 Vpp. The 350 ps rise time for square-wave signals and the high-frequency output up to 300 MHz set a new benchmark in time-domain measurement.

Possible applications:

Power semiconductor testing (SiC/GaN)
High-speed digital circuits
Automotive electronics and bus systems
Advanced scientific research experiments

Three output modes are available to suit a wide range of applications. The HBW (High Bandwidth) mode provides maximum bandwidth of up to 1 GHz, making it ideal for high-frequency signal transmission. The AMP (High Amplitude) mode delivers a high differential output amplitude of up to 20 Vpp, which is suitable for applications requiring strong signal levels. Additionally, the SND (Single-Ended) mode offers a standard single-ended output for conventional use cases.

Common features	DG6000
Sampling rate	2,5 GSa/s
Vertical resolution	16 Bits
Arbitrary waveform memory	256 Mpts/CH (512 Mpts/CH)
Output Modes	SND (BNC, single-ended by default), AMP (BNC, up to 20 Vpp), HBW (SMB, up to 1 GHz / 350 ps rise time)
Max. Amplitude	20 Vpp < 100 MHz
Continuous Waveforms	Sine, Square, Ramp, Pulse, Noise, Arb, DC, Harmonics, Overtones (up to the 20th order)
Modulation	AM, FM, PM, ASK, FSK, PSK, PWM, SUM
Advanced output	Sequence, PRBS, Multi-pulse, Multi-tone, Pattern, IQ
Display	10,1" Touchscreen, 1280 x 800
Interfaces	LAN (LXI-C), USB Host/Device, HDMI
Dimensions	358 x 215 x 122 mm

Modell	DG6052	DG6054	DG6102	DG6104
Max. Frequency	500 MHz	500 MHz	1 GHz	1 GHz
Channels	2 (4 Single-ended)	4 (8 Single-ended)	2 (4 Single-ended)	4 (8 Single-ended)

For additional technical specifications of the Rigol DG6000 series, please refer to the DG6000 data sheet.

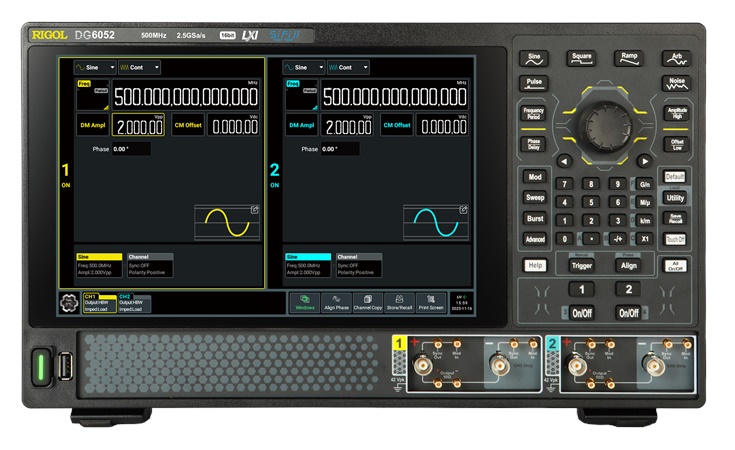

Front 2 channels

10.1-inch Touch Screen
Output Mode Selection Area
Frequency/Period and Phase/Delay Toggle Keys
Basic Waveform Selection Area
Amplitude/High Level and Offset/Low Level Toggle Keys
Parameter Input Area (Knob, Arrow Keys, and Numeric Keypad)
Quick Operation Key
Help Key, Manual Trigger Key, Align Phase Key
Channel Output Control Area
Sync Output/Trigger Output (Sync Out) Connector, Modulation Input (Mod In) Connector
Output Connector
USB HOST Interface
Power Key

Front 4 channels

10.1-inch Touch Screen
Output Mode Selection Area
Frequency/Period and Phase/Delay Toggle Keys
Basic Waveform Selection Area
Amplitude/High Level and Offset/Low Level Toggle Keys
Parameter Input Area (Knob, Arrow Keys, and Numeric Keypad)
Quick Operation Key
Help Key, Manual Trigger Key, Align Phase Key
Channel Output Control Area
Sync Output/Trigger Output (Sync Out) Connector, Modulation Input (Mod In) Connector
Output Connector
USB HOST Interface
Power Key
