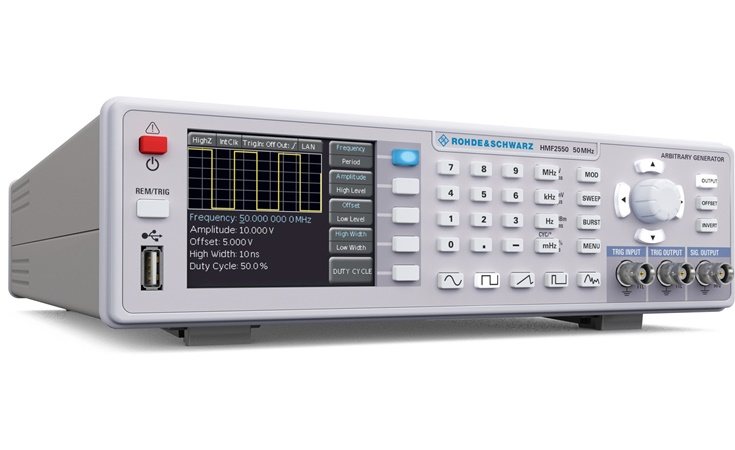

R&S® HMF2550

Be the first to write a review

1 channel function / arbitrary waveform generator with 10 μHz to 50 MHz bandwidth, 250 MSa/s samplerate, 14 Bit resolution, 256 kpts memory depth, amplitude range 10 mVpp to 20 Vpp (high impedance), 8.9 cm (3.5”) display.

3 years warranty

Nr: 3593.0622.02

with FREE shipping within the EU!
Shipping costs outside EU

in Stock

€ 2,510.- net (VAT Details)

€ 2,986.90 incl. 19% VAT

Description

With the HMF2500 series, Rohde & Schwarz offers premium function generators that can produce a wide variety of signal shapes such as sine, rectangle, pulse and triangle in high quality according to the DDS principle. Furthermore, freely definable arbitrary signals with a signal length of up to 256 k can also be generated.

All the necessary information can be read off easily from the 8.9 cm TFT display and the fanless design ensures a quiet working environment.

Models	HMF2525	HMF2550
Max. Frequency	25 MHz	50 MHz
Sample Rate	250 MSa/s	250 MSa/s
Resolution	1 µHz	1 µHz
Channels	1	1

Special Features

Frequency range: 10 µHz to 25 MHz / 50 MHz
Triangle and ramp signal up to 10 MHz
Pulse: frequency range from 100 µHz to 12.5 MHz / 25 MHz
Output voltage: 5 mVPP to 10 VPP (into 50 Ω load)
DC offset: ± 5 mV to 5 V
Output impedance steplessly adaptable (1 Ω to 10 kΩ)
Total harmonic distortion: 0.04% (f < 100 kHz)
Waveform modes: sine, square, pulse, triangle, ramp and arbitrary waveforms
(incl. standard curves: white noise, pink noise, cardiac, exponential rise and fall, etc.)
Modulation modes: AM, FM, pulse, PWM, FSK (internal and external)
Arbitrary waveform generator: 250 MSa/s, 14bit, 256 kSa
Easily create your own waveforms using standard PC software
Oscillographic signal display

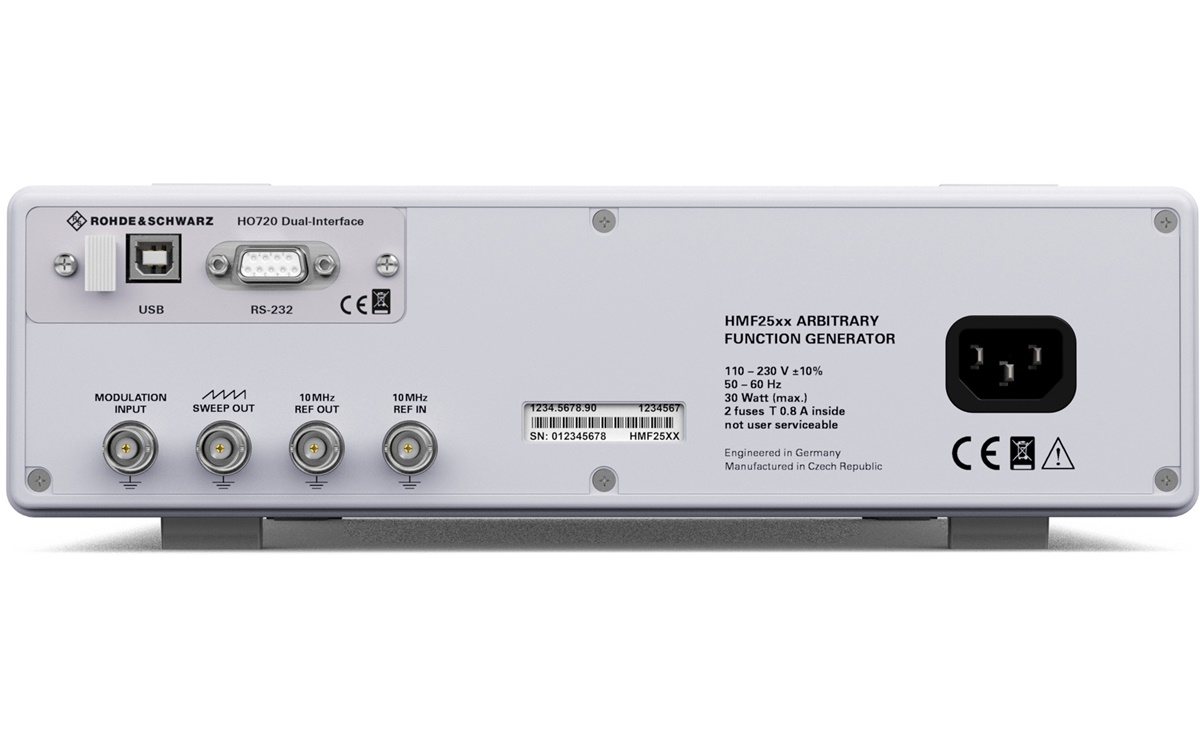

Front USB to easily save and recall waveforms and settings, RS-232/USB dual interface for remote control, LAN optional
BNC connectors: modulation input, sweep output, trigger (input, output), 10MHz reference (input, output, ±1ppm TCXO)
Fanless design
