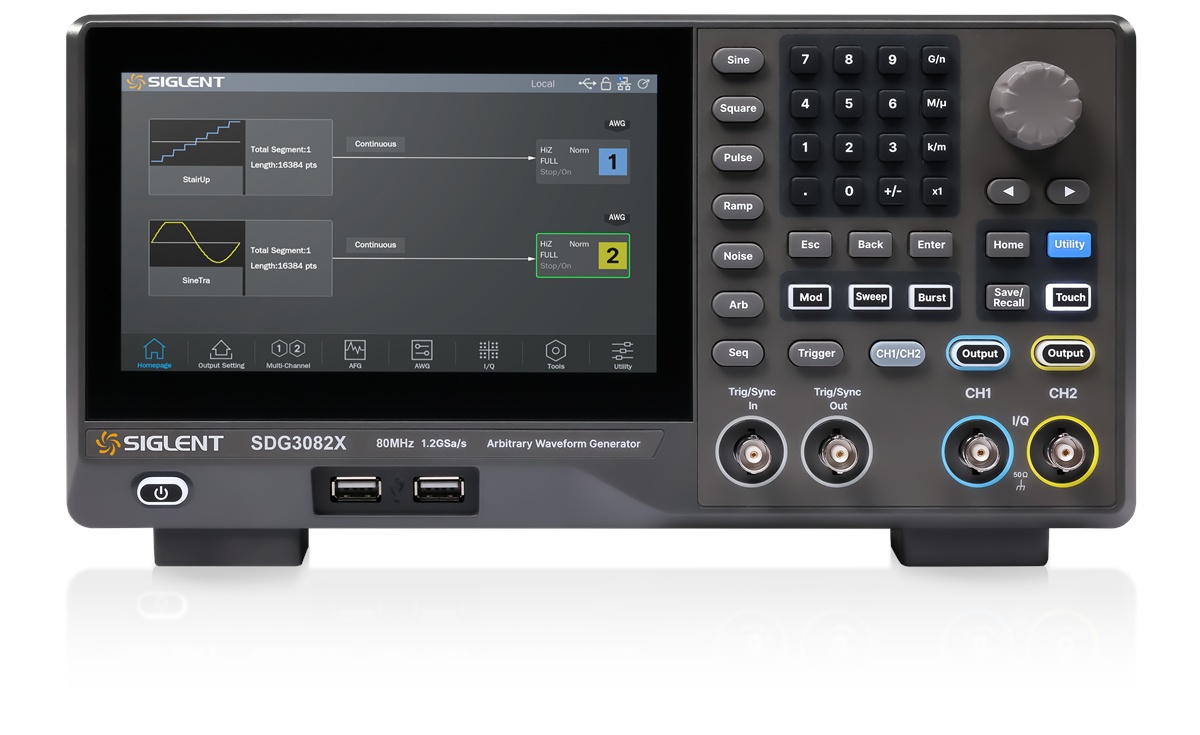

Name: Siglent SDG3082X
Brand: Siglent
SKU: 797409279051
Availability: BackOrder

Description

The SDG3000X series dual-channel function/arbitrary waveform generators offer a maximum bandwidth of 200 MHz. With a sampling rate of 1.2 GSa/s and 16-bit vertical resolution, they deliver outstanding precision.

Building on traditional DDS technology, the series incorporates innovative TrueArb and EasyPulse technologies, which overcome the common limitations of DDS when generating arbitrary, square, and pulse waveforms.

This ensures high-fidelity signals with minimal jitter. In addition, the Siglent SDG3082X supports PRBS pattern generation, sequencing, dual-pulse, and vector signal outputs, making it suitable for a wide range of applications.

Model	SDG3082X	SDG3162X	SDG3202X
Max. Frequency	80 MHz	160 MHz	200 MHz
Resolution	1 µHz	1 µHz	1 µHz
Max. Sample rate (2x Interpolation)	1.2 GSa/s	1.2 GSa/s	1.2 GSa/s
Max Amplitude	20 Vpp < 40 MHz	20 Vpp < 40 MHz	20 Vpp < 40 MHz
Frequency Counter	up to 200 MHz	up to 200 MHz	up to 200 MHz
Channels	2	2	2

You will find the specifications of the SDG3000X series here.

Special Features

Powerful sequence playback function

Provides flexible sequence playback function to easily cope with various scenario tests. The maximum waveform storage depth of each channel is 40 Mpts. Easily set the number of cycle times for each waveform and the order of waveform playback. It supports up to 1024 segments. During playback, it can also indicate the segment currently being played, allowing you to control the test. Five operating modes: continuous, triggered, burst, single, and advanced. The advanced operating mode allows you to set the trigger mode for each segment. Four trigger sources are available: "Auto", "External", "Manual" and "Timer".

Built-in multi-pulse function

Built-in dual pulse output function, combined with siglent's oscilloscope, can quickly measure the switching parameters and dynamic characteristics of power devices without the need for host computer software.

Modulation functions

Rich modulation functions, supporting commonly used AM/DSB-SC/ FM/ PM/ ASK/ FSK/ PSK/ PWM modulation methods.

Two modulation sources are available: internal and external.

Burst mode

Supports two Burst modes: N cycle and Gating.

Three trigger sources are available: internal, external and manual.

Sweep mode

Supports three sweep modes: frequency, amplitude, and frequency and amplitude, making it easy to implement frequency sweep and amplitude sweep tests.

Supports three sweep type: linear, log and step, and three sweep directions of up, down and up_down.

Three trigger sources are available: internal, external and manual.

Counter

When the counter is in frequency counter mode, it can be used to measure the frequency, period, and duty cycle of a signal. The measurement range is 0.1 Hz ~ 200 MHz.
