Leo Bodnar LBE-1421

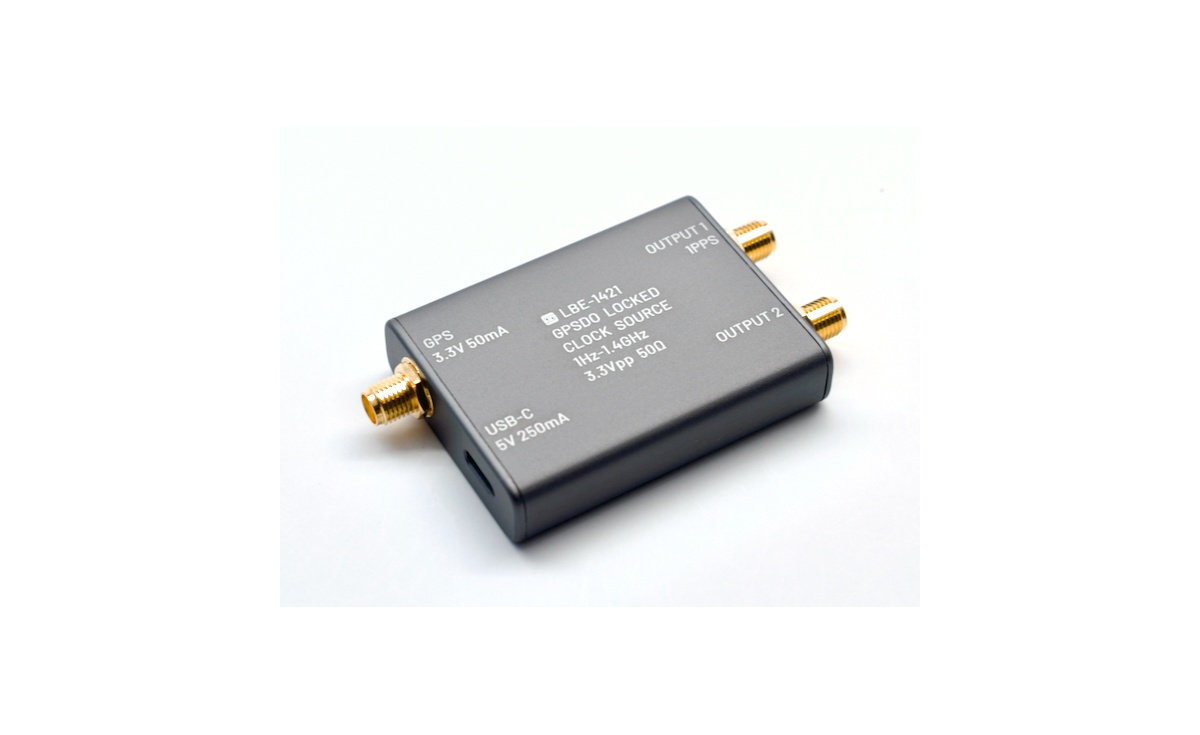

The LBE-1421 is a high-precision, GPS-disciplined reference clock source with two independently programmable outputs for generating long-term stable and low phase noise frequency and time signals.

It is ideal for frequency calibration and as a stable RF reference for measuring instruments, signal generators, SDR systems, mixers, frequency multipliers, and other demanding applications.

Long-term stability is determined by the GPS time standard (UTC, atomic clock-based) and typically reaches 1 × 10⁻¹² (≈ 0.000001 ppm) in GPS-locked mode. A high-quality internal TCXO optimizes short-term behavior and ensures very low phase noise and RMS jitter in the sub-picosecond range (typical, depending on the integration band).

With a multi-stage digital/analog PLL, the output frequencies for both outputs can be finely adjusted independently. Output 1 is programmable from 1 Hz to 800 MHz and can alternatively be used as a 1-PPS or NMEA output. Output 2 covers the range from 1 Hz to 1.4 GHz. Both outputs are adjustable with virtually any frequency resolution.

The output signal is a 3.3 V CMOS square wave with 50 Ω source impedance and can be used directly by most measuring and RF devices. The scope of delivery includes an active GPS antenna with a 5 m cable and magnetic base.

Signal and performance data

• Output power (at 10 MHz, basic channel): +11 dBm
• Typical phase noise at 10 MHz:
  • –72 dBc/Hz @ 1 Hz
  • –101 dBc/Hz @ 10 Hz
  • –128 dBc/Hz @ 100 Hz
  • –147 dBc/Hz @ 1 kHz
  • –156 dBc/Hz @ 10 kHz
  • –159 dBc/Hz @ 100 kHz
  • –164 dBc/Hz @ 1 MHz
• Rise/fall time at 10 MHz: 300 ps / 260 ps (10–90%)
• Power consumption: max. 250 mA at 5 V (USB-C)

GPS and holdover behavior

A GPS signal is required for operation. A temporary loss is processed seamlessly—without frequency or phase jumps.

• GPS acquisition time after power-up: approx. 30 seconds
• Holdover operation during GPS failure with best possible frequency retention
• Seamless resynchronization after reacquisition
• Support for active and passive antennas
• Antenna voltage at SMA connector: 3.3 V (max. 30 mA)

Configuration & interfaces

• Configuration of output frequency via USB (Windows software)
• Storage of all settings in the device
• NMEA satellite data available via virtual serial USB port
• Power supply via USB-C (5 V) – PC, power supply, or power bank
• Factory preset to 10 MHz output frequency

Typical applications

• Reference frequencies (e.g., 10 MHz, 1 MHz) for laboratory and measuring equipment
• RF reference for amateur radio transmitters, frequency markers, VHF/UHF/microwave converters
• Reference for receivers, RTL-SDR (e.g., 28.8 MHz) and scanners
• Calibration source for radio receivers
• Master clock for audio/video devices, DACs, and studio equipment

Technical data

• Dimensions: 69 × 40 × 12 mm (including connectors)
• Power supply: USB-C, 5 V, max. 250 mA
• GPS antenna connection: SMA, 3.3 V, max. 30 mA
• RF outputs: 2 x SMA (Out1: 1 Hz–800 MHz or 1 PPS; Out2: 1 Hz–1.4 GHz)
• Certification: CE, FCC, UKCA
• Warranty: 2 years
