The PCBite kit XS insulated low profile includes four low profile PCB holders that secure your board at a height of just 20 mm, compared to the standard 50 mm. This reduced height is ideal for use in TEM cells, soldering low profile PCBs, and in mixed test setups where different PCB heights are needed.

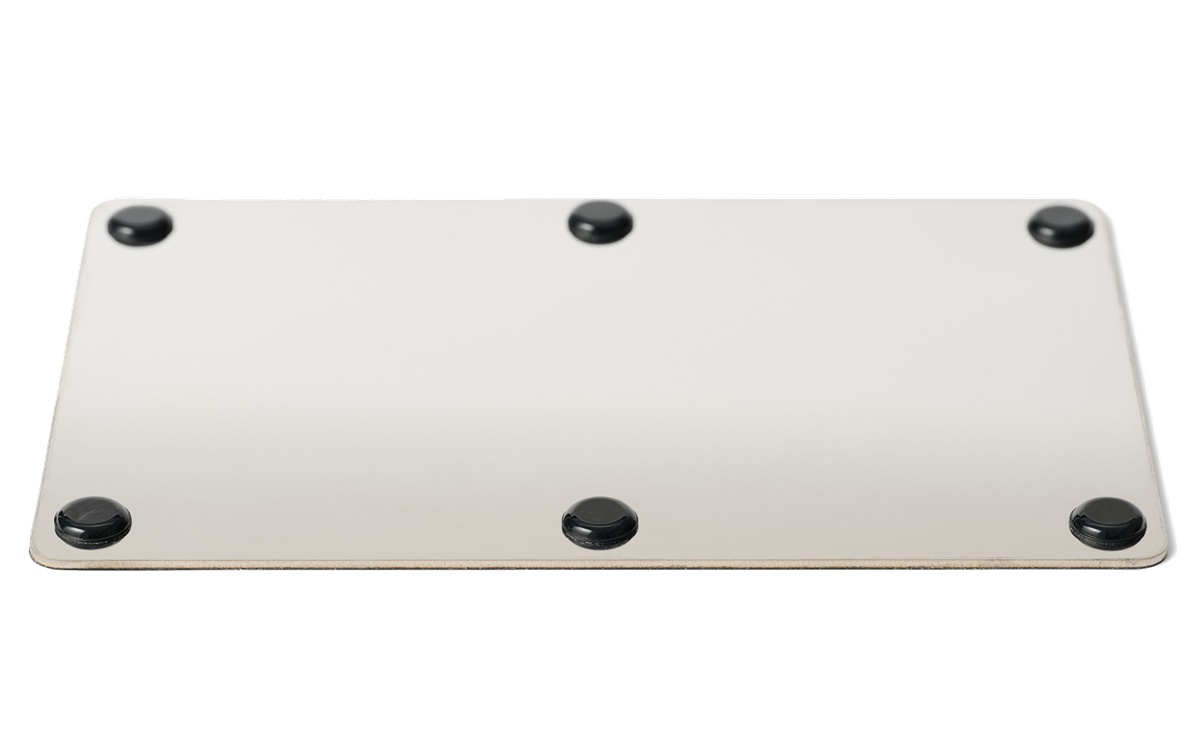

The included extra small base plate comes pre-fitted with an insulation cover and features a mirror surface on the back for added utility. Due to its compact size and light weight, rubber feet are included to provide extra friction and stability during use.
PCBite the solution for soldering, inspection and handsfree measurements
PCBite is a complete line of products handling your circuit board during the development phase. Powerful magnets together with a stainless base plate makes the system flexible, mobile and user friendly.
Forget about the old stationary circuit board holders placed deep inside the company lab, we have developed a mobile and user friendly solution made for a fast phase development environment. Let your circuit board travel safety on board our PCBite thru the development and save a lot of time and hassle.
PCBite PCB holders
The holder can easily be repositioned to handle circuit boards of varying shape and sizes.
The holders are CNC machined from 6061 grade aluminium then sandblasted and finally anodized black matte to get that perfect look and feel. At the bottom of each holder is a strong magnet perfectly balanced in strength. A low friction bottom cap protects the magnet and makes the PCBite holder easy to slide. The “jaw” can open wide and a stainless spring ensures a really strong locking force. Every holder comes with yellow insulation washers which protects your circuit board. The washers also allows you to power up your creation safely.
The probes
The probes are steady but yet flexible made for instant measurements or total hands-free operations together with your prefered measurement tools such as a multimeter, logic analyzer, debugger/programmer, MSO(mixed signal oscilloscope) or oscilloscope.
The probes
The probe has a flexible metal arm and a powerful magnet in the base for easy positioning. The one of the kind "lift and drop" function takes away the need for annoying and complicated set screws.
The probes
The weight of the head makes the compressible needle maintain constant pressure at the probing point so even if the board is bumped into the probe tip will always stay in position.
The measuring tip comes with a M4 thread interface for several mounting options.
The base plate
The base plate is made of stainless steel and comes in two sizes, small (DIN A5) and large (DIN A4). One side of the plate is matte and the other mirror polished. The mirror polished surface makes it easy to see components on the circuit board underside. Every base plate comes with a microfiber cloth to keep it nice and shiny.Downloads
Manual
PCBite kit low profile manual
Language: English
Version: 1.1
File Size: 537.48 KiB
Release Date: 01.07.2025
