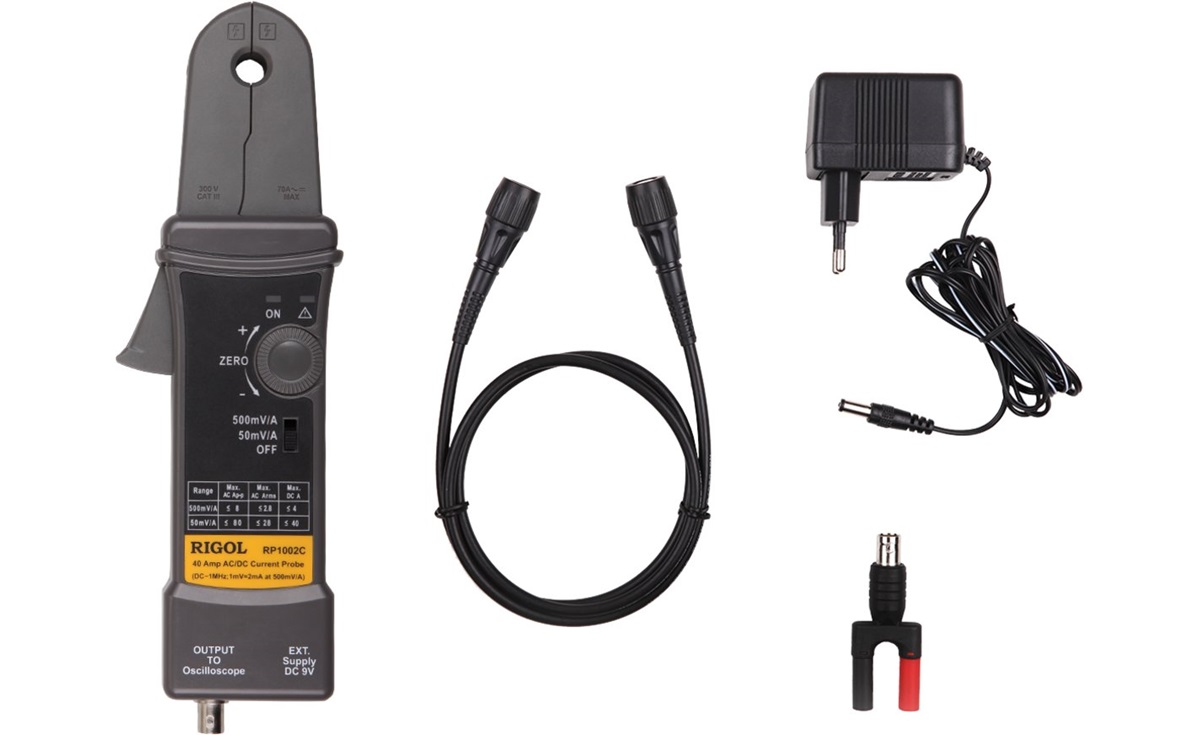

Rigol RP1002C Current Probe
| Model -> | RP1001C | RP1002C | RP1003C | RP1004C | RP1005C |
|---|---|---|---|---|---|
| Bandwith | 300 kHz | 1 MHz | 50 MHz | 100 MHz | 10 MHz |
| Current Ranges | 10 A / 100 A | 7 A / 70 A | 50 A | 50 A | 300 A |
| Sensivity | 0.1 V/A (10 A) 0.01 V/A (100 A) | 0.5 V/A (7 A) 0.05 V/A (70 A) | 0.1 V/A | 0.1 V/A | 0.01 V/A |
| DC Accuracy | 100mV/A: ±3% ±50mA (50mA to 10A peak range) 10mV/A: ±4% ±50mA (500mA to 40A peak range) 100mV/A: ±15% maximum (40A peak to 100A peak range) | 500mV/A: ±3% ±20mA (20mA to 14A peak range) 50mV/A: ±4% ±200mA (200mA to 100A peak range) 50mV/A: ±15% maximum (100A peak to 140A peak range) | ±1.0%rdg±1mV, ≤30A ±2.0%rdg, 30A to 50A peak non-continuous (DC and 45Hz to 66Hz, within the linear response range of the input current) | ±1.0%rdg±1mV, ≤30A ±2.0%rdg, 30A to 50A peak (DC and 45Hz to 66Hz, within the linear response range of the input current) | ±1.0%rdg±1mV, ≤150A ±2.0%rdg, 150A to 300A peak (DC and 45Hz to 66Hz) |
| Max. Input | CAT II 600 V / CAT III 300 V | CAT II 600 V / CAT III 300 V | CAT II 600 V / CAT III 300 V | CAT II 600 V / CAT III 300 V | CAT II 600 V / CAT III 300 V |
| RP1000P necessary |
