Siglent SAP8000D

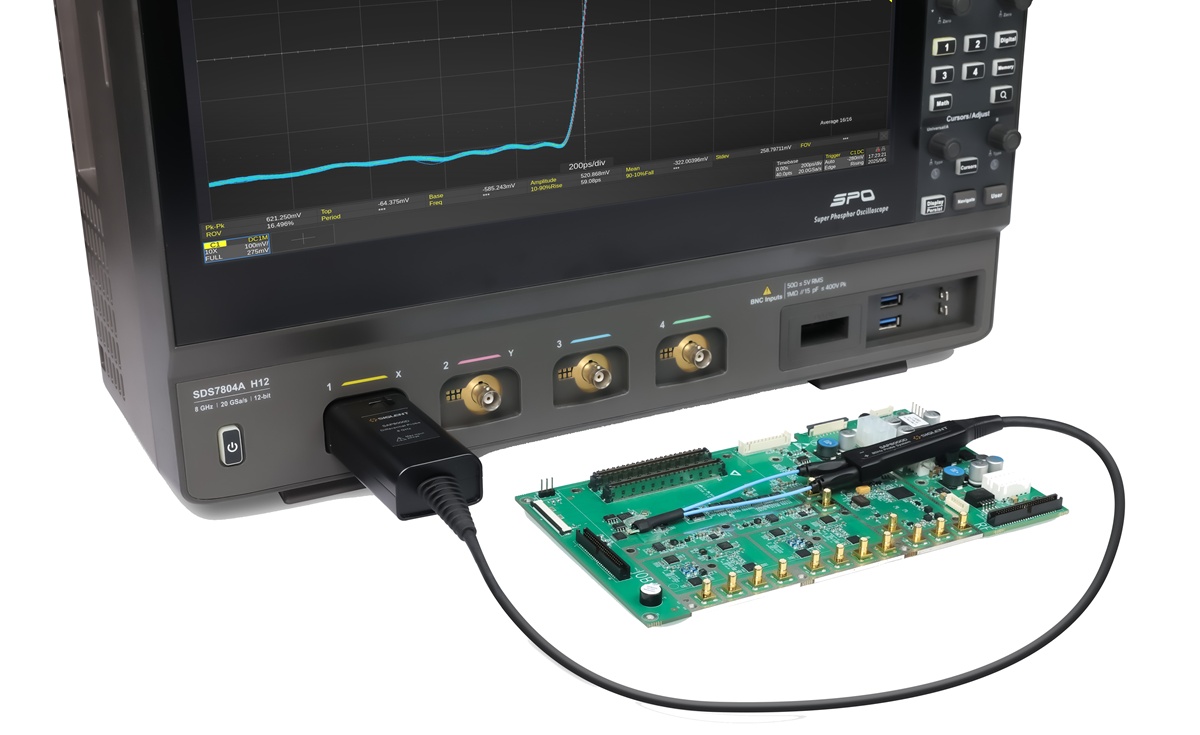

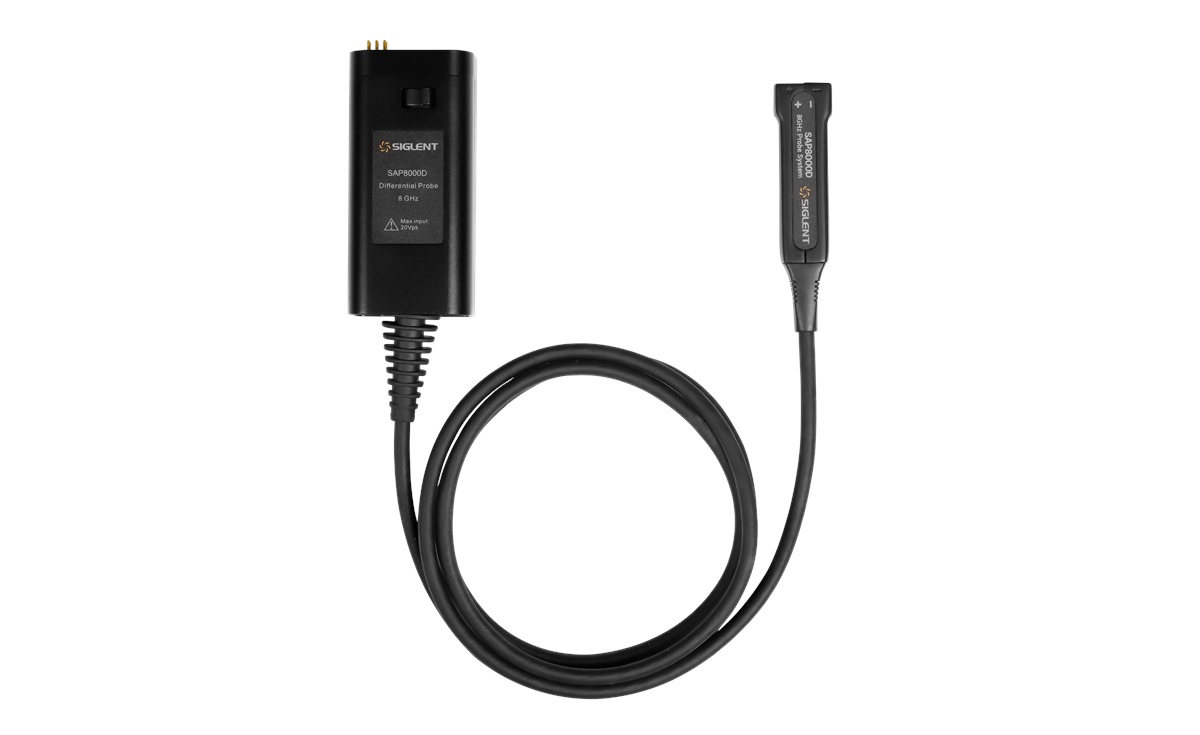

SAP8000D is a high-bandwidth differential active probe known for its features such as high bandwidth, low noise, making it suitable for measuring high-speed signals. Its low input capacitance characteristics ensure minimal load introduced to the measurement system. The SAP8000D active probe utilizes the SAPBus interface and is compatible with oscilloscopes that support the SAPBus interface, such as the SDS7000A series oscilloscopes. The SAP series active probes do not require external power sources as the oscilloscope provides power and communication interface to the active probe through the SAPBus interface. When connected to the oscilloscope, the SAP series active probes allow you to read probe information from the oscilloscope's interface.

The SIGLENT SAP8000D was developed for demanding applications where precision and signal fidelity are critical:

• Ideal for engineers working on high-speed digital circuits who require reliable measurement results.
• Perfect for R&D labs developing modern embedded systems, communication interfaces, and high-speed electronics.
• Optimal for signal integrity analysis—even with fast edges, differential bus systems, and sensitive high-frequency signals.
• Seamlessly integrated into design verification with compatible high-bandwidth SIGLENT oscilloscopes.
• A powerful solution for universities and technical laboratories with professional, sophisticated measurement setups.
• Designed for applications involving USB, Ethernet, high-speed serial interfaces, and differential PCB signals.

This probe is the first choice when conventional passive probes reach their limits—whether due to bandwidth, capacitance, or unwanted signal interference.
