TekBox TBST-100/100/200

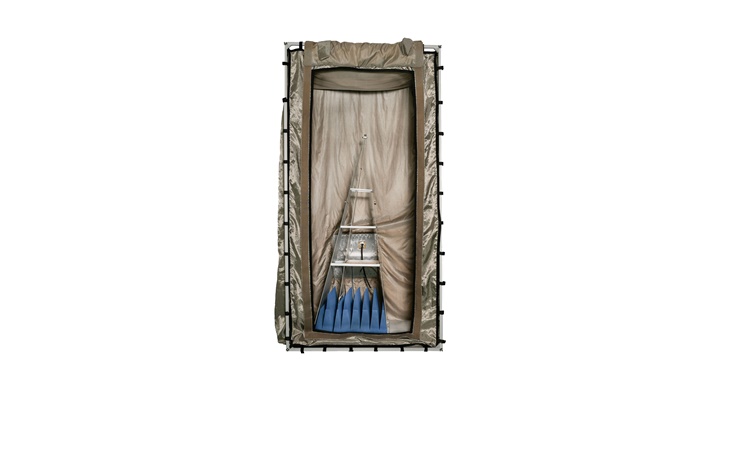

The TBST-100/100/200 shielded tent is designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements. The TBST100/100/200 has a footprint of 100 cm x 100 cm and a height of 200 cm.

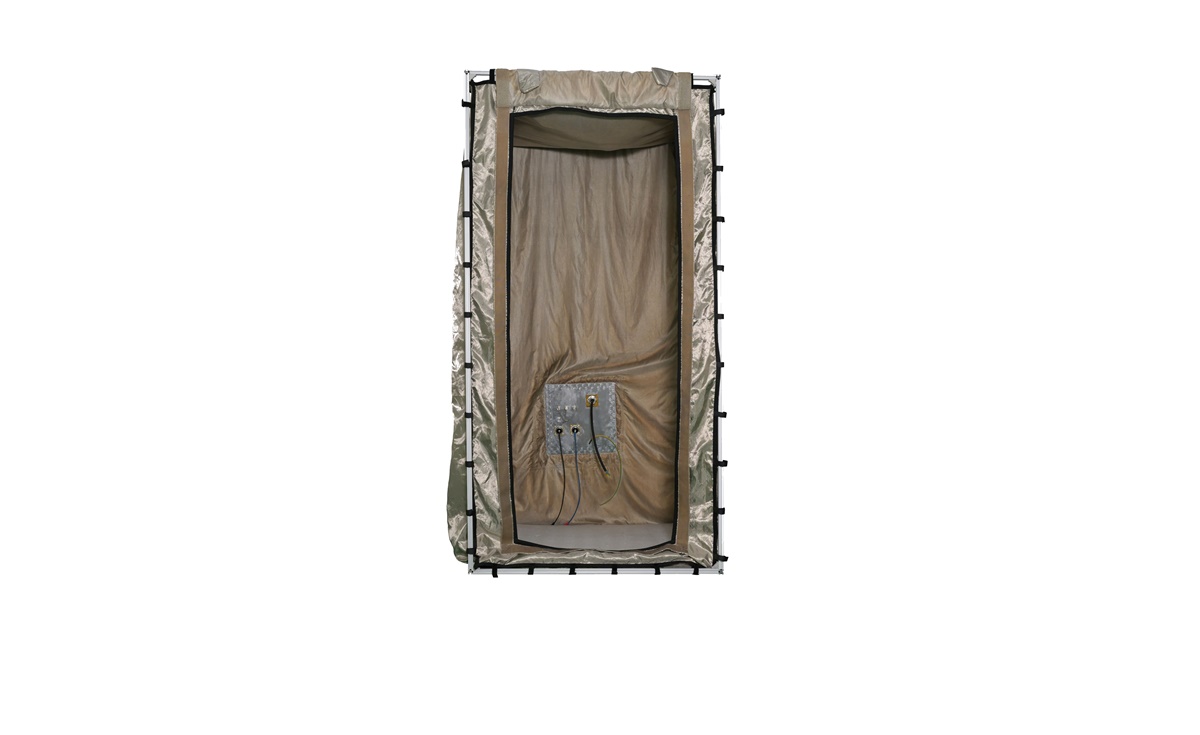

The tent is designed to accommodate the Tekbox GTEM cell TBGTC1. The shielded tent is made of two layers of conductive fabrics. It is supported by 20/20 aluminium profiles. The filter panel at the rear side provides a 240V/10A mains AC filter, two general purpose 240V/10A AC/DC filters and four coaxial feed-through adapters with screw caps. The access opening is sealed with conductive Velcro tape.

Specifications

• Outer dimensions: 104 cm x 101 cm x 204 cm
• Opening dimensions: 130 cm x 46 cm
• Frame: 20 mm x 20mm extruded aluminium profiles
• Shielding: 2 layers of conductive fabrics
• Suspension: Velcro stripes

Filter panel:

• 1 x 240V/10A AC filter; C19 socket
• 2 x 240V/10A DC filter; attached cables with Banana couplers
• 3 x N- female feed through connector with screw caps
• 1 x BNC-Female coaxial feed-through connector with screw caps

Attenuation: ~50 dB in the range 10 MHz to 6 GHz, see chapter 3 Weight: 17kg + 3kg (packaging)

Delivery in 2 packages measuring 55x53x26 cm (10 kg) and 201x11x11 cm (10.7 kg)
