Accessory Rigol M300
17 of 17 Article
The M300 series data acquisition/switch system provides 5 slots to accept any combination of 11 kinds of plug-in modules, including a DMM module, multiple multiplexers, an actuator, a matrix switch module and a multifunction module. With its modular structure, it combines precision measurement capability with flexible signal connections and can provide versatile solutions for the applications that require multiple points or signals to be tested. This can be especially useful in product performance testing during the R&D phase, and automatic test during production process.
It comes with a 4.3 inch high-resolution color LCD, user-friendly interface design, easy-to-use keyboard layout as well as clear key backlight and operation prompts. The M300 is extremly flexible and easy to use. For remote control versatility, it comes with RS232, USB, LAN and GPIB interfaces standard.
Key Applications
- CJC Compensated Temperature measurements
- Voltage and 2-Wire Resistance
- 4 Wire Resistance Measurements
- Current Measurements
- Matrix applications for flexible signal routing
- Mixed and Multifunction Applications (Digital I/O, DAC, Totalizer)
- Actuator Systems (up to 300 Vrms / 2 Arms, 60 VA, without connection to the DMM)
Special Features
- Up to 320 switch channels per mainframe
- Can run independently without PC
- USB data logging
- Interval scanning with storage of up to 100,000 time-stamped readings
- 6½ digit DMM can be inserted into any slot. It also supports multiple measurement functions, including DCV, DCI, ACV, ACI, 2WR, 4WR, PERIOD, FREQ, TEMP (Thermocouple, Thermistor and RTD) and any sensor
- 4.3 inch color LCD with friendly interface and built-in help system
- Powerful PC control and analysis software
- Standard multiple communication interface: USB Device, USB Host, GPIB, LAN(LXI Core Device 2011) and RS232
MC3065 DMM Module
The MC3065 DMM module is used to measure the signals under test. It is based on the DM3068 Multimeter and has 6½ digit reading resolution. The measurement functions include DCV, DCI, ACV, ACI, 2-wire resistance, 4-wire resistance, frequency, period, temperature and any sensor. You can find the technical specifications in chapter 6 of the manual.

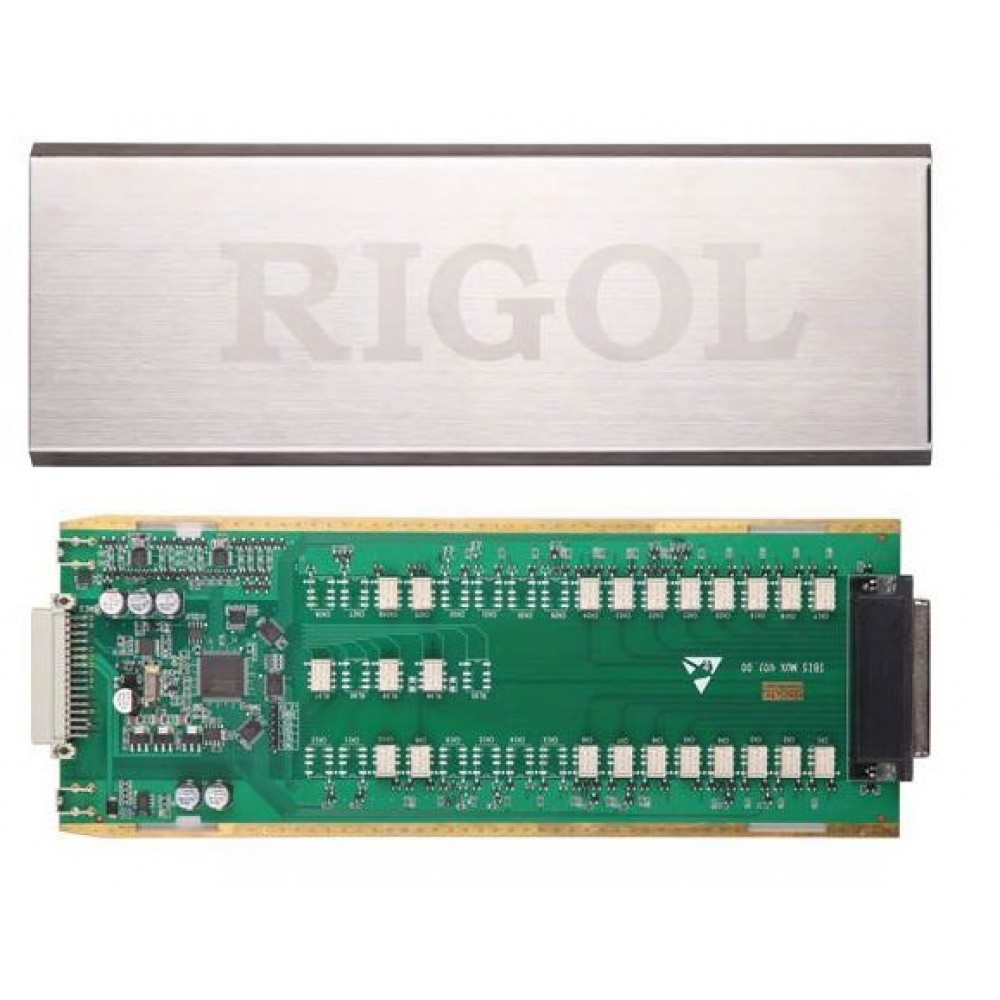

MC3120 20 Channel Multiplexer Module
MC3120 is a 20-channel multiplexer which is divided into two banks of 10 two-wire channels (HI and LO) each and can be used for 2-wire and 4-wire connections. When making 4-wire resistance measurement, the instrument automatically pairs channel n with channel n+10. MC3120 is used with the external terminal block M3TB20 which has a built-in thermocouple reference junction. fitting terminal box: M3TB20
MC3132 32 Channel Multiplexer Module
The MC3132 is a 32-channel multiplexer, which is divided into two banks of 16 two-wire channels (HI and LO) each and can be used for 2-wire and 4-wire connections. When making 4-wire resistance measurement, the instrument automatically pairs channel n with channel n+16. It is used with the external terminal block (M3TB32) which has a built-in thermocouple reference junction. fitting terminal box: M3TB32
MC3164 64 Channel Multiplexer Module
The MC3164 is a 64-channel single-ended multiplexer, which is divided into two banks of 32 single-ended channels (HI only, the 32 channels has a common LO terminal) each and cannot be used for 4-wire connection. The MC3164 is used with the external terminal block (M3TB64) which has a built-in thermocouple reference junction. fitting terminal box: M3TB64
MC3324 20+4 Channel Multiplexer Module
The MC3324 is a mixed multiplexer with 20 voltage channels and 4 current channels. The 20 voltage channels (from channel 01 to channel 20) are divided into two banks of 10 two-wire channels each and can be used for 2-wire and 4-wire connections. When making 4-wire resistance measurement, the instrument automatically pairs channel n with channel n+10. 4 current channels (from channel 21 to channel 24) are used to measure DC current or AC current. MC3324 is used with the external terminal block (M3TB24) which has a built-in thermocouple reference junction. fitting terminal box: M3TB24
MC3416 16 Channel Actuator Module
The MC3264 is a 64-channel single-ended multiplexer, which is divided into two banks of 32 single-ended channels (HI only, the 32 channels has a common LO terminal) each and cannot be used for 4-wire connection. The MC3164 is used with the external terminal block (M3TB64) which has a built-in thermocouple reference junction. It is a 64-channel single-ended reed multiplexer and can provide relatively faster switching speed as the MC3164. fitting terminal box: M3TB16
MC3534 Multifunction Module
The MC3534 is a multifunction module which combines four 8-bit digital input/output (DIO) channels, four 32-bit totalizer (TOT) channels and four analog output (DAC) channels. fitting terminal box: M3TB34
MC3648 Matrix Switch Module
The MC3648 is a 4×8 matrix switch and contains 32 two-wire crosspoints. Each crosspoint relay has its own unique channel label representing the row and column. For example, channel 24 represents the crosspoint connection between row 2 and column 4. This module does not connect to DMM. You can close multiple channels and connect multiple inputs to multiple outputs at the same time. fitting terminal box: M3TB48Downloads
