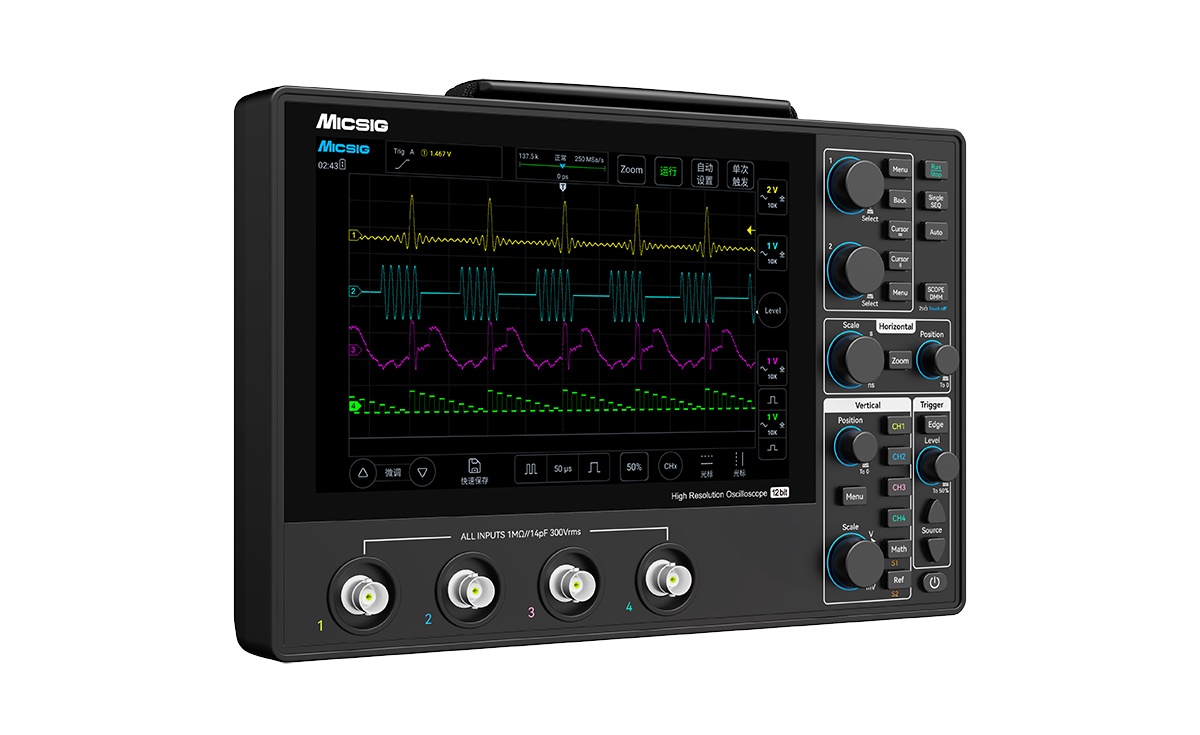

Micsig MHO14-100N

The Micsig MHO14-100N represents a significant development in the field of oscilloscopes, offering unparalleled portability and high-precision measurement capabilities. This professional-grade instrument boasts a 12-bit ADC, a bandwidth of up to 200 MHz, four analogue channels, a real-time sampling rate of 1 GSa/s, and a storage depth of 110 Mpts. The device's high-performance parameters ensure accuracy and provide a solid foundation for in-depth signal analysis.

Its compact design, with a thickness of only 3.1 cm, allows for easy placement in a backpack, facilitating efficient testing in various locations.

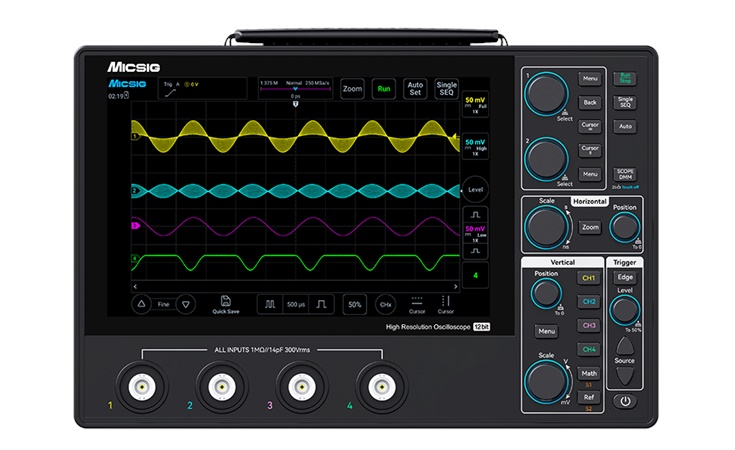

The device is equipped with an 8-inch high-definition anti-glare touch screen with a resolution of up to 1280x800, offering users a delicate and clear picture and a responsive touch, thus providing them with an optimal operating experience.

The device also has a variety of interfaces such as USB 3.0 host, USB Type-C, LAN, HDMI, trigger output etc. Thanks to the digital trigger system, trigger jitter is very low and triggering is very precise. In addition, the oscilloscope supports serial bus triggers and bus decoding of I²C, SPI, UART, CAN and LIN.

You will find the specifications in the MHO14N datasheet.

12-bit Vertical Resolution

The MHO1 series has 12-bit high-resolution ADC with a quantization level of up to 4096, which is 16 times that of traditional 8-bit ADC, helping users to observe waveform details more comprehensively and clearly.

Most friendly UI

User-friendly UI for quick start Three operation modes: Fully touchscreen, physical buttons and knobs, and hybrid operation; equipped with the SigTest UI, a specialized instrument system evolved from thousands of engineer user suggestions, all operations can be completed swiftly, simplifying complex tasks.

Built-in Battery for Ultimate Portability

Despite its ultra-thin design, the MHO1 series features a soft rubber protective casing that not only offers a comfortable grip but also excellent protective capabilities. Equipped with a 16000mAh high-capacity, long-life lithium-ion battery, it can withstand over 1000 charge-discharge cycles. Additionally, it supports charging via power banks, completely eliminating worries about battery life and making testing work more worry-free.

Deep memory and segmented storage acquisition

Standard segmented storage divides limited storage space into multiple small segments, gathering multiple trigger events within a single storage space. With convenient analysis and viewing functions, it allows for both integrated and individual display, making analysis and positioning more accurate and efficient, turning "finding a needle in a haystack" into a possibility.

Ultra-thin 3.1cm Body

The MHO1 series has a body thickness of only 3.1cm, which is very compact and small, easily fitting into your backpack for efficient testing anytime, anywhere.
