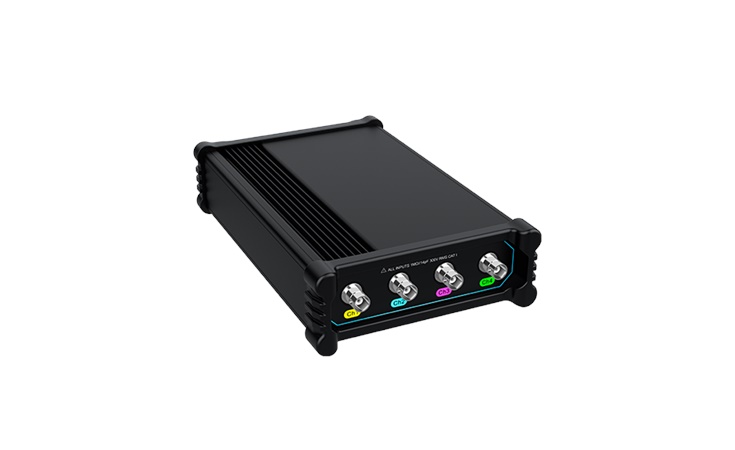

Micsig VTO2004
- Friendly UI, easy to use
- Small size, light weight, perfect for field test
- 7500 mAh Li-ion battery for day-long use
- Deep memory depth, capture more signal details
- Support High/Low bandwidth filtering
- 31 types of automated measurements
| Model | VTO2004 |
|---|---|
| Bandwidth | 200 MHz |
| Analog channels | 4 |
| Rise Time | ≤ 1.8 ns |
| Real-time sampling rate | 1 GSa/s |
| Memory Depth | 50 Mpts |
| DC Gain Accuracy | ≤ 2 % |
| Input Impedance | 1 MΩ ± 1 %, 14 pF |
| Power supply | USB Type-C ，DC power |
| Optional Battery | 7.4 V、7,500 mAh Lithium-ion battery |
| Dimensions | 140 x 215 x 52 mm |
| Net Weight | 640 g |
Low Cost, New Experience
The VTO series oscilloscope is a low cost split-type handheld oscilloscope. Bandwidth up to 200MHz, with 4 channels, 1GSa/s sampling rate, and 50Mpts memory depth. Friendly UI and rich measurement options provide you a brand-new oscilloscope experience.

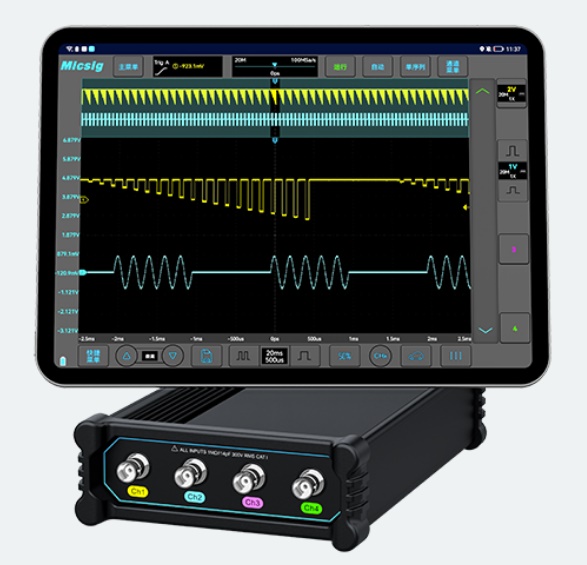

Easy Connections
The VTO series can be used with any Android platform or device via USB-C, such as smartphones, tablet devices, or personal computers with Android system.
Low noise floor
The noise of MHO 3 series is less than 80 μVrms under 500 MHz full bandwidth, allow engineers accurately capture weak but important signals during daily circuit debugging.
Large Battery Powered
The optional 7500 mAh lithium battery enables up to 24-hour field testing, the power-off lock makes sure of secure transport.

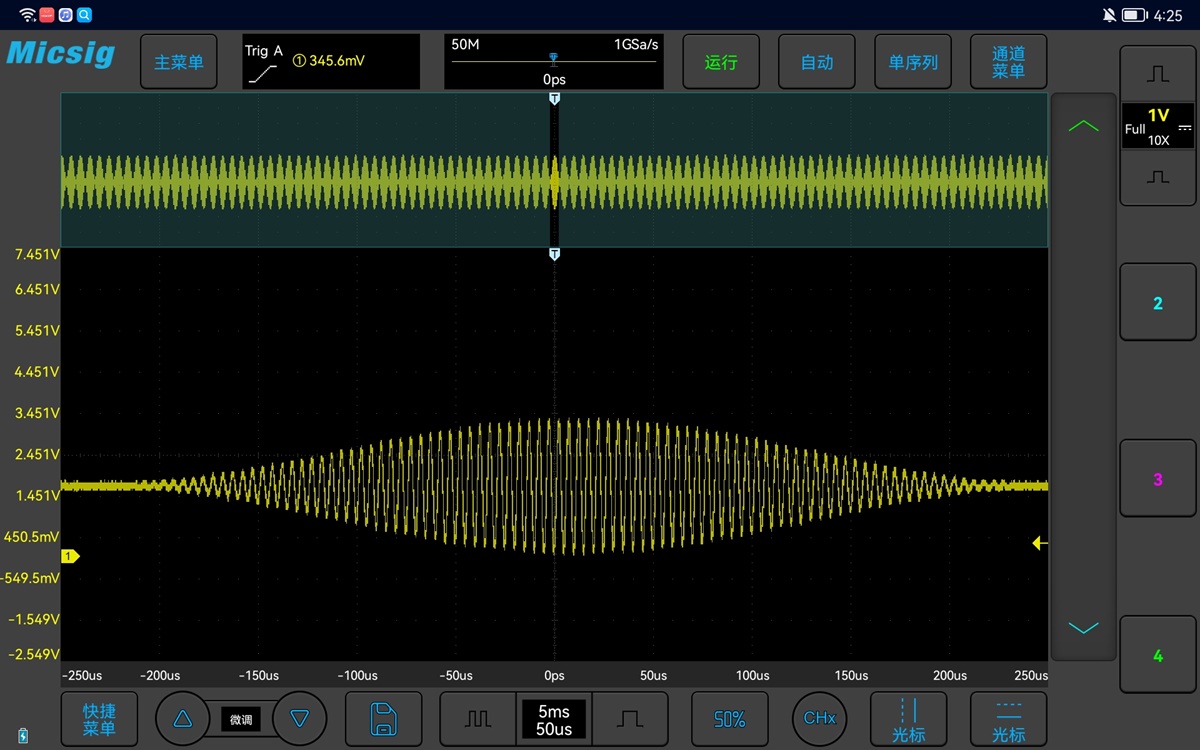

Deep memory
Up to 50 Mpts memory depth, combined with Zoom technology, display every signal details.

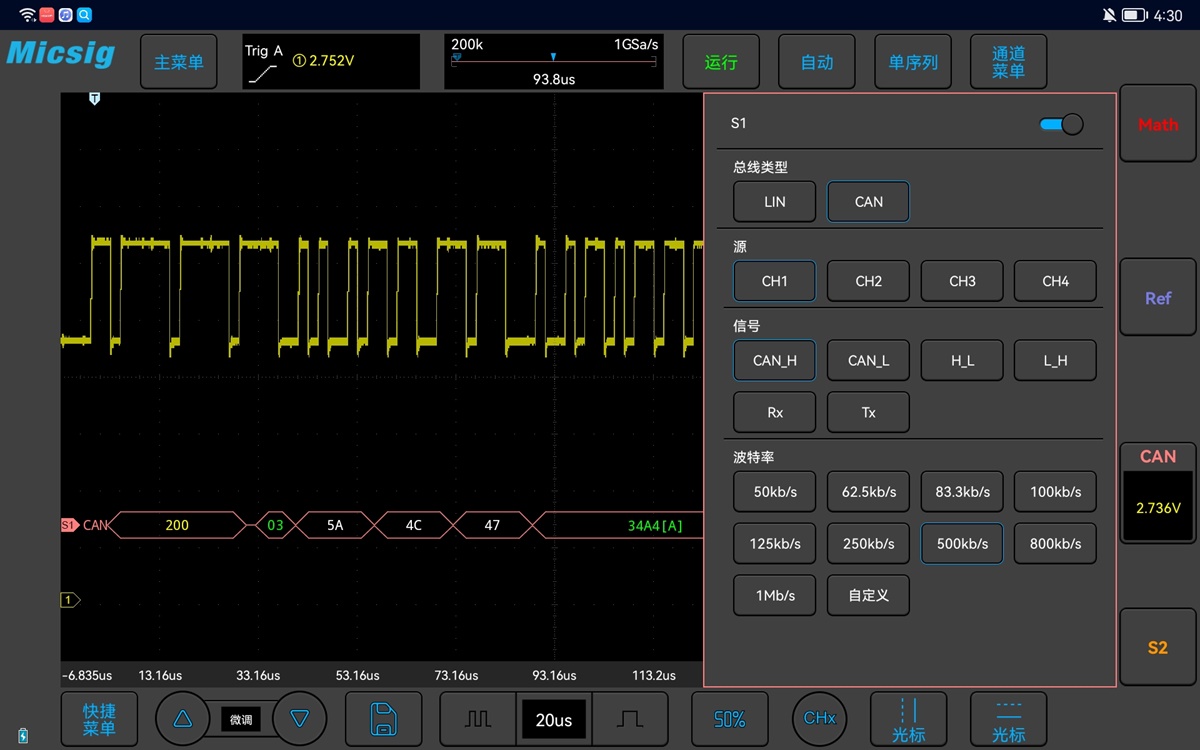

Serial Bus Decode
Support CAN, LIN serial bus decode

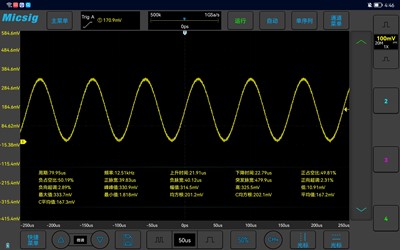

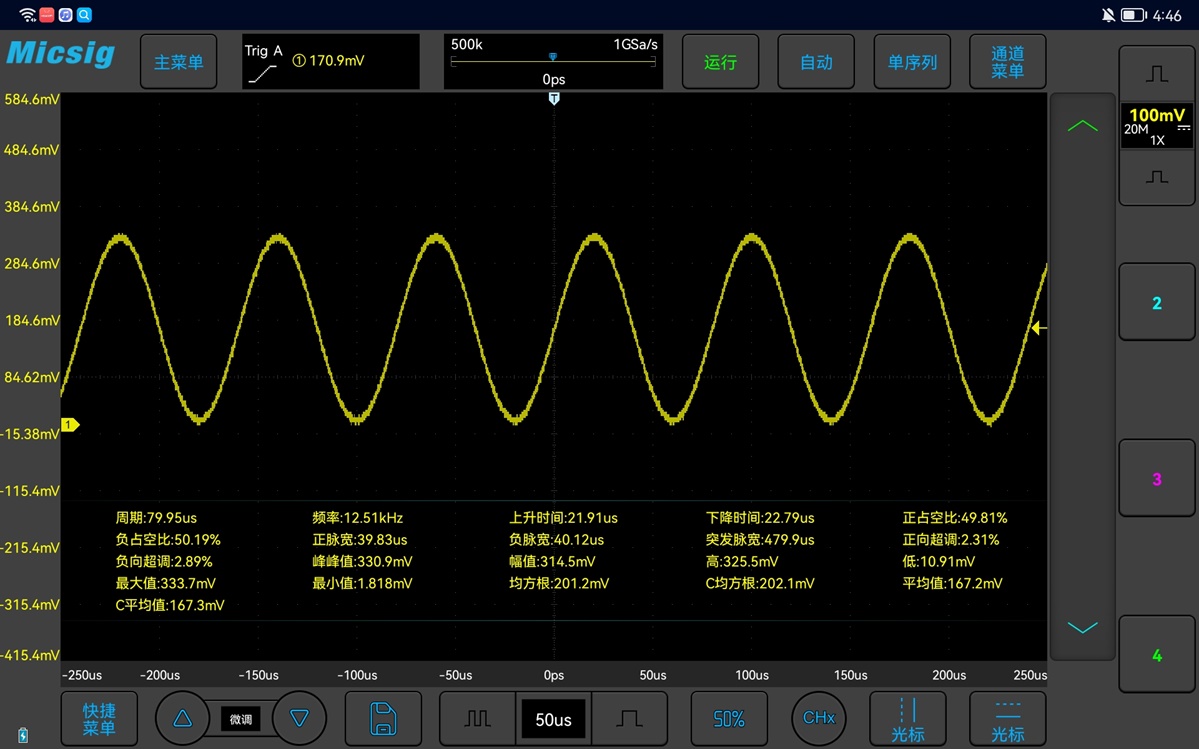

Auto Measurements
Supports 31 types of automated measurements, one key to select or clear.
Downloads
Datasheet
VTO2004 Data sheet
Language: English
File Size: 5.95 MiB
Release Date: 02.01.2024
O/S: Android
Manual
VTO2004 quick guide
Language: English
File Size: 413.76 KiB
Release Date: 02.01.2024
O/S: Android
