Rigol DHO1074

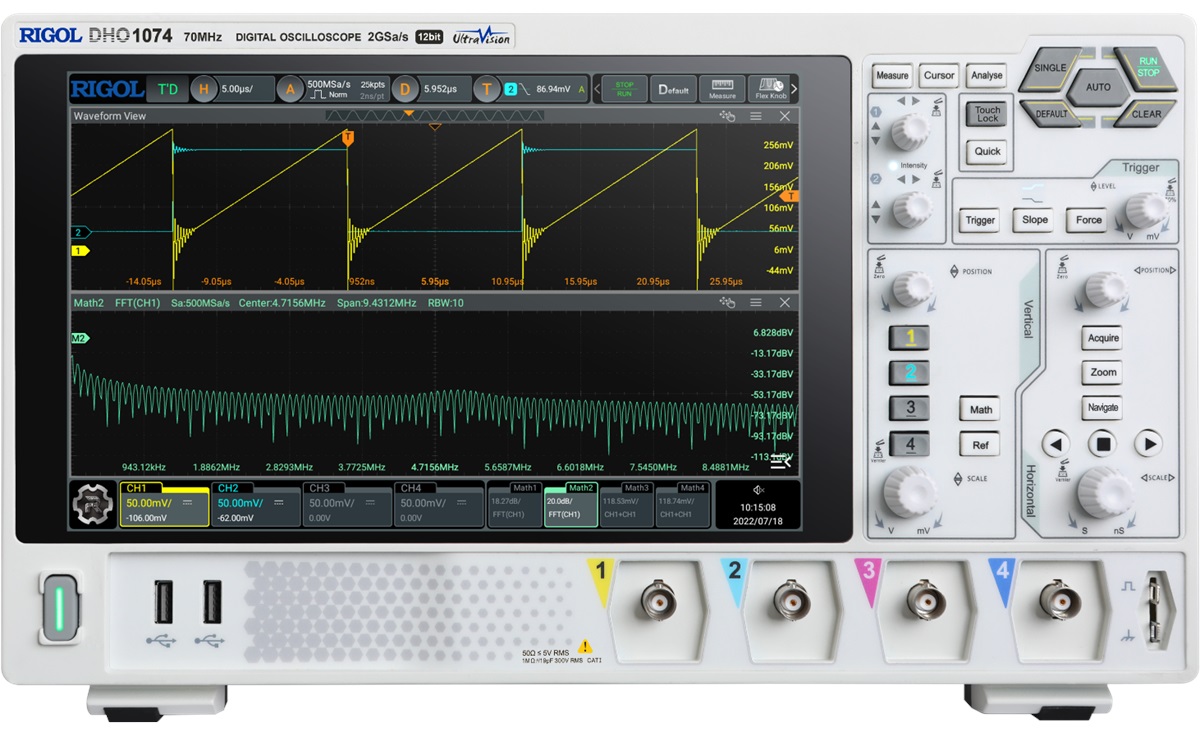

Picture: Rigol DHO1074

4 channel oscilloscope with 70 MHz Bandwidth, 2 GSa/s sample rate, 12 Bit A/D converter, 50 Mpts memory depth (100 Mpts optional) and a 25.7 cm touchdisplay 1280x800 pixel. Serial decoders for I²C, SPI, RS232/UART, CAN and LIN are already included!

3 years warranty

Nr: DHO1074

with FREE shipping within the EU!
Shipping costs outside EU

in 21-40 days in stock.

€ 999.- net (VAT Details)

€ 1,188.81 incl. 19% VAT

Description

The DHO1000 series digital oscilloscope is designed to meet the requirements for the design, debug, and test of the mainstream oscilloscope market.

Adopting the brand-new chipset "Centaurus" developed by RIGOL, this series achieves a fast waveform capture rate of 1,500,000 wfms/s with the UltraAcquire mode, 100 Mpts memory depth, 12-bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements, bringing extraordinary T&M experience for you.

The Rigol DHO1074 is equipped with a clear 10.1" touch display with 1280*800 pixel.

Features	DHO1000
Channel	2 - 4
Bandwidth	70 - 200 MHz
Sample rate	1 channel with 2 GSa/s 2 channel with each 1 GSa/s 4 channel with each 500 MSa/s
Waveform capture rate	1.500.000 wfms/s
Memory depth (standard)	1 channel with 50 Mpts 2 channel with each 25 Mpts 4 channel with each 12.5 Mpts
Memory depth (max. via option)	1 channel with 100 Mpts 2 channel with each 50 Mpts 4 channel with each 25 Mpts

DHO1000	Bandwidth	Channel	Rise time (typ.)
DHO1072	70 MHz (upgradable)	2	≤ 5 ns
DHO1074	70 MHz (upgradable)	4	≤ 5 ns
DHO1102	100 MHz (upgradable)	2	≤ 3.5 ns
DHO1104	100 MHz (upgradable)	4	≤ 3.5 ns
DHO1202	200 MHz	2	≤ 1.75 ns
DHO1204	200 MHz	4	≤ 1.75 ns

You will find the specifications of the DHO1000 series here.

Picture: 12-bit ADC

12-bit ADC

High resolution & offset. Low noise signal path. More accurate measurements.

12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

Picture: 10.1-inch HD Touchscreen

10.1-inch HD Touchscreen

25.7 cm (10.1") high-definition touchscreen for more convenient human-machine interaction.

Picture: UltraAcquire Condensation Acquisition Mode

UltraAcquire Condensation Acquisition Mode

The DHO1000 provides UltraAcquire condensation acquisition mode, up to 1,500,000wfms/s high waveform capture rate, do not miss any abnormal waveform.

Picture: Flex Knob

Flex Knob

Double multi-function knob design, no more complicated switching steps of a single knob, and achieve more efficient interaction.

Picture: Photoelectric Encode

Photoelectric Encode

Standard photoelectric encoder, 34-year long service life, protect your fixed assets.

Accessories

Accessories, Rigol DHO1000

5 of 5 Article

Sorting

Rigol DHO1000-BWU7T10 Upgrade 70 MHz>100 MHz — Be the first to write a review
Bandwidth Upgrade from 70 MHz to 100 MHz for models DHO1000 series. For this upgrade the latest firmware is required.

Rigol DHO1000-BWU7T20 Upgrade 70 MHz>200 MHz — Be the first to write a review
Bandwidth Upgrade from 70 MHz to 200 MHz for models DHO1000 series. For this upgrade the latest firmware is required.

Rigol DHO1000-BWU10T20 Upgrade 100 MHz>200 MHz — Be the first to write a review
Bandwidth Upgrade from 100 MHz to 200 MHz for models DHO1000 series. For this upgrade the latest firmware is required.

Rigol DHO1000-RLU-01 Speichererweiterung 100 Mpts — Be the first to write a review
Optional 100 Mpts memory option for the DHO1000 series devices. Simple activation via software code (memory is already build-in).

Batronix MSO Demo Board — 5 Reviews
Training and demonstration board for oscilloscopes – perfect for training and educational purposes.

The board features a variety of signals such as SPI, I2C, UART, CAN, CAN-FD, LIN, Manchester, and a parallel bus. It includes an RF test section, an RF output, and a demo filter for Bode plots. An integrated function generator provides sine, square, triangle, and ramp signals, with adjustable frequencies ranging from 0.2 Hz to 10 kHz in 16 steps. Additionally, it can output test signals like sweep, burst, AM modulation, PWM, noise, error, and much more.

Batronix MSO Demo Board — 5 Reviews
Training and demonstration board for oscilloscopes – perfect for training and educational purposes.

The board features a variety of signals such as SPI, I2C, UART, CAN, CAN-FD, LIN, Manchester, and a parallel bus. It includes an RF test section, an RF output, and a demo filter for Bode plots. An integrated function generator provides sine, square, triangle, and ramp signals, with adjustable frequencies ranging from 0.2 Hz to 10 kHz in 16 steps. Additionally, it can output test signals like sweep, burst, AM modulation, PWM, noise, error, and much more.
