Keysight E36312A

Be the first to write a review

Programmable DC power supply with three output channels (+6 V / 5 A, +25 V / 1 A, +25 V / 1 A, DC, max 80 W).

This article is no longer available.

Description

The triple output E36300 Series gives you the performance of system power supplies at an affordable price. There are three models available in the series:

E36311A: This 80 W model offers a simplified user experience and the lowest price of the series. Some of the key differences include channels 2 and 3 are configured in tracking mode only, USB interface only, 2-wire sensing. This model does not offer data logging, output sequencing, list mode and auto parallel/serial voltage or current boost.

E36312A: This 80 W model offers the complete feature set. Channel 2 and 3 are electrically isolated independent channels. Some of the key extended features include; USB, LAN and optional GPIB interface, 2 or 4-wire sensing, data logging, output sequencing, list mode, and auto parallel/serial.

E36313A: This 160 W model offers twice the current of the other models with the same extended feature set as the E36312A model.

Low output ripple and noise
Excellent programming/readback accuracy
Excellent line/load regulation: 0.01%
2-wire or 4-wire remote sense
Over voltage, over current, and over temperature protection
Three independent power supplies in one box
Low acoustic noise
Auto series/parallel connections

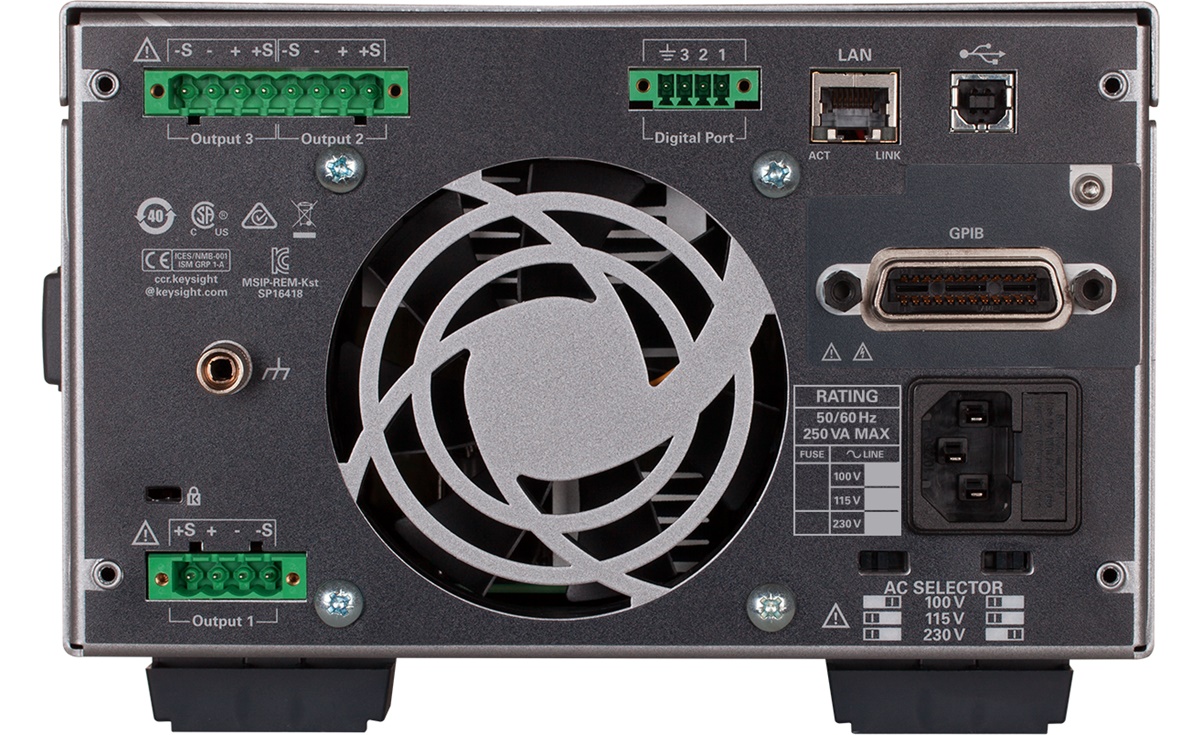

Front and rear output terminal

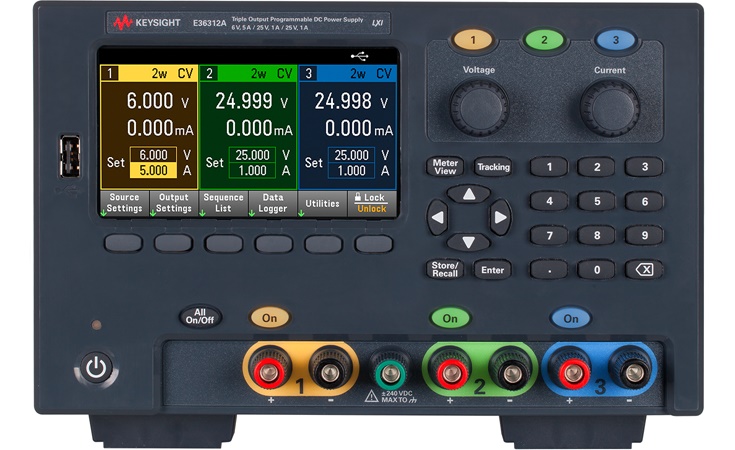

4.3-inch LCD color display
Color-coded channels
Individual knobs for voltage and current
E3631A code compatible
LAN (LXI), USB and GPIB (optional)
Data logging
Output sequencing
LIST mode
Low current range measurement

Models	E36311A	E36312A	E36313A
channel	0 to 6 V / 0 to 5 A (80 W max)	0 to 6 V / 0 to 5 A (80 W max)	0 to 6 V / 0 to 10 A (160 W max)
channel	0 to 25 V / 0 to 1 A (80 W max)	0 to 25 V / 0 to 1 A (80 W max)	0 to 25 V / 0 to 2 A (160 W max)
channel	0 to 25 V / 0 to 1 A (80 W max)	0 to 25 V / 0 to 1 A (80 W max)	0 to 25 V / 0 to 2 A (160 W max)
Max. Total Power	80 W	80 W	160 W
Series mode voltage		50 V	50 V
Parallel mode current		2 A	4 A
