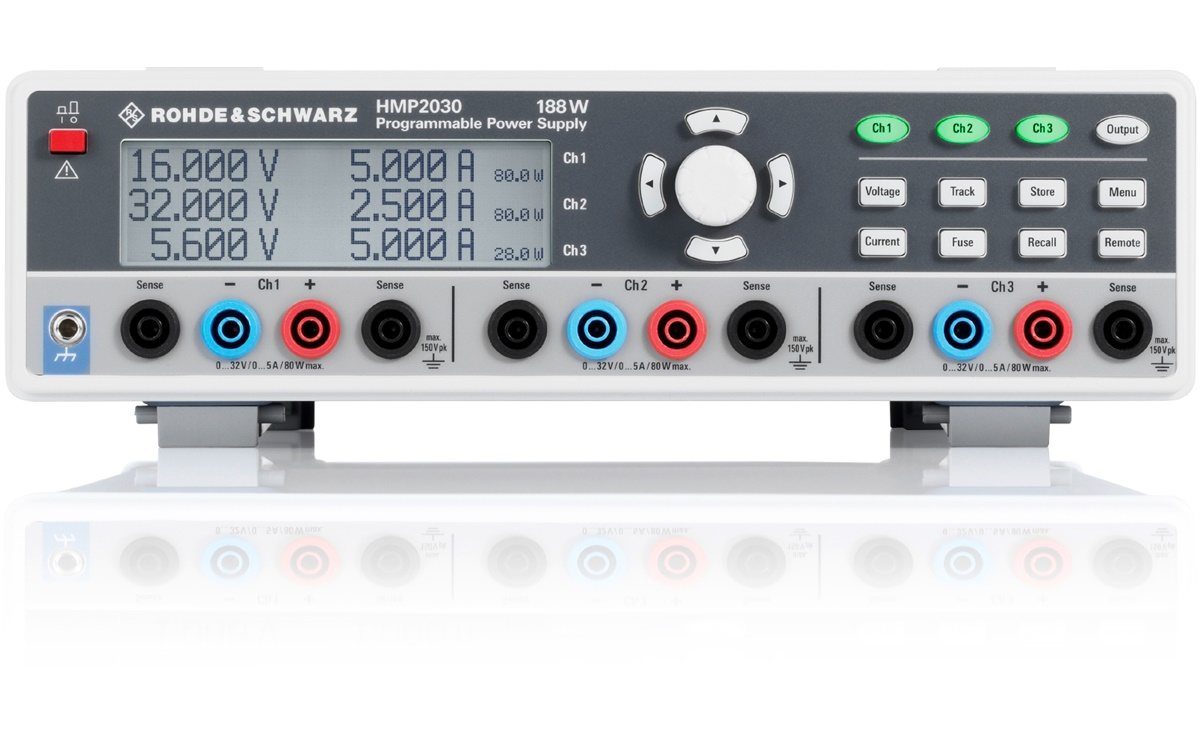

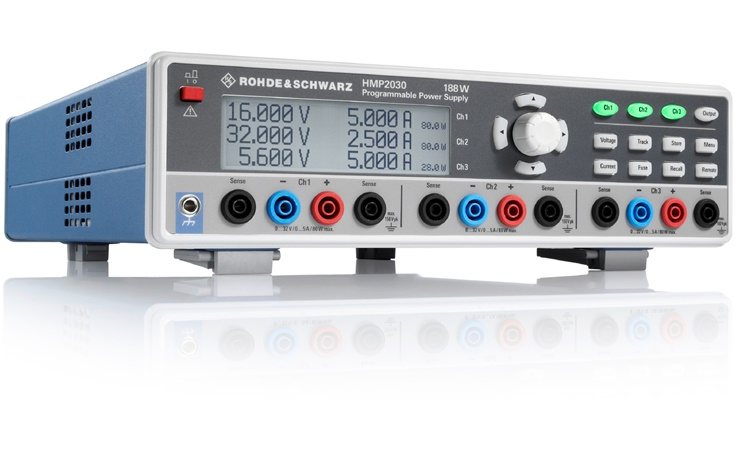

R&S® HMP2030

Be the first to write a review

high performance power supply with 3 output (3x 0-32 V/0-5 A, max. 188 W total), with sense connectors and a resolution of 1mV/0.1mA.

Attention: LAN and USB interface must be purchased separately (R&S® HO732)

3 years warranty

Nr: 3629.6718.03

with FREE shipping within the EU!
Shipping costs outside EU

in Stock

€ 1,930.- net (VAT Details)

€ 2,296.70 incl. 19% VAT

Description

The four power supply units R&S® HMP2020, R&S® HMP2030, R&S® HMP4030 and R&S® HMP4040 offer you the choice between 2, 3 and 4 channels with a total operating performance of 188 or 384 watt. Depending on the model, you have up to 80 or 160 watt available per channel.

Power supply units in industrial production environments are often found in 19” racks. The R&S® HMP series instruments are very suitable for this use as all models can be integrated into 19” racks with the rack mounting kits R&S® HZ42 (for R&S® HMP20x0 instruments) and R&S® HZP91 (for R&S® HMP40x0 instruments). Additionally, all front panel connectors, including SENSE lines, are also located at the back panel of the instrument.

Models	HMP2020	HMP2030	HMP4030	HMP4040
channel	0 to 32 V / 0 to 10 A (160 W max)	0 to 32 V / 0 to 5 A (80 W max)	0 to 32 V / 0 to 10 A (160 W max)	0 to 32 V / 0 to 10 A (160 W max)
channel	0 to 32 V / 0 to 5 A (80 W max)	0 to 32 V / 0 to 5 A (80 W max)	0 to 32 V / 0 to 10 A (160 W max)	0 to 32 V / 0 to 10 A (160 W max)
channel		0 to 32 V / 0 to 5 A (80 W max)	0 to 32 V / 0 to 10 A (160 W max)	0 to 32 V / 0 to 10 A (160 W max)
channel				0 to 32 V / 0 to 10 A (160 W max)
Max. Total Power	188 W	188 W	384 W	384 W

Special Features

Low residual ripple due to linear postregulators
Realtime voltage, current and power values
High setting and readback resolution: 1 mV and 0.1/0.2/1.0 mA (depending on current and model)
FuseLink (electronic fuse) freely combinable for all channels
FuseDelay tunable up to 250 ms
EasyArb function directly programmable on device
PC software (free of charge) for easy generation of user-defined waveforms
Independently adjustable overvoltage protection (OVP) for each channel
Advanced parallel and serial operation via V/I tracking
Front connectors: 4 mm (0.16 in) safety sockets
Rear connectors for all channels, including sense
