Siglent SPS5041X

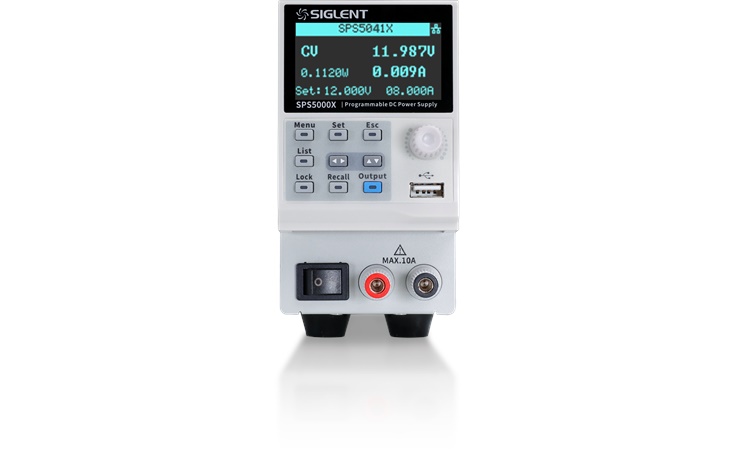

SPS5041X Power Supply by Siglent, Front view
SPS5041X Power Supply by Siglent, Front viewSeries SPS5000X Power Supply by Siglent, Side viewSeries SPS5000X Power Supply by Siglent, Rear view
1 Review

Programmable DC power supply with one output channel with a max. output power of 360 W. +40 V / 30 A.

3 years warranty

No.: SPS5041X

with FREE shipping within the EU!
Shipping costs outside EU
in Stock
€ 839.- net (VAT Details)
€ 998.41 incl. 19% VAT

Siglent SPS5000X

The SPS5000X Series is a programmable Switching DC Power supply series that provides a wide range of output power using single channel and multi channel output configuration s coupled with constant power capability. The series of power supplies include 16 models with voltages to 160 VDC and power to 1080 W.

The SPS5000X supplies can be connect ed in series 2 units or in parallel 3 units to meet the requirements of 0-320V and 0-270A, with a maximum combin ed power of 3240W.

The SPS5000X Series has a high brightness 2.4 inch OLED display, a user friendly human computer interface that enable easy control and performance monitoring.

The SPS5000X provides high resolution voltage and current settings, adjustable slew rates, list sequence programming from the front panel or over the standard LAN/ USB interface, analog control, and over voltage, current, power, and temperature protection .

These features mak e the series an ideal choice for a variety of demanding markets , including Commercial Industrial Education, Energy and Power Generation, laboratory general testing, the LED lighting industry, and automotive electronics.


Models
  1. channel
  1. channel
  1. channel
 Max. Total Power
SPS5041X 0 to 40 V / 0 to 30 A 360 W
SPS5042X 0 to 40 V / 0 to 60 A 720 W
SPS5043X 0 to 40 V / 0 to 90 A 1080 W
SPS5044X 0 to 40 V / 0 to 30 A 0 to 40 V / 0 to 30 A 720 W
SPS5045X 0 to 40 V / 0 to 30 A 0 to 40 V / 0 to 30 A 0 to 40 V / 0 to 30 A 1080 W
Models
  1. Channel
  1. Channel
  1. Channel
 Max. Total Power
SPS5051X 0 to 50 V / 0 to 10 A 180 W
Models
  1. Channel
  1. Channel
  1. Channel
 Max. Total Power
SPS5081X 0 to 80 V / 0 to 15 A 360 W
SPS5082X 0 to 80 V / 0 to 30 A 720 W
SPS5083X 0 to 80 V / 0 to 45 A 1080 W
SPS5084X 0 to 80 V / 0 to 15 A 0 to 80 V / 0 to 15 A 720 W
SPS5085X 0 to 80 V / 0 to 15 A 0 to 80 V / 0 to 15 A 0 to 80 V / 0 to 15 A 1080 W
Models
  1. Channel
  1. Channel
  1. Channel
 Max. Total Power
SPS5161X 0 to 160 V / 0 to 7.5 A 360 W
SPS5162X 0 to 160 V / 0 to 15 A 720 W
SPS5163X 0 to 160 V / 0 to 22.5 A 1080 W
SPS5164X 0 to 160 V / 0 to 7.5 A 0 to 160 V / 0 to 7.5 A 720 W
SPS5165X 0 to 160 V / 0 to 7.5 A 0 to 160 V / 0 to 7.5 A 0 to 160 V / 0 to 7.5 A 1080 W

You will find the specifications of the SPS5000X series here.

Downloads

Datasheet

Adobe PDF

SPS5000X Data sheet

Language: English
File Size: 1.05 MiB
Release Date: 01.07.2021

Manual

Adobe PDF

SPS5000X Manual

Language: English
File Size: 1.96 MiB
Release Date: 01.07.2021
