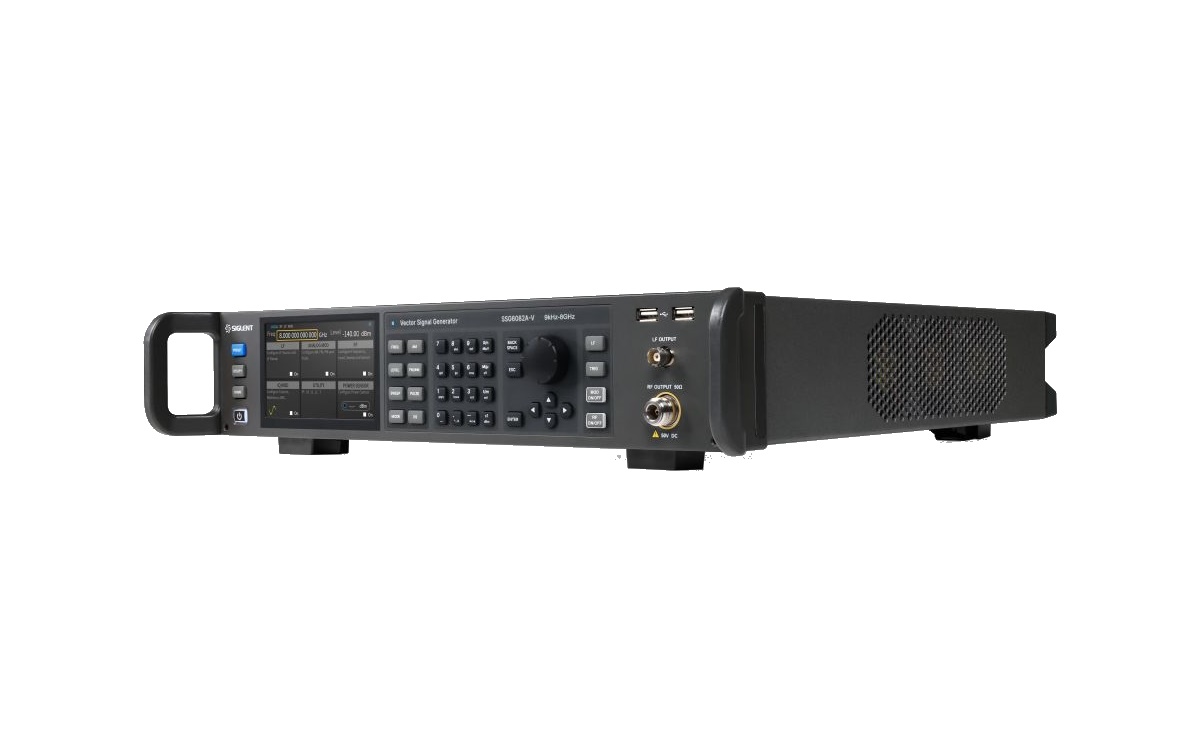

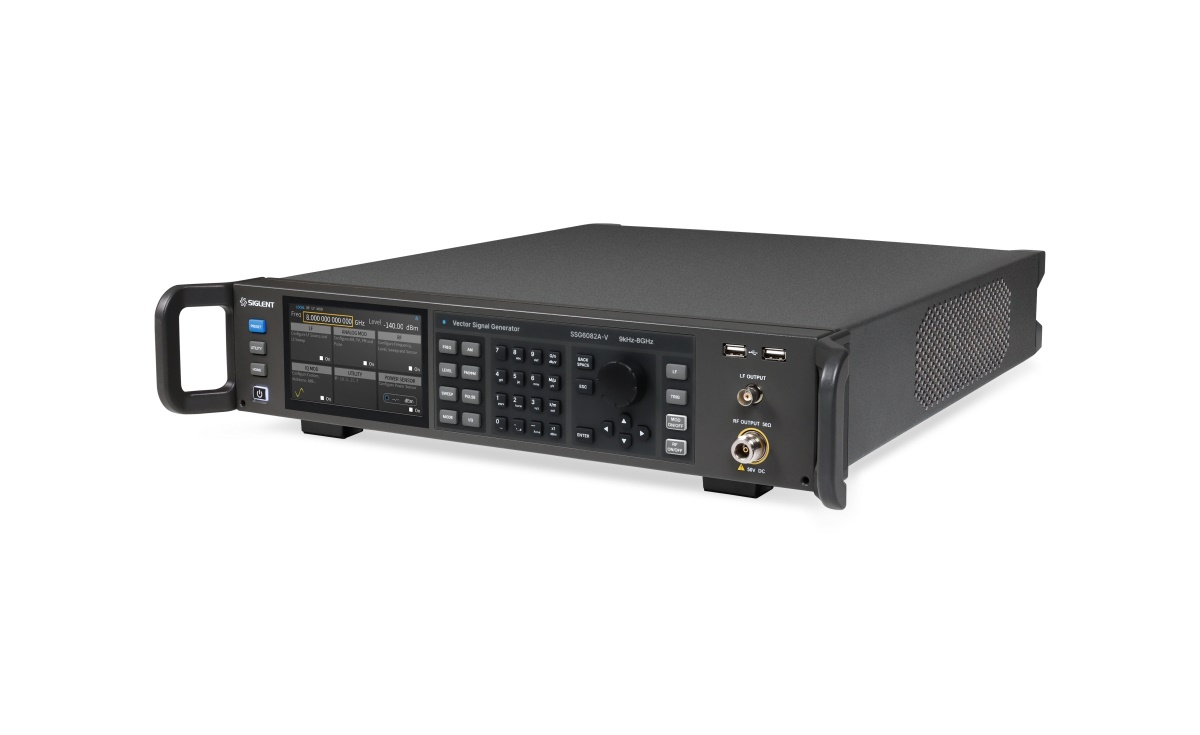

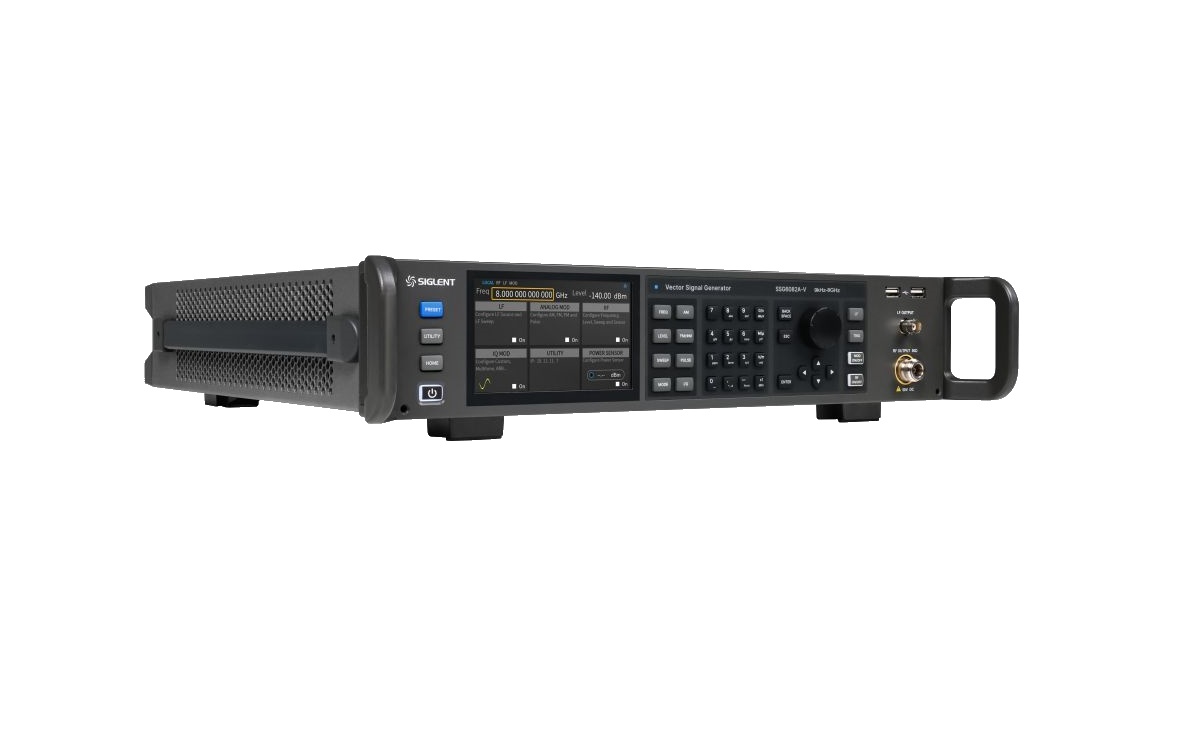

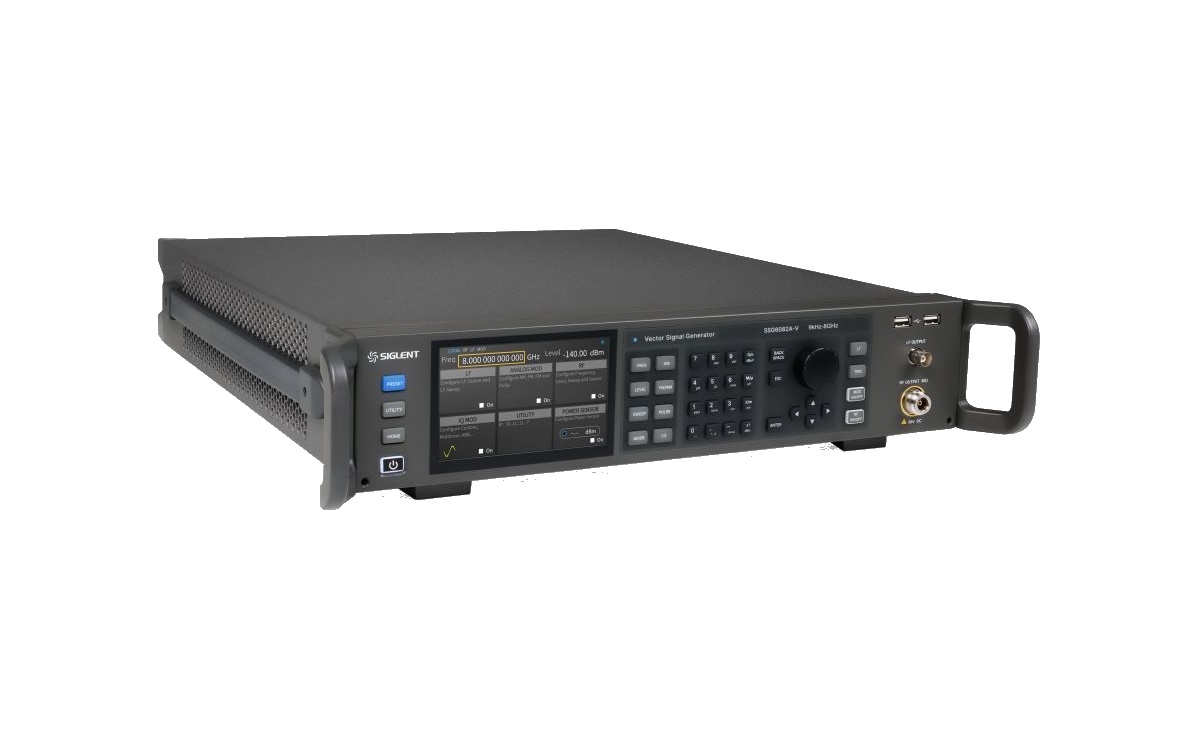

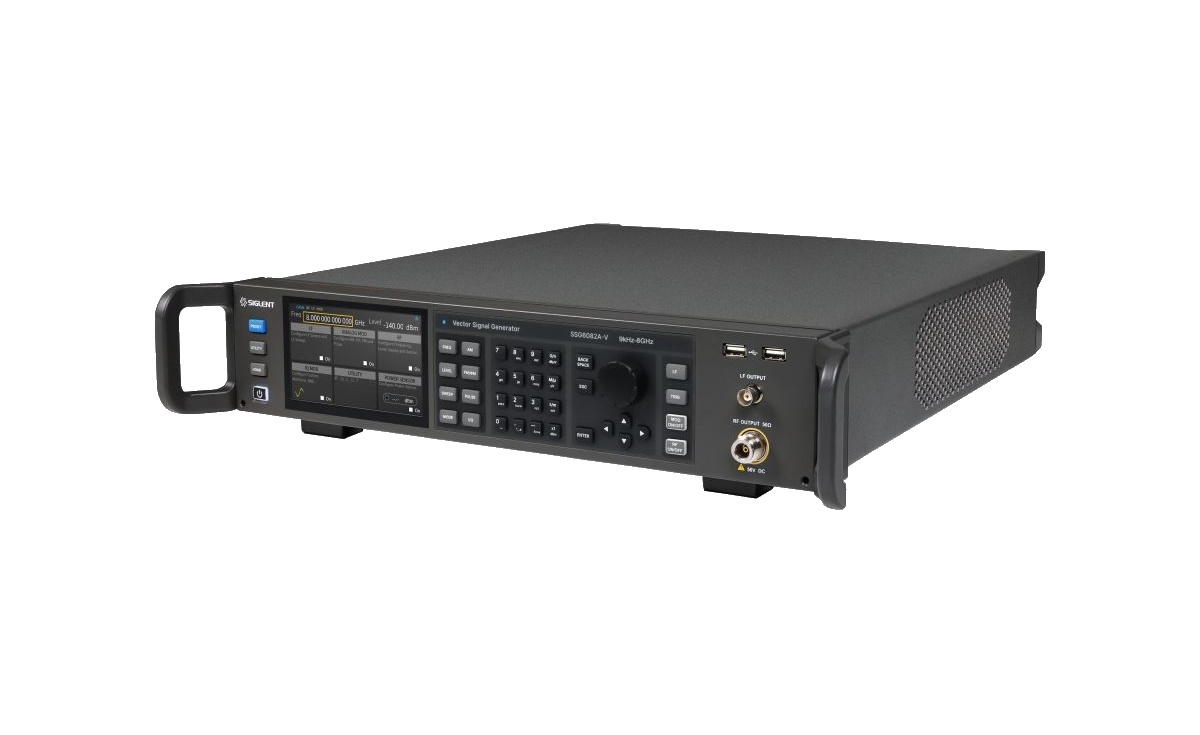

Name: Siglent SSG6082A-V
Brand: Siglent
Availability: BackOrder

Innovative Tools. Excellent Service.

service@batronix.com

+49 4342 90786-30

Private Customer | Germany | EN

Description

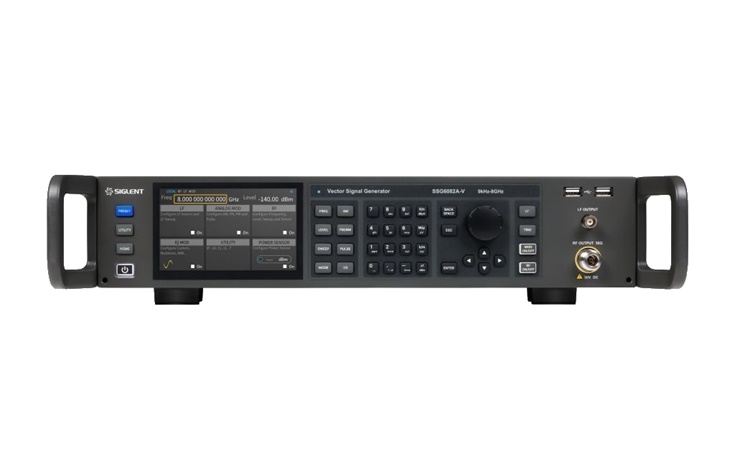

The output frequency range of the Siglent SSG6082A-V vector signal generator extends from:

9 kHz to 8 GHz (CW mode)
10 MHz to 8 GHz (IQ mode)

The device offers analogue AM/FM/PM modulation, pulse modulation and pulse sequence generator, power meter control and other functions. It has an internal IQ baseband source with a bandwidth of 500 MHz, which, in combination with the SigIQPro PC software, can generate common digitally modulated signals and communication protocol signals such as 5G NR, WLAN, LTE, BLUETOOTH and IOT. The device is designed for communications, aerospace, national defence and other sectors. It is suitable for various application scenarios such as R&D and production.

Key Features:

Highest Frequency: 8 GHz
Output Frequency Resolution: Up to 0.001 Hz
Level Setting Range: -140 dBm to 30 dBm
Phase Noise: < -132 dBc/Hz @ 1 GHz, offset 10 kHz (typical value)
Amplitude Accuracy: ≤ 0.7 dB (typical value)
Supports AM/FM/PM analog modulation, internal and external modulation options.
Supports pulse modulation function, pulse train generator, and user defined pulse sequences (optional).
Capable of real-time output of QAM, FSK, ASK, PSK, multi-tone, and various other modulated signals.
Supports playback of waveform files and sequences.
Supports generation of common communication protocol signals such as 5G NR, WLAN, LTE, BLUETOOTH, IOT, etc., when used with SigIQPro software.
Supports MIMO and various other application scenarios.
Supports real-time IQ baseband AWGN, allowing accurate control of signal and noise power, simplifying additional measurements and calculations required for receiver measurements.
Facilitates power measurement, control of power output, and line loss correction using a power meter.
Supports S-parameter compensation in vector mode to optimize the broadband characteristics of the test system.
Supports web remote control for convenient remote operation by users

Model	SSG6082A-V
Frequency Range	CW MODE 9 kHz - 8 GHz IQ mode 10 MHz - 8 GHz
Frequency Resolution	0,001 Hz
Amplitude Resolution	0,01 dB
Level Accuracy	0,7 dB (typ.)
Phase Noise	-132 dBc/Hz @1 GHz, offset 10 kHz (typ.)
Interne RF Bandwidth (I+Q)	500 MHz
Display	12,7 cm Touch-Display, RGB (800*480)

You will find the specifications of the Siglent SSG6082A-V here.

Wider modulation bandwidth and superior signal quality

With increasing data rates, broadband communication technologies are becoming increasingly important. The SSG6082A-V offers a modulation bandwidth of up to 1 GHz and excellent in-band performance thanks to precise factory calibration, making it suitable for a wide range of communication test scenarios. The SSG6000A-V series is characterised by extremely low phase noise, achieving -132 dBc/Hz at a 10 kHz offset for a 1 GHz signal. Higher spectral purity reduces measurement errors and improves the accuracy and reliability of test results. In wireless communication, signals with low phase noise help to minimise the bit error rate (BER) and thus increase the stability and reliability of the transmission.

Extended frequency and power range

With a maximum frequency of 8 GHz and a maximum output level of 30 dBm for CW signals, the new generator serves both as a high-precision RF source and as a carrier for modulated signals. Its wide frequency and power range fulfils the demanding test requirements of many modern communication systems.

Vector Compensation

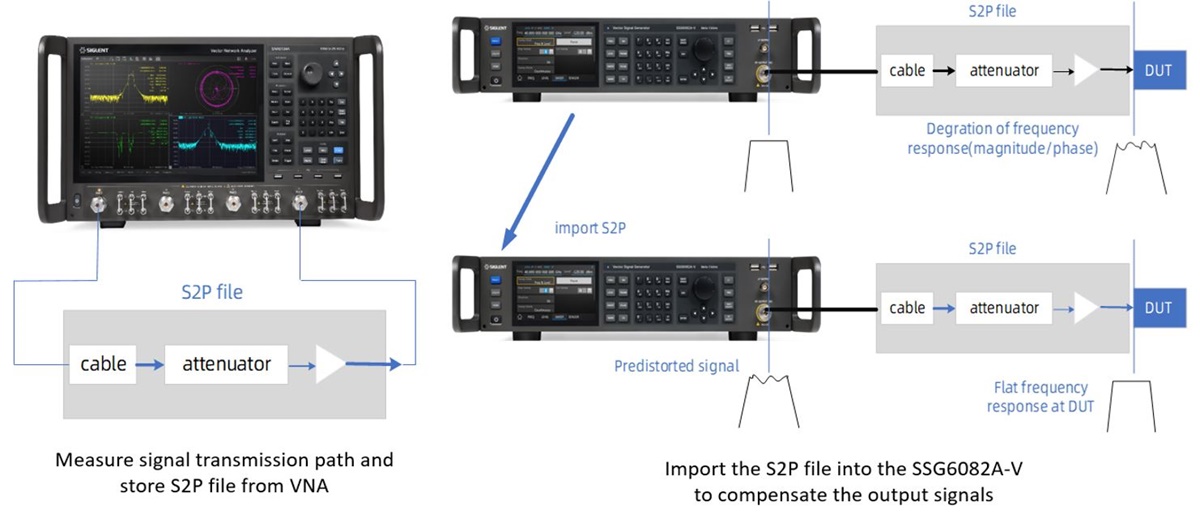

Supports user vector compensation using S-parameters for amplitude frequency response and phase compensation.

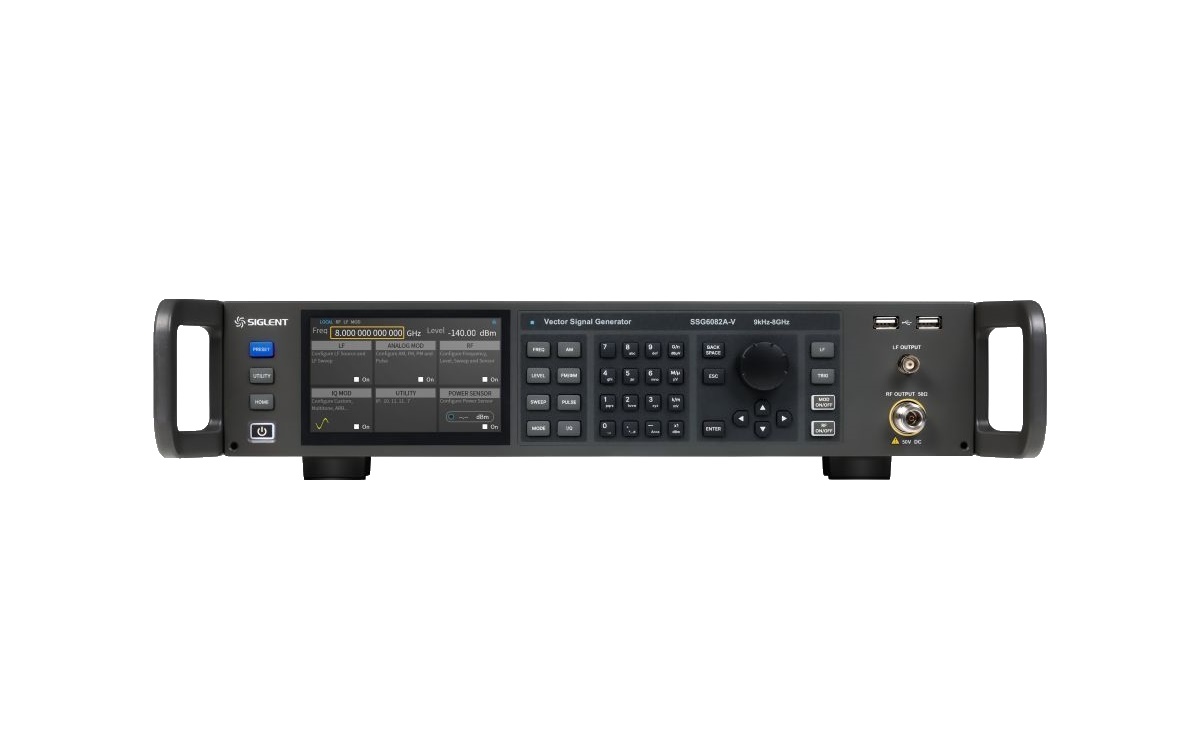

Intuitive Controls

5" touch screen
Multiple shortcut keys
Save occupied space and maintain test accuracy
Simplify measurement setup steps and improve test efficiency

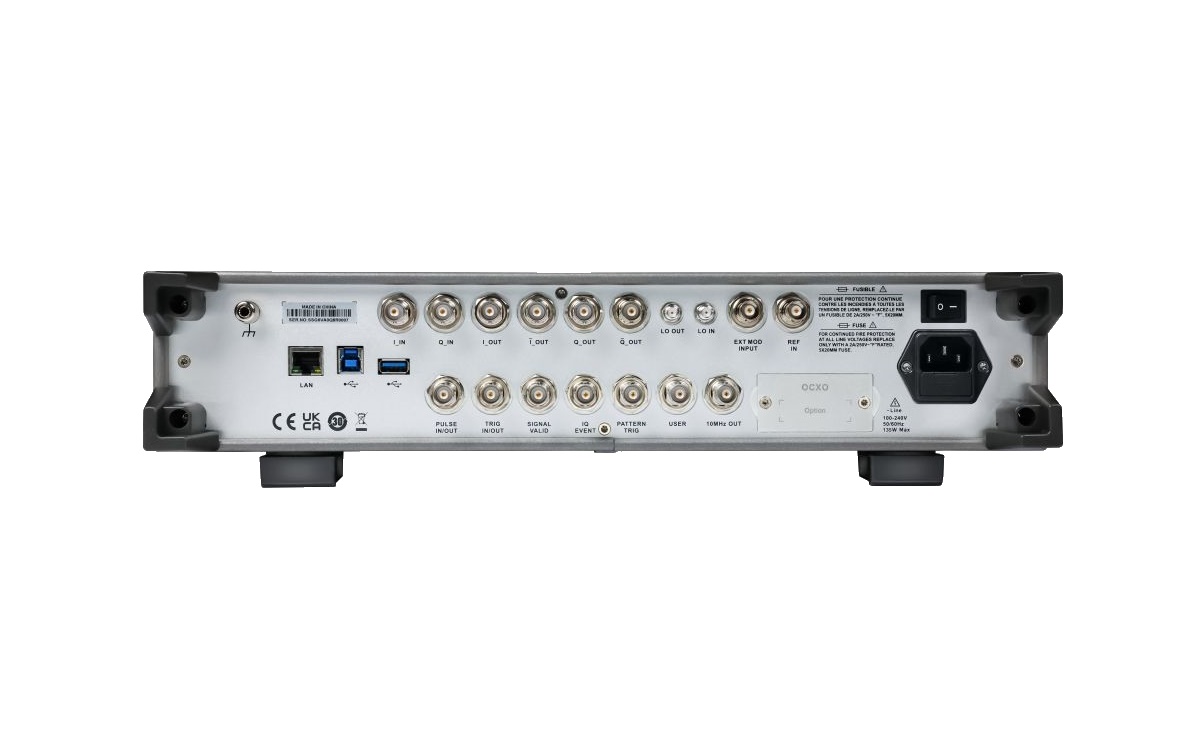

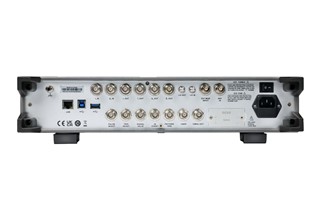

Wide range of connection options

TRIG IN/ OUT
EXT MOD INPUT
PULSE IN/ OUT
10 MHz IN / 10 MHz OUT
LO IN / LO OUT
SIGNAL VALID
I IN
Q IN
I+ OUT / I- OUT
Q+ OUT / Q- OUT
PATTERN_TRIG
IQ_ EVENT
USB Host
USB Device
LAN

Coming: More protocols with SigIQPro and comprehensive testing options

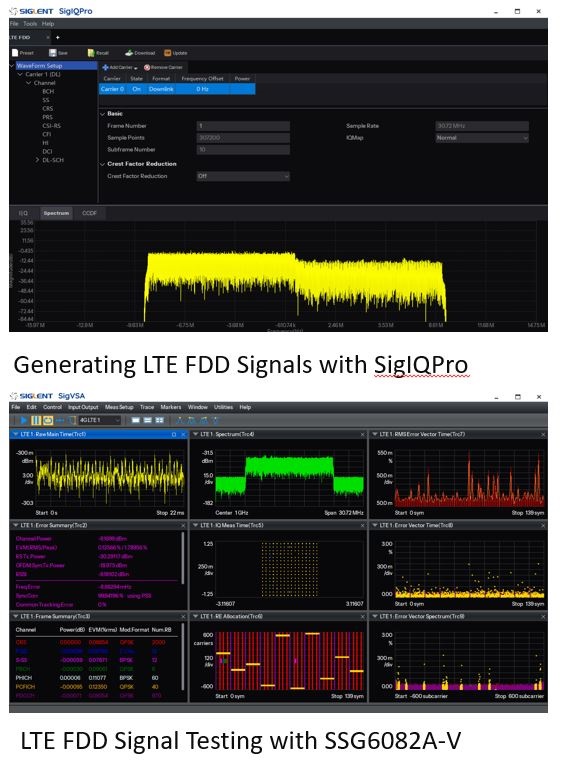

As mobile devices evolve and functionality increases, so does the demand for higher data rates and greater coverage. This requires more complex signal generation to validate device performance. SigIQPro is an essential tool for communication testing and is specifically designed to generate high quality, complex modulated and protocol specific signals. The planned upgrade of SigIQPro will extend the functionality and enable the generation of LTE FDD/TDD, 5G NR and additional WLAN signals. These additions will extend the existing functionality, which already includes Bluetooth, IoT, custom IQ and OFDM signal types
