The Tekbox EMC compliance software EMCview for PCs is a user-friendly EMC pre-compliance testing of radiated and conducted emissions. It is a perfect complement for automated testing using our LISNs, RF current probes, measurement antennas and TEM Cells.
A built-in amplitude correction enables correction and conversion coefficients for cables, amplifiers, attenuators, LISNs, TEM cells, antennas, RF current probes, filters and any other component in the signal chain.

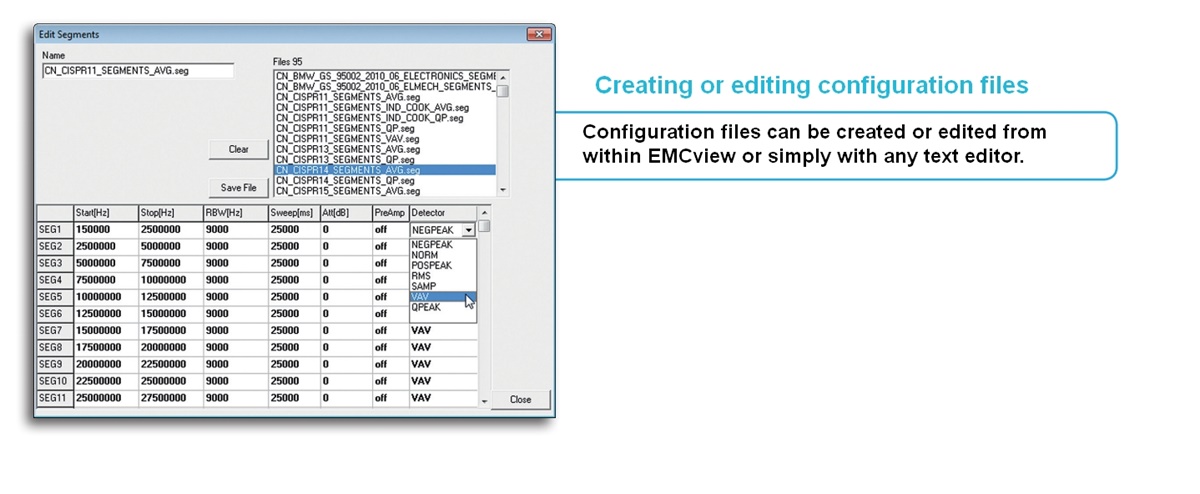

There is no need for a time-consuming setup. The SW is ready for measurements straight after installation. All emission related standards and a few automotive manufacturer standards are pre-configured in corresponding project files. The project files take care of all necessary settings to conduct standard compliant measurements. Besides using pre-configured projects, the user can easily create his own projects using a built in editor or any simple text editor.
The graph supports two complete measurement runs such as for example Average / Quasi-Peak or Peak / Quasi Peak and in addition a fast Quasi-Peak scan of critical peaks. Graphs can be saved and overlayed with newer measurements to track and document design modifications.
Furthermore, EMCview together with our GPS receiver can be used to carry out RF-coverage measurements. An export feature creates KML files which link the result to google maps.
Immunity testing is supported with dedicated menus, controlling the tracking generator of the spectrum analyzer.
EMCview PRO, offers real-time measurement support for spectrum analyzers with real-time capability. Furthermore, EMCview PRO offers advanced conducted immunity testing features for spectrum analyzers with tracking generators. The customer can select between a standard EMCview license or EMCview PRO. Users with a standard EMCview license have the option to upgrade to EMCview Pro.
There are two license options:
Analyzer-coupled – the license is coupled to the serial number of the spectrum analyzer. It can be installed on any number of PCs, but it can only control one dedicated spectrum analyzer
PC-coupled: the license is coupled to the Host ID of the PC. It can control any of the supported spectrum analyzer models, but it can only be installed on one dedicated PC.
Please specify the desired option in the comment field during the order process or in an e-mail to to firstname.lastname@example.org and we will send you the licence file within one working day.
Software limitation without a license: the measurement is limited to the frequency range below 10MHz
The spectrum analyzer should be equipped with the EMI option.
|CISPR 11||DIN EN 55011||Standard for industrial, scientific und medical radio equipment|
|CISPR 13||DIN EN 55013||Standard for audio and television receivers|
|CISPR 14||DIN EN 55014||Standard for household appliances|
|CISPR 15||DIN EN 55015||Standard for light sources and similar devices|
|CISPR 22||DIN EN 55022||Standard for IT equipment|
|CISPR 25||DIN EN 55025||Standard for electrical or electronical components in vehicles and boats|
|CISPR 32||DIN EN 55032||Standard for multimedia devices|
