Description

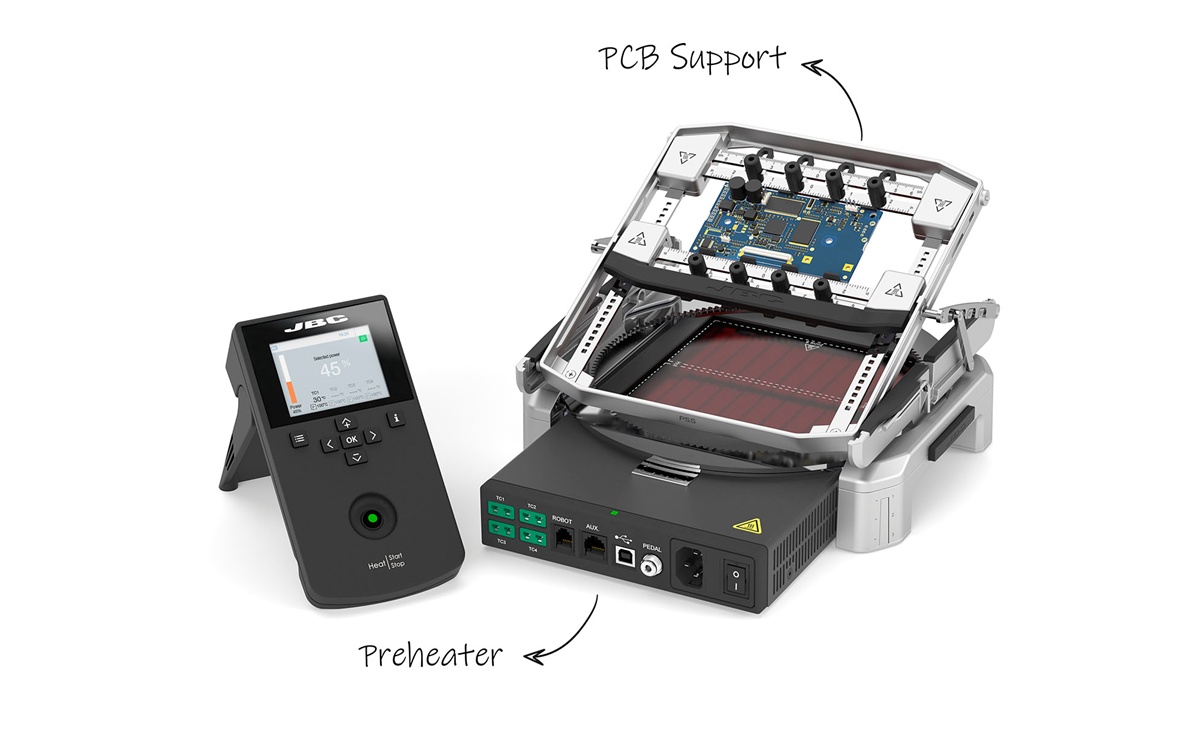

High end infrared Preheater of JBC for multilayer PCBs. The JBC PHSE provides a homogeneous heat dissipation for an optimal result. The PHSE has 2 independent heating zones. The PSS Multiaxis Rotative PCB Support allowing fast, easy and precise PCB changes, enabling soldering and rework tasks in any position - perfect for repetitive soldering jobs.
Technical Data
| Specifications | PHSM-2KA |
|---|---|
| Weight | 5.07 kg (11.17 lbs) |
| Size | 195 x 288 x 41 mm |
| Voltage | 230 V |
| Input fuse | 4A T |
| Power | 800 W |
| Heating Area | 65 x 135 mm (1 Zone) 130 x 135 mm (2 Zonen) |
| Temperature Range | 50 to 250ºC (120 to 482ºF) |
| Temperature Measurement: | Thermocouple type K |
| JBCset Temperature Profiles: | 3 profiles ( 2, 3 or 4 steps) |
| User Temperature Profiles: | 22 (up to 16 steps for each) |
| Maximum work time: | 50 min or indefinite |
| Package weight | 7.21 kg (15.90 lbs) |
| Package dimensions | 444 x 395 x 273 mm |
Downloads
Manual
PHSE Manual
Language: English
File Size: 12.29 MiB
Release Date: 30.04.2025
PSS Manual
Language: English
File Size: 4.35 MiB
Release Date: 30.04.2025
