Descriptiom

Name: JBC DDSE-2QE
Brand: JBC
Availability: BackOrder

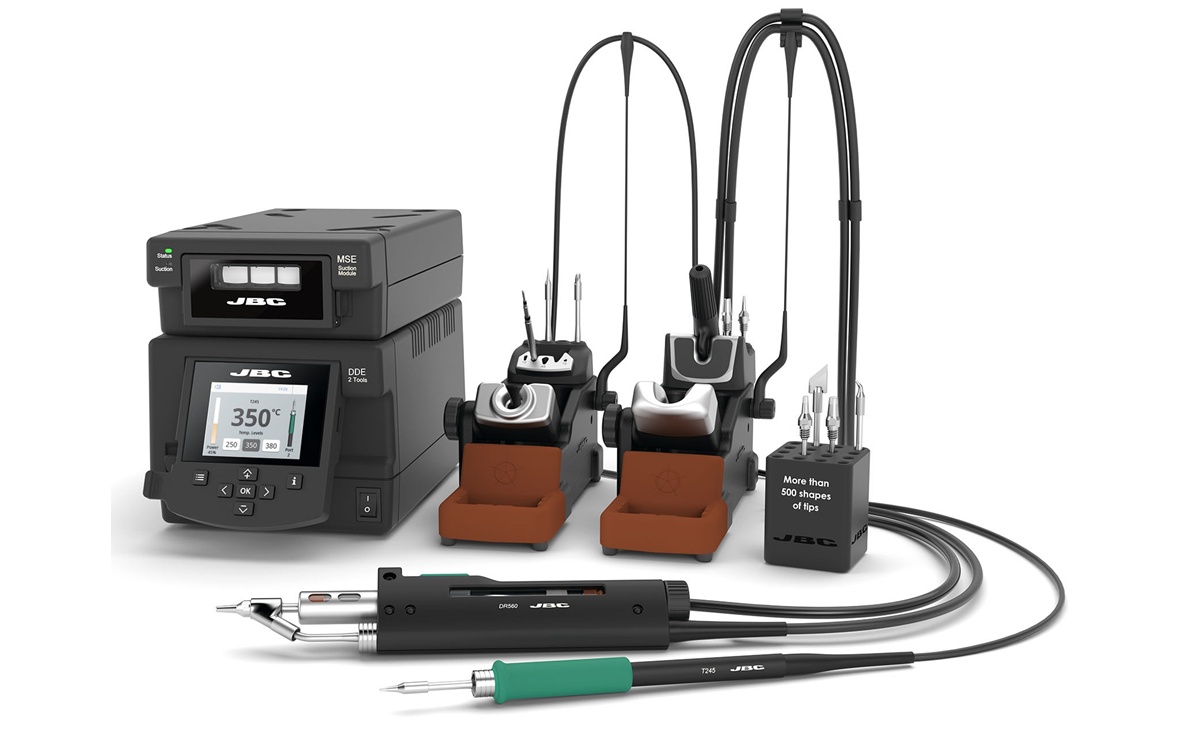

High end 2 Channel Rework Station of the JBC Premium Line for general soldering, desoldering and cleaning jobs. The JBC DDSE is equipped with a T245 130 W soldering Iron, a DR560 150 W desoldering Iron and an electric pump MSE-B.

Technical Data

Specificationen	DDSE
Weight	9.253 kg (20.39 lbs)
Input fuse	2A
Output Peak Power	150 W per tool
Temperature selection	90-450 ºC (190-840 ºF)
Idle temp. stability (still air)	±1.5ºC (±3 ºF)
Ambient operating temp.	10 - 40 ºC (50 - 104 ºF)
Tip to ground resistance	<2 ohms
Tip to ground voltage	<2 mV RMS
Communication connectors	USB-A / USB-B / Peripheriegeräte
Roboter connector	RJ12 (RS-232 Protokoll)DDE:
Vacuum (MSE-A)	85% / 640mmHg / 25.4inHg
Flow rate (MSE-A)	35 slpm
ESD Safe
Package weight	12.92 kg (28.48 lbs)
Package dimensions	425 x 360 x 333 mm

Special Features

Innovative Heating System

The compact heating elements in the cartridges optimize heat transfer by reducing the thermal barriers. The fully integrated thermal sensor to the heater ensures an extremely quick temperature recovery. The JBC DDSE-2QE increases the performance by using an intelligent algorithm in the heating control system.

JBC, the most efficient soldering process

Instead of other Soldering Manufactures, JBC DDSE-2QE allows a reduction of the temperature by at least 50ºC. JBC DDSE-2QE stations only drop 35ºC (95ºF) where others drop as much as 70ºC (158ºF). Lowering the temperature reduces the risk of damaging components and improves the quality of soldering and desoldering.

JBC Sleep & Hibernation

The Sleep function automatically reduces tip temperature to 180ºC when the iron is resting in the stand. The JBC DDSE-2QE automatically goes into Hibernation when the set time in Sleep mode is finished. The power supply is cut off and tip keeps at room temperature. The tool must be in the stand for the Sleep & Hibernation functions to work.

Longer Tip life

Tip life increases exponentially by using a lower tempearture for a shorter time, as shown in the graph. JBC tips last 5 times longer than other brands thanks to the Exclusive Heating System and the Intelligent Heat Management: Sleep & Hibernation functions.

Increased Productivity

Save time by using the quick cartridge extractor, which is available in all stands and compact stations. This system designed by JBC allows the user to change cartridges quickly and safely. Without switching the JBC DDSE-2QE off, you can carry out different soldering jobs.

PC communication and firmware updates via USB

All JBC DDSE-2QE soldering stations have a USB connector. The devices can be controlled by the JBC Open Manager software and for example temperature gradients can be recorded. With the JBC Updater Software, Firmware updates can be transferred into the device. This keeps your soldering station also in the future up to date.
