Description

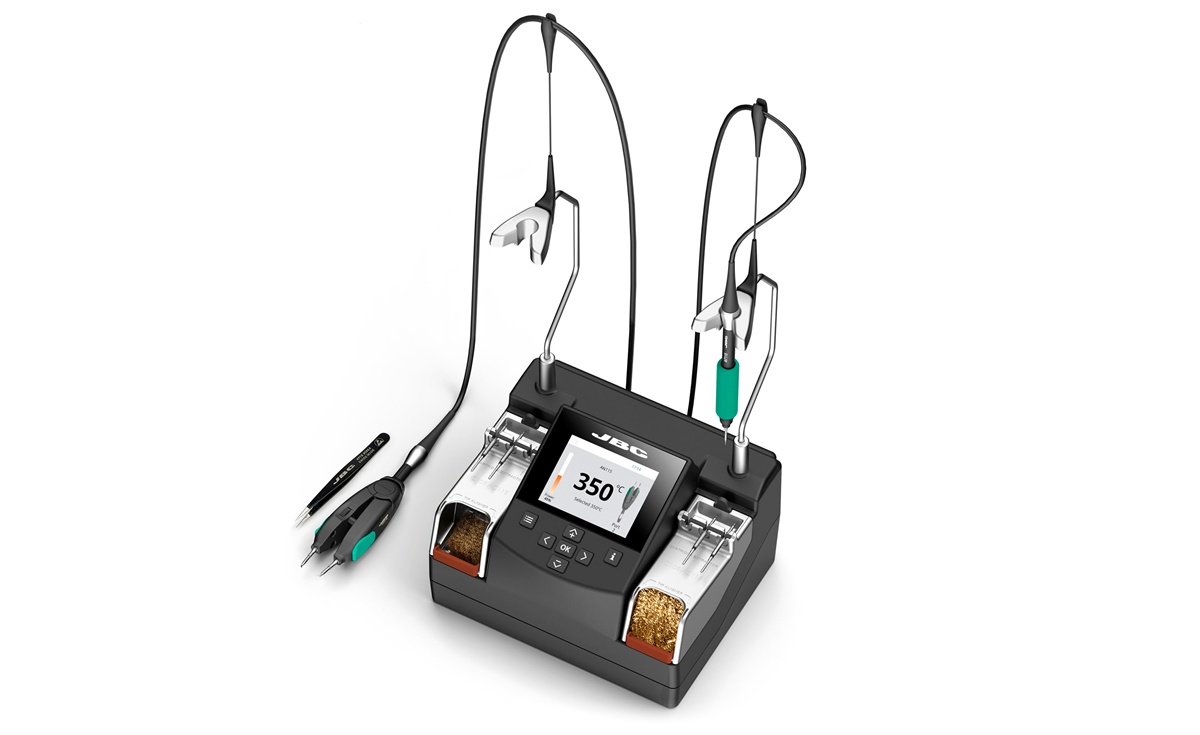

High end Nano Soldering and Desoldering Station of the JBC Premium Line for high-precision soldering jobs of delicate components. The JBC NANE is equipped with a 14W Nano Soldering Iron and 14W Nano Tweezers. The ergonomics, the very thin and flexible cable and the short distance tip-to-grip of the Nano Soldering Handle and the Nano Tweezers ensure greater accuracy and is ideal for delicate SMD soldering jobs.
The NASE-C comes with the new function "Temperature Dynamic Profiles". This new functionality allows using dynamic profiles in order to control the temperature of the component during all the phases of the soldering process (preheating, soak, reflow), in accordance with IPC J-STD-001G Section 4.6, emulating the heating process in a reflow oven.
Special Features
Innovative Heating System
The compact heating elements in the cartridges optimize heat transfer by reducing the thermal barriers. The fully integrated thermal sensor to the heater ensures an extremely quick temperature recovery. The JBC CD-2BQF increases the performance by using an intelligent algorithm in the heating control system.
JBC, the most efficient soldering process
Instead of other Soldering Manufactures, JBC CD-2BQF allows a reduction of the temperature by at least 50ºC. JBC CD-2BQF stations only drop 35ºC (95ºF) where others drop as much as 70ºC (158ºF). Lowering the temperature reduces the risk of damaging components and improves the quality of soldering and desoldering.
JBC Sleep & Hibernation
The Sleep function automatically reduces tip temperature to 180ºC when the iron is resting in the stand. The JBC CD-2BQF automatically goes into Hibernation when the set time in Sleep mode is finished. The power supply is cut off and tip keeps at room temperature. The tool must be in the stand for the Sleep & Hibernation functions to work.
Longer Tip life
Tip life increases exponentially by using a lower tempearture for a shorter time, as shown in the graph. JBC tips last 5 times longer than other brands thanks to the Exclusive Heating System and the Intelligent Heat Management: Sleep & Hibernation functions.
Increased Productivity
Save time by using the quick cartridge extractor, which is available in all stands and compact stations. This system designed by JBC allows the user to change cartridges quickly and safely. Without switching the JBC CD-2BQF off, you can carry out different soldering jobs.
PC communication and firmware updates via USB
All JBC CD-2BQF soldering stations have a USB connector. The devices can be controlled by the JBC Open Manager software and for example temperature gradients can be recorded. With the JBC Updater Software, Firmware updates can be transferred into the device. This keeps your soldering station also in the future up to date.Technical Data
| Specifications | NASE-2C |
|---|---|
| Weight | 2.450 kg (5.48 lbs) |
| Size | 170 x 90 x 135 mm |
| Input fuse | 0.2V |
| Output Peak Power | 14W per tool |
| Temperature selection | 90-450 ºC (190-840 ºF) |
| Idle temp. stability (still air) | ±3ºC (±5.5 ºF) |
| Tip to ground resistance | < 2 Ohm |
| Ambient operating temp. | 10 - 40 ºC (50 - 104 ºF) |
| Communication connectors | USB-A / USB-B / Pedal |
| Robot connector | RJ12 (RS-232 Protokoll) |
| ESD safe | |
| Package weight | 2.990 kg (6.59 lbs) |
| Package dimensions | 280 x 280 x 164 mm |
