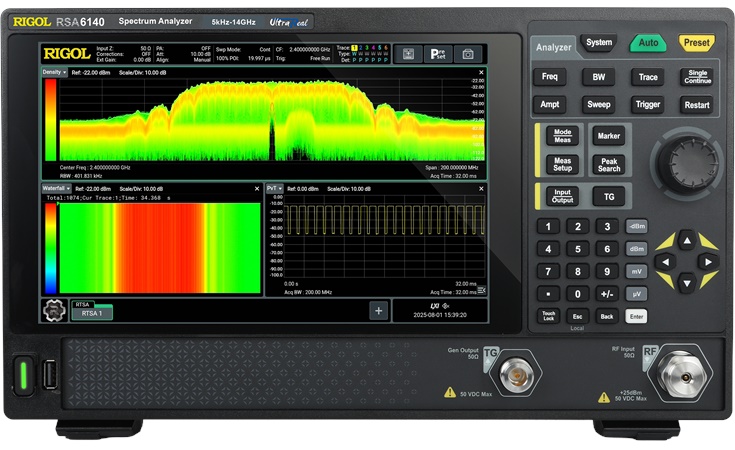

Name: Rigol RSA6140
Brand: Rigol
Availability: BackOrder

Innovative Tools. Excellent Service.

service@batronix.com

+49 4342 90786-30

Private customer | Germany | EN

Description

The Rigol RSA6000 series is a compact and light weight spectrum analyzer series with premium performance standard spectrum analysis capabilities combined with a Real-Time Spectrum Analyzer which makes it possible to never miss any signal that is longer than 7.45 µs in duration. Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference.

Real-Time Spectrum Analyzers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems. The RSA6000 combines industry leading Realtime performance (7.45µs 100% POI), rich data displays, and advanced triggering options allowing the user to quickly capture, identify and analyze these complex events.

The Rigol RSA6000 series combines the performance of a traditional spectrum analyzer with the advantages of a real-time spectrum analyzer in a compact, lightweight device.

Especially developers working in the fields of WLAN, Bluetooth, IoT, or NFC often face challenges posed by complex and frequency-agile RF signals. Issues such as frequency hopping, channel overlap, or interference are difficult to capture with conventional analyzers. This is where real-time spectrum analyzers demonstrate their strengths: they not only capture frequency spectra but also the temporal behavior of RF signals, enabling precise analysis even of highly complex wireless systems.

The RSA6000 series features a 10.1" (25.7 cm) touch display, real-time bandwidth of up to 200 MHz, and particularly intuitive operation. Signals lasting longer than 3.83 µs are guaranteed to be captured. In combination with frequency mask triggering and spectrogram functionality, signals in the amplitude, frequency, and time domains can be reliably detected, isolated, and analyzed.

As a standard spectrum analyzer, the series also impresses with 1 Hz resolution bandwidth (RBW), a DANL of -163 dBm (typical), and a full-span sweep time of just 1 ms—setting new benchmarks in precision and speed.

Experience RSA6000

Would you like to experience the RSA6000 in your own working environment first? Our demo units allow you to explore the operating concept, functionality and user experience firsthand, helping you gain your own impression of the RSA6000.

If you have any questions or would like to request a demo unit, we will be happy to assist you personally.

Overview	RSA6000
Frequency Range	5 kHz - 8.5 / 14 / 26.5 GHz
Frequency Resolution	1 HZ
Span	0 Hz (zero Span) 100 Hz - 8.5 / 14 / 26.5 GHz
DANL	-143 dBm (-163 dBm with optional preamplifier)
Display	25,7 cm (10.1") TFT-Color-LCD Touchdisplay (1280 × 800 Pixel)
Interfaces	USB-Host, USB, LAN, GPIB
Dimensions	358 mm × 214 mm × 121 mm
Weight	5.3 kg
