The SIGLENT SHA800A , a handheld portable spectrum analyzer and cable and antenna analyzer is a powerful and flexible tool for those field and outdoor RF applications Including communication engineering, telecom operation and maintenance, radio management, factory production, education and teaching and many other fields. Professional accuracy with flexible analysis capabilities and the ability to make measurements where you need them with a complete portable solution.
With a frequency range up to 7,5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation A spectrum analyzer, including built in amplifier and independent signal source , fast scanning speed, high sensitivity, can achieve broadcast monitoring, channel power scanning, wireless interference location, power monitoring, electromagnetic compatibility, and other functions.
A cable and antenna tester including built in DC voltage bias, with a 1 path 2 port vector network analysis function, can measure TDR, VSWR , port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, Smith chart, etc.
Features and benefits
Spectrum analyzer frequency range from 9 kHz up to 7.5 GHz 165 dBm /Hz. Displayed average noise level (Typ 10 4 dBc/Hz.@10 k Hz offset phase noise (1 GHz Typ.), 1 Hz up to 10 MHz Minimum resolution bandwidth (RBW) preamplifier and independent signal source up to 7.5 GHz , GPS positioning and logging
Cable and antenna Test frequency range from 100 kHz up to 7.5 GHz, distance to fault and time domain analysis
Vector network analyzer B ias out up to 32VDC
Typical working time 4 hours, 3.2 kg net weight, 8.4 lnch multi touch screen , mouse and keyboard supported
| Overview | SHA851A | SHA852A |
|---|---|---|
| Frequency range (spectrum analysis) (cable/antenna test) | 9 kHz - 3.6 GHz 100 kHz - 3.6 GHz | 9 kHz - 7.5 GHz 100 kHz - 7.5 GHz |
| Ports | 2 | 2 |
| Frequenzy resolution | 1 Hz | 1 Hz |
| Dynamic range | 100 kHz - 1 MHz: 102 dB, 108 dB (typ.) 1 MHz - 1.5 GHz: 109 dB, 114 dB (typ.) 1.5 GHz - 3.6 GHz: 107 dB, 112 dB (typ.) | 100 kHz - 1 MHz: 102 dB, 108 dB (typ.) 1 MHz - 1.5 GHz: 109 dB, 114 dB (typ.) 1.5 GHz - 3.6 GHz: 107 dB, 112 dB (typ.) 3.6 GHz - 6.5 GHz: 105 dB, 109 dB (typ.) 6.5 GHz - 7.5 GHz: 102 dB, 107 dB (typ.) |
| Setting range of output level | -40 dBm - 0 dBm | -40 dBm - 0 dBm |
| Touch-Display |
You will find the specifications of the SHA800A series here
Frontal view

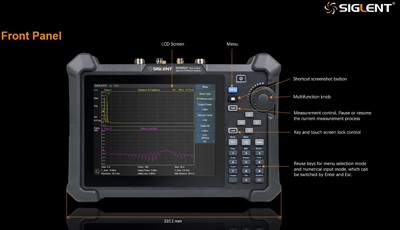

8.4 inch multi touch screen and full keyboard control

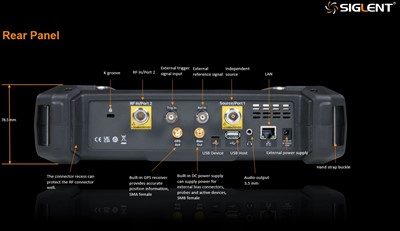

Ports
RF input Port 2: N type female, 50 Ω nom
Source Port 1: N type female, 50 Ω nom
USB Host: USB A plug, version 2.0
Ear Phone: Jack 3.5 mm
USB Device USB: C plug, version 2.0
LAN: LAN VXI11 10/100 Base RJ 45
GPS Antenna (GPS Receiver): SMA (F) 3.3V, 50 Ω
Bias out (SHA850-BIAS): SMB (F) 12 V - 32 V 0.1 V step
10 MHz reference input: 10 MHz, 5 to +10 dBm, BNC type female, 50 Ω (nom.)
External trigger input: 1 KΩ 5 V TTL level , BNC type female
GPS
GPS Location and trace log recorder , sync 10 MHz reference clock
Area for "GPS display information“
Area for "GPS satellite lock icon“
GPS display information:
Fix: Invalid / Estimated: Unknown system /
GNSS: global navigation satellite system /
DGPS: differential global positioning system
Satellite: number of Satellites
Latitude
Longitude
Altitude
*Requires GPS Antenna and GPS Receiver Option. GPS Logging Option for saving data.
ACPR
Common measurement characteristic for channel-based communication protocols.
It can describe the out-of-band spectrum distortion characteristics of signal caused by nonlinear distortion of power amplifier
*Requires AMK (Advanced Measurement Kit) Option
Signal Modulation Analysis
Analog signal: AM/FM/PM (AMA Option)
Digital signal: ASK/FSK/PSK/QAM (DMA Option)
EVM (Error Vector Magnitude) Calculation
Transmission quality factors
Visualization modes include eye-diagrams and constellations
Extends troubleshooting to complex signals and systems
*Requires AMA / DMA Option
Digital Modulation Analysis
Display in binary or hexadecimal
Compare captured data to known data to calculate BER (Bit Error Rate)
*Requires DMA Option
Spectrum Monitor
Color represents spectral energyV
The X axis is frequency
The Y axis is time Also called Spectrogram or Waterfall Chart
Detecting non-continuous and frequency hopping signals
We can observe the change of the signal over a longer period of time
*Requires AMK (Advanced Measurement Kit) Option
Vector Network Analyzer
Easily measure S11 and S21
10001 maximum measuring points
The display contents include:
Phase
Group Delay
Polar Chart
Smith Chart
Simultaneous S11 and S21 display provides simple and intuitive impedance measurements
*Requires VNA Option
Wide range of applications thanks to new accessories
Broaden the possibilities for your analysors SEM5000A series electronic calibration (ECal) modules, SSU5000A series mechanical switch and SSM5000A series switch matrix, which are designed and optimized for use with the SHA850A, SVA1000X and SNA5000A series vector network analyzers from SIGLENT. They offer a comprehensive, cost-effective total solution for simple to complex RF measurement tasks on multiport and multiple devices.Application
Communication Engineering
- Comparative measurement of received signal power
- Fast location of interference signals
- Installation and maintenance of base station
- Cable and antenna measurement
- Wireless equipment field test
- Field strength coverage measurement
- Telecom drive test operation and maintenance
Failure Analysis in the field
- Characterize RF devices
- Characterize electronic components including
- Resistors, Capacitors, Inductors…
- Filters, Cables, Mixers, Connectors…
- Antennas, Amplifiers, Attenuators…
Device parameter Verification
- Measure the characteristics of amplifiers, mixers, filters and other devices in the field
- Test the performance, bandwidth, intermodulation distortion and many other indicators
Site Installation & Troubleshooting
- Site survey
- Radio link installation
- Site acceptance
- Design and assembly troubleshooting
Telecom drive test operation and maintenance / Installation and maintenance of cellular systems
Fault diagnosis and maintenance to ensure the continuity of communication.
Most microwave link equipment problems are related to cables, antennas and connectors.
If the performance of the feeder is degraded, it may lead to problems such as:
Reduced coverage
Link failure
Decreased sensitivity of the receiver path
Radio Monitoring Management
In applications such as communication and commercial microwave backhaul
- Hardware installation and maintenance
- Detecting the quality of wireless signals
- Periodically detect unexpected signals
- Signal monitoring
Example
- Detecting low-level signals or neighboring small interference signals under strong signal conditions requires high dynamic range.
- While the latter requires excellent phase noise performance.
Station Installation Verification
- Verify station parameters including frequency and power
- Debug cables and connections
- Characterize active and passive devices including amplifiers and antennas
- Conduct on-site verification and followup
