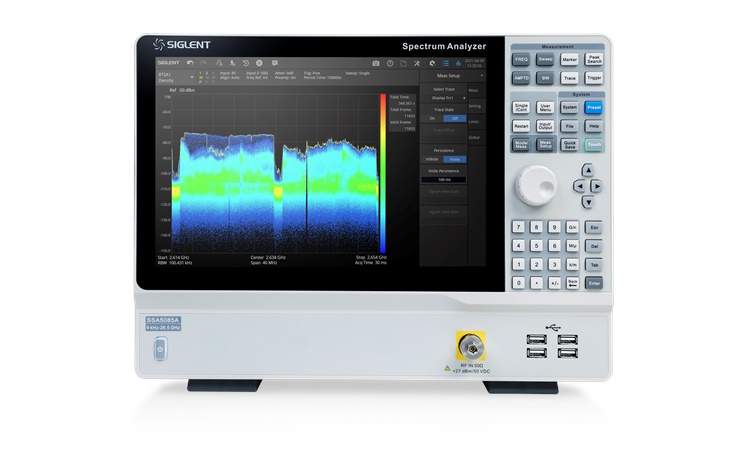

The Siglent SSA5083A real-time spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With a capability of 40 MHz analysis bandwidth and 7.2 μs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc.

They also provide standard tracking generator for network analysis, optional wide band digital modulation analysis, and EMI measurement. Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.

The very large (30.7 cm / 12.1") Mutli Touch Display of the Siglent SSA5083A spectrum Analyzer provides a resolution of 1200x800 pixels. Both Models allowing a very good overview of all its comfortable functions like measurements, marker and peak table, auto tune and coupling.

These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer.

The Siglent Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

A-Models	SSA5083A	SSA5085A
Max. frequency	13.6 GHz	26.5 GHz
Realtime bandwidth	25 MHz (RTA1 Option), 40 MHz (RTA1 + B40 Option)	25 MHz (RTA1 Option), 40 MHz (RTA1 + B40 Option)
Preamplifier	Option	Option
EMI Filter	Option	Option
AMK CHP/ACPR/TOI/OBW/Monitor	Option	Option
AMA AM/FM	Option	Option
DMA ASK/FSK/PSK/QAM	Option	Option
Touch Screen
Resolution bandwidth (RBW)	1 Hz ~ 1 MHz, in 1-3-10 sequence	1 Hz ~ 3 MHz, in 1-3-10 sequence
Display average noise level (DANL), min.	-165 dBm/Hz	-165 dBm/Hz

You will find the specifications of the Siglent SSA5000A series here.

Accessories

Accessory Siglent SSA5000A

20 of 20 Article

Sorting

SSA5000-B40 License by Siglent — Be the first to write a review
Optional realtime bandwidth upgrade 40 MHz for the Siglent SSA5000A series.

SSA5000A-F5 License by Siglent — Be the first to write a review
Upgrades the SSA5083A to the SSA5085A

SSA5000-RTA1 License by Siglent — Be the first to write a review
Realtime analysis function software license for the Siglent SSA5000A spectrum analyzers.

SSA5000A-AMK License by Siglent — Be the first to write a review
Advanced Measurement Kit software license for the Siglent SSA5000A realtime spectrum analyzers. Enables the following measurement functions:

Channel power

Adjacent channel power ratio

Time domain power

Occupied bandwidth

Screenshot License by Siglent — Be the first to write a review
Analog Modulation Analysis Function,including AM，FM and PM. for the Siglent SSA5000A realtime spectrum analyzers.

Screenshot SSA5000A-DMA License by Siglent — Be the first to write a review
Digital Modulation Analysis Function,including ASK, FSK, MSK, xPSK, xQAM

SSA5000A-P3 License by Siglent — Be the first to write a review
This is an optional 13.6 GHz Preamplifier for the Siglent realtime spectrum analyzer SSA5000A.

SSA5000A-P5 License by Siglent — Be the first to write a review
This is an optional 26.5 GHz Preamplifier for the Siglent realtime spectrum analyzer SSA5000A.

SSA5000-IFO License by Siglent — Be the first to write a review
IF output software license for the Siglent SSA5000A spectrum analyzers.

SSA5000-IQA License by Siglent — Be the first to write a review
Real-Time data capture software license for the Siglent SSA5000A spectrum analyzers.

SSA5000-BT License by Siglent — Be the first to write a review

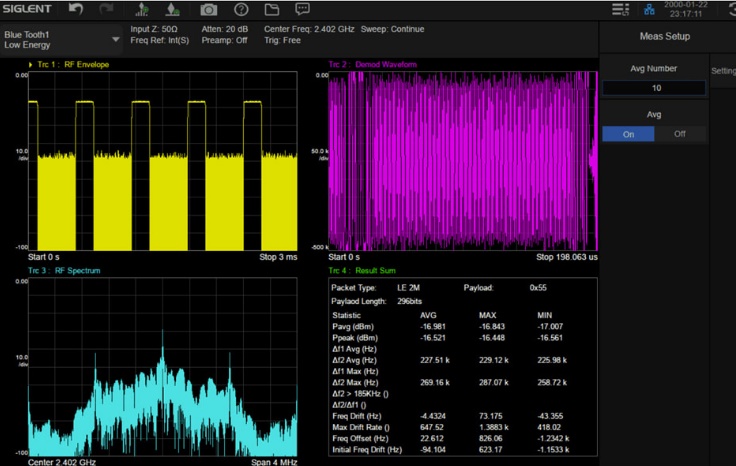

Bluetooth signal measurement software license for the Siglent SSA5000A spectrum analyzers.

SSA5000-PU License by Siglent — Be the first to write a review

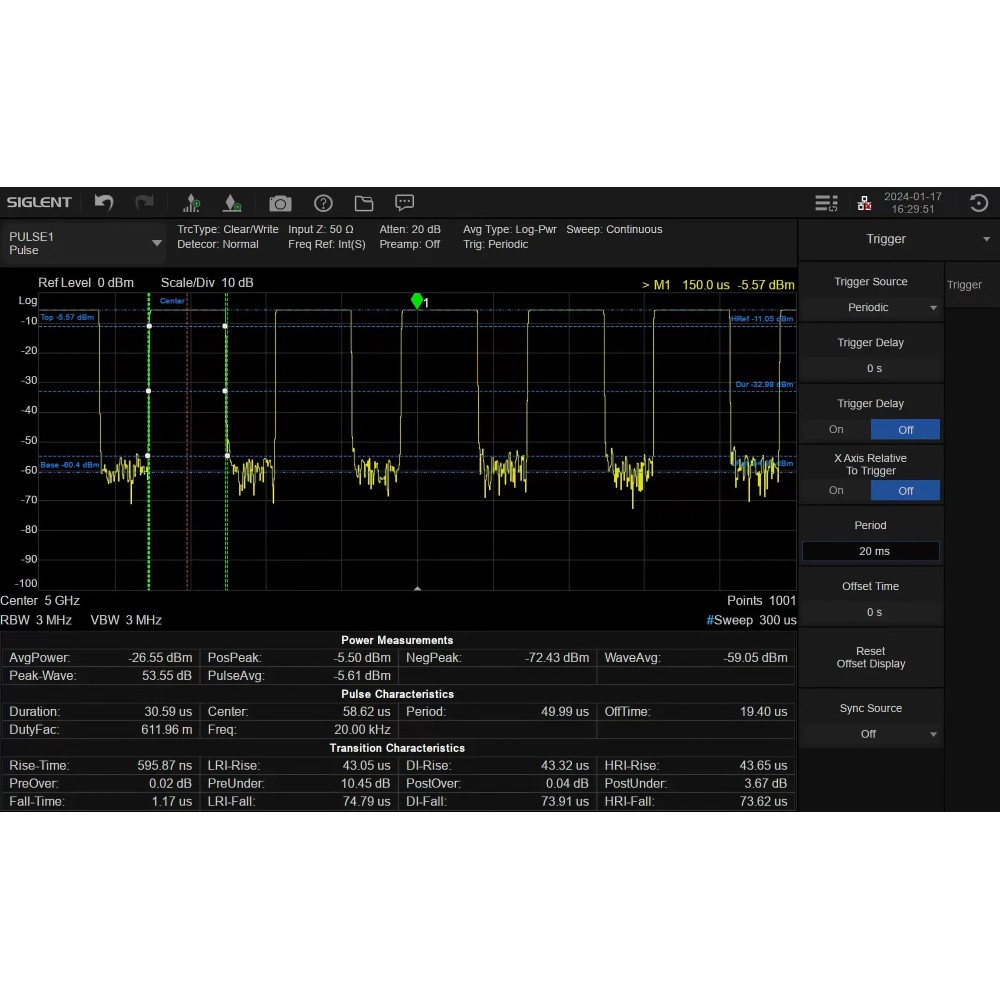

Pulse signal measurement software license for the Siglent SSA5000A spectrum analyzers.

SSA5000-PU License by Siglent — Be the first to write a review

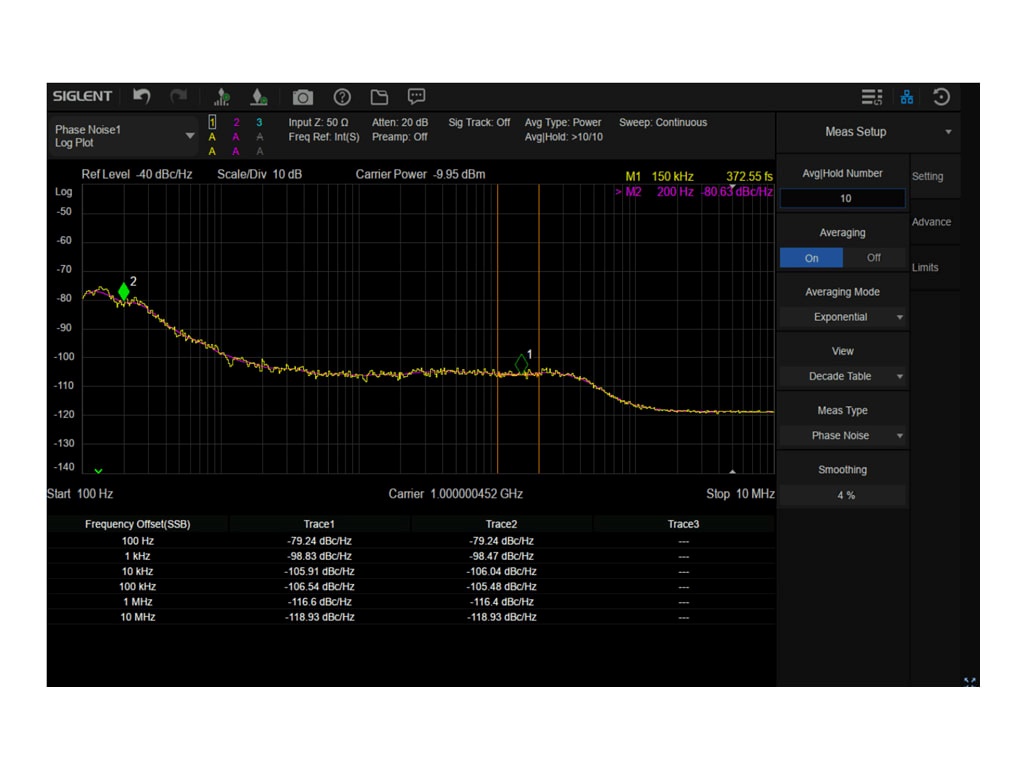

Phase noise measurement software license for the Siglent SSA5000A spectrum analyzers.

SSA5000-NF License by Siglent — Be the first to write a review
Phase noise measurement software license for the Siglent SSA5000A spectrum analyzers. Hardware module NSD28 required to connect to noise source.

NSD-28 Measurement Accessory by Siglent — Be the first to write a review

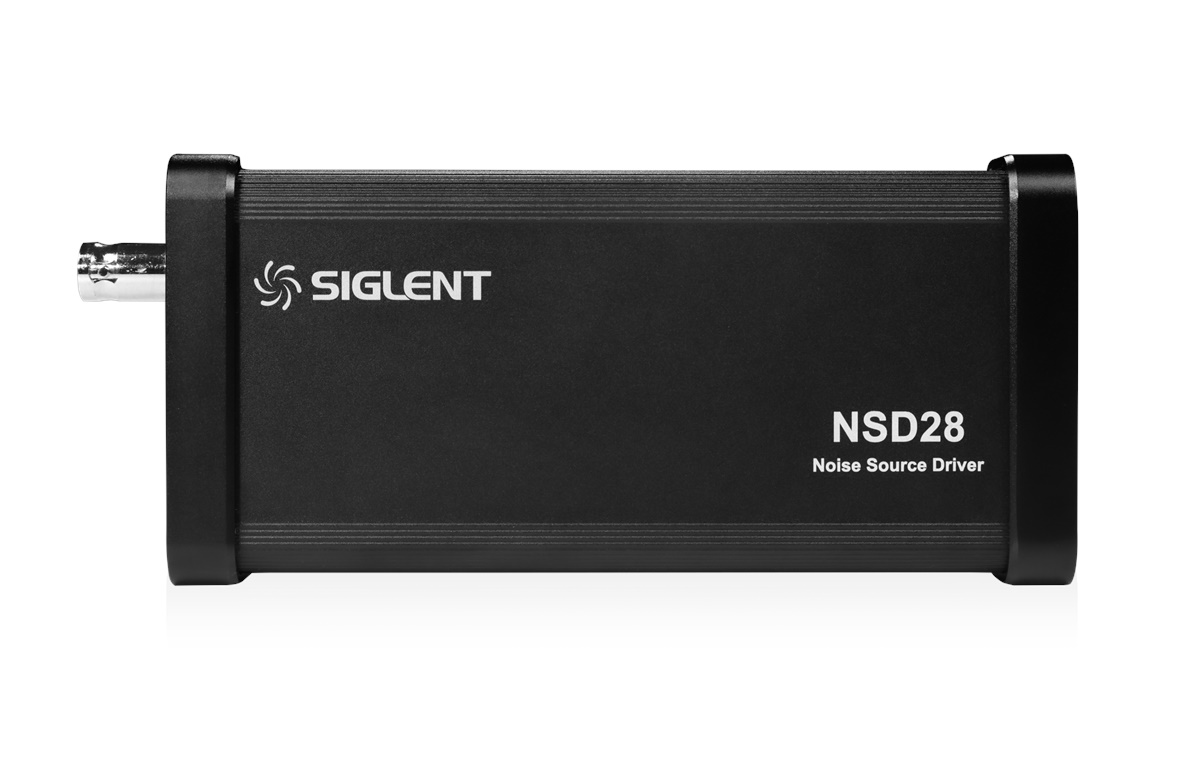

The Siglent NSD28 is a noise source driver hardware unit for the Siglent SSA5000A series spectrum analyzer. This unit is used with the SSA5000-NF noise figure measurement software license, which enables the spectrum analyzer to measure the noise figure and gain of various devices, such as amplifiers and converters. The NSD28 provides a stable and accurate noise source output for the noise figure measurement, with a frequency range of 9 kHz to 7.5 GHz and an output power of -30 dBm to 0 dBm.

SSA5000-EMI License by Siglent — Be the first to write a review
Quasi peak detector and EMI filter (200 Hz, 9 kHz, 120 kHz, 1MHz, -6 dB bandwidth) for the Siglent SSA5000A spectrum analyzers.

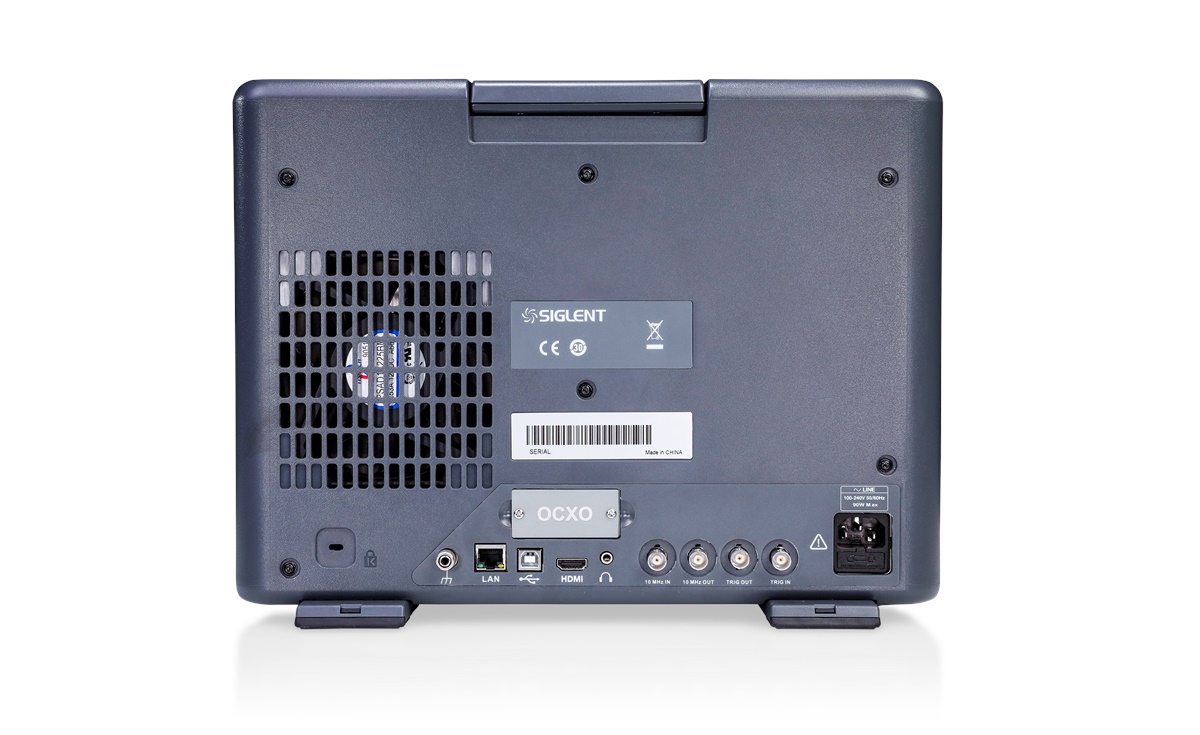

10M-OCXO-L Measurement Accessory by Siglent — Be the first to write a review

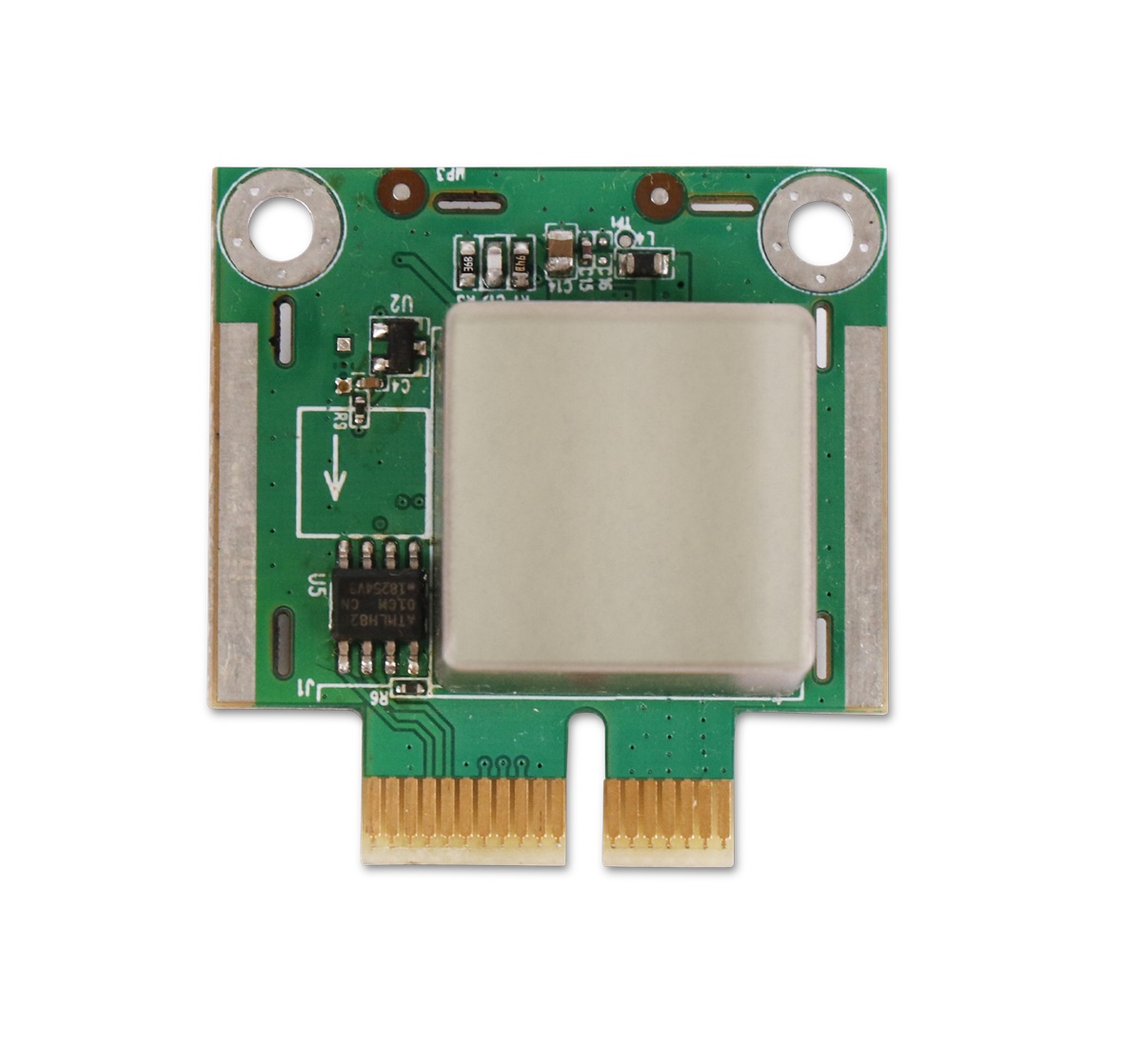

High accuracy clock source ( Installed in factory only)

SRF5030T Measurement Accessory by Siglent — Be the first to write a review
Near field probe set for EMC diagnosis in the frequency range from 300 kHz to 3 GHz.

Near field probes for measuring magnetic field (H20, H10 and H5) and electric field (E5)

RF connection: SMB (male)

Frequency range: specified up to 3 GHz

Be the first to write a review
GPIB Adapter to connect to the USB host connector of a Siglent device without own GPIB Interface.

CASE-S1 Measurement Accessory by Siglent — Be the first to write a review
Hard cover transport case for SNA5000, SSA5000, SDS6000 Siglent series
