Siglent SVA1015X VNA

6 Reviews

Spectrum-vector analyzer with a frequency range from 9 kHz (VNA 100 kHz) to 1.5 GHz, 1 Hz RBW and a 25.6 cm (10.1") touch display (1024x600 pixels). Including one-port vector network analyzer and tracking generator.

3 years warranty

No.: SVA1015X VNA
EAN: 723497646536

with FREE shipping within the EU!
Shipping costs outside EU

in 21-40 days in stock.

€ 1,359.- net (VAT Details)

€ 1,617.21 incl. 19% VAT

Description

The Siglent SVA1000X series spectrum & vector network analyzers are powerful and flexible tools for broadcast and RF device testing.

With a wide frequency range from 9 kHz(VNA 100 kHz) to 7.5 GHz, the analyzer delivers reliable automatic measurements and plenty of features including a tracking generator and multiple modes of operation:

The base model is a swept super-heterodyne spectrum analyzer and a vector network analyzer. Optional functions include, a Frequency Domain Reflectometer based distance-to-fault locator, and a modulation analyzer. Applications include broadcast monitoring/ evaluation, site surveying, EMI pre-compliance, research and development, education, production and maintenance.

The Siglent Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Model Overview	SVA1015X VNA	SVA1032X VNA	SVA1075X VNA
Max. frequency	1.5 GHz	3.2 GHz	3.2 GHz
Resolution bandwidth (RBW)	1 Hz ~ 1 MHz, in 1-3-10 sequence	1 Hz ~ 1 MHz, in 1-3-10 sequence	1 Hz ~ 1 MHz, in 1-3-10 sequence
Display average noise level (DANL), min.	-156 dBm/Hz Displayed Average Noise Level	-161 dBm/Hz Displayed Average Noise Level	-165 dBm/Hz Displayed Average Noise Level
Preamplifier
Tracking Generator
Vector Network Analysis
Distance To Fault	Option	Option	Option
Modulation Analysis	Option	Option	Option
EMI Pre-compliance Test Kit	Option	Option	Option
Advanced Measurement Kit	Option	Option	Option
Multi-Touch Screen

You will find the specifications of the SVA1000X series here.

LCD Screenshots

Touch Display

10.1 inch Multi-Touch Screen with 1024x600 pixel.

Displayed Average Noise Level

Designed around a low noise, high-performance RF front-end. The SVA1000X series offer low background noise, and a standard built-in preamplifier. High sensitivity improves weak signal monitoring.

Resolution bandwidth

A resolution bandwidth (RBW) of 1 Hz makes it easy to clearly observe and separate signals with minimal frequency differences. RBW settings directly affect the noise floor and sweep speed. Larger RBWs = faster sweeps/more noise

Phase noise

Excellent phase noise performance enables users to evaluate most synthesizers and signal generators.

Vector Network Analysis

Easily measure the scattering parameters S11 and S21. Up to 750 measurement points are available. Display includes Reflection coefficient, Return Loss, Phase, Group Delay, Smith, and more.

Distance-to-Fault (DTF option)

Frequency Domain Reflectometry (FDR) based Quickly find damaged/broken cables or connections Antenna and transmission line service and maintenance.

Modulation Analysis (DMA option)

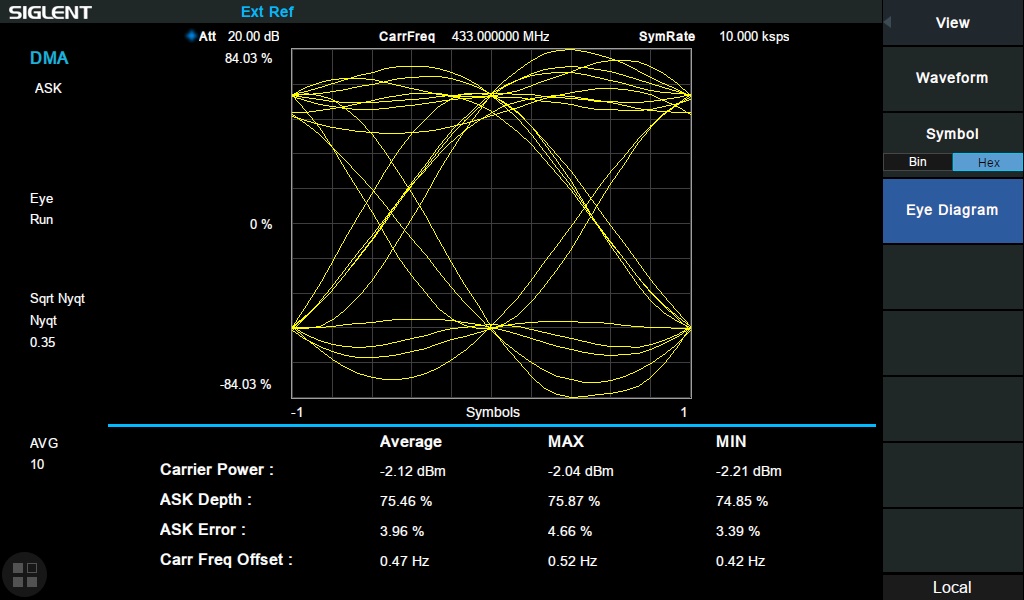

Qualitative observation of signal transmission quality through eye diagrams.

Wide range of applications thanks to new accessories

Broaden the possibilities for your analysors SEM5000A series electronic calibration (ECal) modules, SSU5000A series mechanical switch and SSM5000A series switch matrix, which are designed and optimized for use with the SHA850A, SVA1000X and SNA5000A series vector network analyzers from SIGLENT. They offer a comprehensive, cost-effective total solution for simple to complex RF measurement tasks on multiport and multiple devices.
