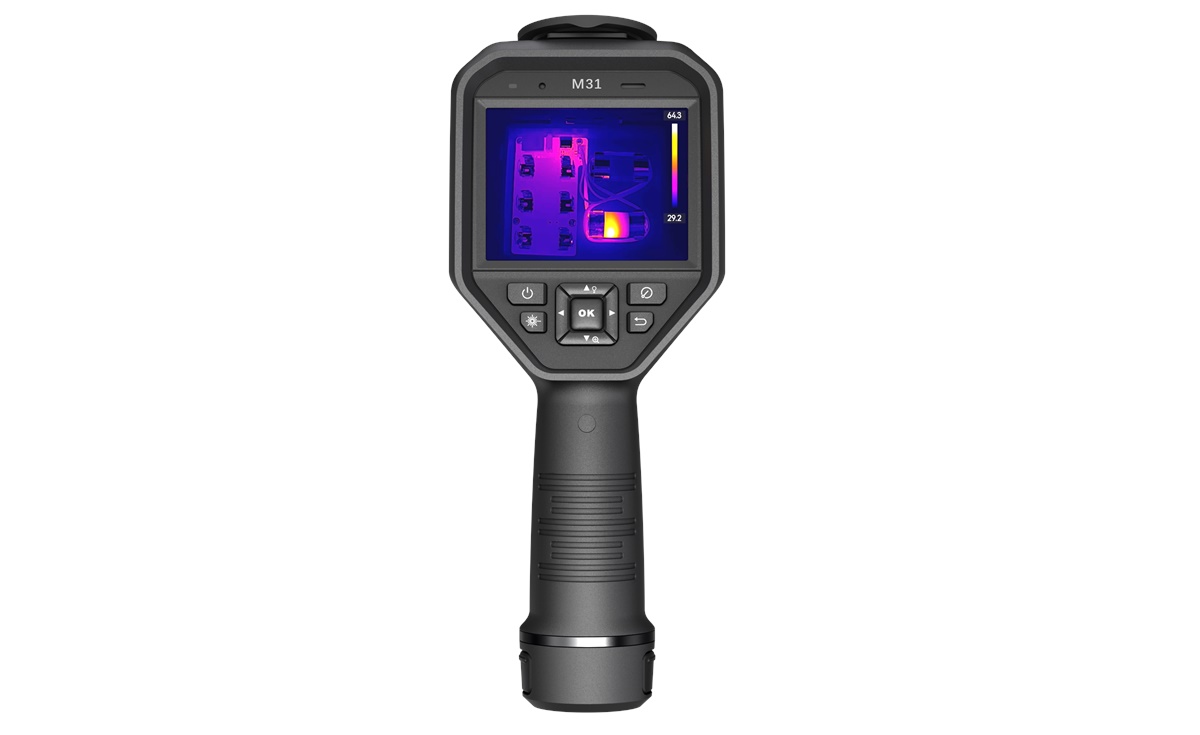

The HIKMICRO M31 is a dual-lens thermal imaging camera with manual focus from 0.1 m for capturing thermal images and normal images.
The HIKMICRO SuperIR image enhancement technology scales stored thermal images and live views from 384 x 288 (110,592 pixels) to a resolution of 768 x 576 (442,368 pixels). Detects temperature changes and measures in real time for the central, hot and cold spot respectively. 10 spots, one line, 5 rectangles and 5 circles are user-definable. 7 colour palettes are available for the display, as well as 4 image modes: thermal, optical, fusion and PIP. Each recording can be annotated, either by a voice memo of up to 60 seconds or a text memo of max. 200 characters. The unit supports live view, snapshots, etc. The 64 GB SD card memory holds approx. 100,000 images or 54 hours of MP4 video.
Thanks to the 2 exchangeable Li-Ion batteries supplied, the camera can be used for approx. 12 hours, and the double charging station ensures that ensures that the batteries are fully charged for the next day. All models are equipped with an LED light and a laser pointer. Easily share images and videos via Wi-Fi and the HIKMICRO Viewer app, analyse images, create real-time reports on site. The camera can be mounted on a tripod using the standard thread.
| Specification | HIKMICRO M11 | HIKMICRO M20 | HIKMICRO M30 | HIKMICRO M31 | HIKMICRO M60 |
|---|---|---|---|---|---|
| IR resolution | 192 × 144 (27,648 pixels), SuperIR = 384 × 288 (110,592 pixels) | 256 × 192 (49,152 pixels), SuperIR = 512 × 384 （196,608 pixels) | 384 × 288 (110,592 pixels), SuperIR = 768 x 576 (442,368 pixels) | 384 × 288 (110,592 pixels), SuperIR = 768 x 576 (442,368 pixels) | 640 x 480 (307,200 pixels) SuperIR = 1,280 x 960 (1,228,800 pixels) |
| Optical resolution | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) | 3,264 × 2,448 (8 MP) |
| Field of view (FOV) | 18.8° × 14.1° | 37.2° × 27.8° | 37.5° × 28.5° | 41.1° × 30.5° | 41.9° × 33.3° |
| Temperature range | -20 to 550 °C | -20 to 550 °C | -20 to 550 °C | -20 to 650 °C | -20 to 650 °C |
| NETD | < 40 mK (@ 25 °C, F#=1.0) | < 40 mK (@ 25 °C, F#=1.0) | < 35 mK (@ 25 °C, F#=1.0) | < 30mK (@ 25 °C, F#=1.0) | < 35 mK (@ 25 °C, F#=1.0) |
| Image frequency | 25 Hz | 25 Hz | 25 Hz | 50 Hz | 25 Hz |
| Accuracy | ±2 °C / ±2 % | ±2 °C / ±2 % | ±2 °C / ±2 % | ±2 °C / ±2 % | ±2 °C / ±2 % |
| Interface | Type-C USB / Wi-Fi / Bluetooth | Type-C USB / Wi-Fi / Bluetooth | Type-C USB / Wi-Fi / Bluetooth | Type-C USB / Wi-Fi / Bluetooth | |
| Focus mode | manual focus | manual focus | manual focus | manual focus | manual focus |
| Min. focus distance | 0.1 m | 0.1 m | 0.2 m | 0.1 m | 0.3 m |
| Focal length | 6.9 mm | 6.9 mm | 9.7 mm | 6.4 mm | 15 mm |
| Memory | Removable 16 GB micro SD card | Removable 16 GB micro SD card | Removable 64 GB micro SD card | Removable 64 GB micro SD card | Removable 64 GB micro SD card |
| Drop test height | 2 m | 2 m | 2 m | 2 m | 2 m |
| IP protection | IP54 | IP54 | IP54 | IP54 | IP54 |
| Power | 2x interchangeable and rechargeable Li-ion battery, approx. 6 hours operating time each | 2x interchangeable and rechargeable Li-ion battery, approx. 6 hours operating time each | 2x interchangeable and rechargeable Li-ion battery, approx. 6 hours operating time each | 2x interchangeable and rechargeable Li-ion battery, approx. 6 hours operating time each | 2x interchangeable and rechargeable Li-ion battery, approx. 6 hours operating time each |
Complete set
Professional kit in hard case, everything has its place and is well protected.
Interchangeable Battery System
Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
-callouts-(2)-1200x1200-White-min.jpg)
Wide angle(W model) or manual Focus
The 6 M series models provide wide-angle (2x) or manual focus (4x) options. The manual focus with a larger focal length option (without "W") is ideal for electrical, HVAC, and mechanical inspection where focusing on specific components is critical. The "W" series features a fixed focus wide FOV making them ideal for scanning walls, floors, and large-scale items.
Smooth display with 25 Hz
The high frame rate of 25 Hz ensures that thermal video recordings are smooth and jerk-free and that no detail is lost in the recording.
High Image Quality
Features a highly sensitive (NETD < 40 mK, , M30 und M60 < 35 mK) VOx detector to provide clear thermal images.
Manual focus (M11, M20, M30, M60)
By adjusting the manual focus ring, you can clearly see objects as close as 0.1m (0.33 ft) away and still capture sharp images and more accurate results from further away.
4 Image modes
Thermal, Fusion, PIP, and optical modes to suit your preferred view.
Measurement
Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20 °C to 650 °C ( -4 °F to 1,022 °F) with a temperature accuracy up to +/-2 °C (+/-3.6 °F) or +/-2 % of reading.
1-Tap Level & Span
Quickly highlights the area of the image you are interested in by narrowing the span with one tap on the 3.5" LCD touchscreen, instantly improving image contrast and highlighting potential problems.
Wi-Fi
Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.
Laser and LED
The Laser Pointer helps show the position of the center point on actual object. The LED light helps to work in dark areas and illuminate the area of interest.
Multiple Image Annotations
Text or audio annotations within the images instead of taking notes by hand, helping to improve inspection efficiency and productivity.
HIKMICRO Analyzer Software
Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
