Description

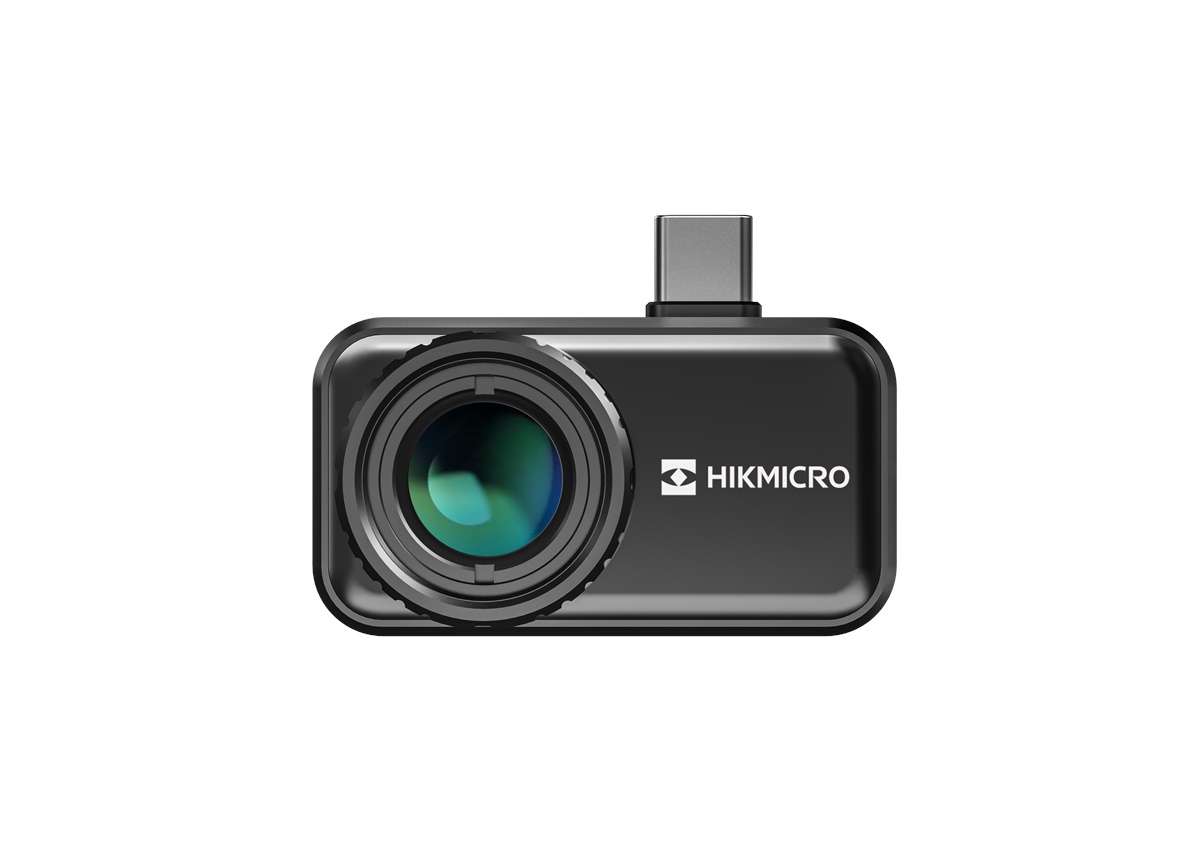

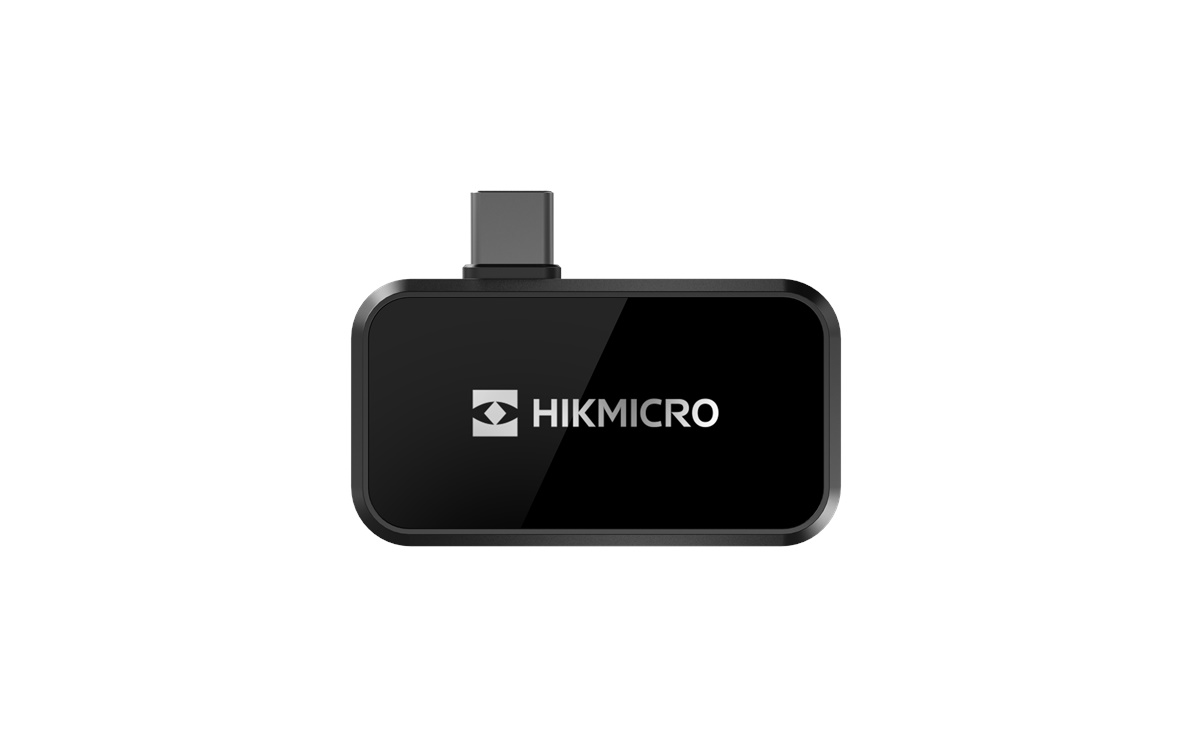

The HIKMICRO Mini3 thermal imaging camera for Android is compact yet powerful. It weighs only 45 g and has a USB-C interface so it can be easily connected to your Android smartphone or tablet to be ready for use within seconds.

The camera is battery-free, so there's no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.

Specification	HIKMICRO Mini2 V2	HIKMICRO Mini2 Plus V2	HIKMICRO Mini3	HIKMICRO MiniX
IR Resolution	256 × 192 (49,152 pixel)	256 × 192 (49,152 pixel)	384 × 288 (110,592 pixel)	256 × 192 (49,152 pixel)
Field of view (FOV)	50° × 37.2°	25° x 18.8°	26° x 19°	37.2° × 50.0°
Object Temperature Range	-20 to 400 °C	-20 to 400 °C	-20 to 650 °C	-20 to 550 °C
NETD	< 40 mK (@ 25 °C, F#=1.0)	< 40 mK (@ 25 °C, F#=1.0)	< 30 mK (@ 25 °C, F#=1.0)	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz	25 Hz	25 Hz / 50 Hz	25 Hz
Accuracy	±2 °C / ±2 %	±2 °C / ±2 %	±2 °C / ±2 %	±2 °C/ 3.6 °F, ±2 %
Interface	Type-C USB / Lightning	Type-C USB / Lightning	Type-C USB	Wireless
Focus mode	Focus free	Manual focus	Manual focus	Manual focus
Min. focus distance	0.2 m (0.66 ft)	0.1 m (0.33 ft)	0.3 m (0.98 ft)	0.05 m (0.164 ft)
Focal length	3.5 mm	6.9 mm	10 mm	3.6 mm
Drop Test Height	1 m	1 m	1 m	1 m
Protection level	IP40	IP40	IP40	IP54
Power	smartphone battery	smartphone battery	smartphone battery	rechargeable LiIon battery
Compatibility	iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices	iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices		iOS (version 14 and later), Android (version 9 and later) smartphones and tablets, or Windows devices

Manual focus

Equipped with a manually focusable lens for inspections from various distances from 30 cm. For viewing small objects, such as electronic components, or for viewing more distant objects, such as electrical or mechanical devices that require a safe distance.

Smooth display with 25 Hz

The high frame rate of 25 Hz ensures that thermal video recordings are smooth and jerk-free and that no detail is lost in the recording.

Battery-free

Mini3 is battery-free so you’ll never need to charge it up or find a charger cable. It’s powered by your phone, designed to run on very little power to maximize your mobile device run time, and ready whenever you are.

Durable and rugged

Designed for where you work, live or relax, the Mini3 features IP40-rated aluminum alloy housings, pass strict drop tests up to 1 meter (3.3 feet), and comes with a three-year warranty.

Mini size

At just 47.6 × 26.6 × 26 mm and weighing only 45 g, it fits in your trouser pocket, tool bag or any other place where you can access it quickly and easily.

Helpful accessories already included

A 40 cm (15.75 in) extending cord connects between your device and the camera allowing remote viewing, and inspection through narrow, confined openings, or difficult-to-reach places. Also included is an 18 mm extended connector to accommodate smartphones or tablets in a protective case. A storage case is provided for storing your camera.

Mini Series APP for smartphone or tablet

Min2Plus is compatible with our free HIKMICRO Viewer for smartphones providing a user-friendly user interface and the link to operating the camera.

Quick temperature measurement

Full screen measurement: center spot, hot spot, cold spot, 3 custom spots and 3 areas.

Accurate temperature measurement

Mini2Plus accurately measures temperatures from -20°C (-4°F) to 350°C (662°F), with a temperature accuracy up to ±2°C (±3.6°F) / ± 2 %.

Clear thermal image

Mini2Plus features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.

15 different color palettes

Find invisible problems more easily.

Multiple professional settings

Providing professional settings like emissivity/distance/range of your thermal camera allows you to get the best thermal imaging images and temperature readings of different surfaces.
