Name: HIKMICRO MiniX
Brand: HIKMICRO
SKU: 6974004646257
Availability: BackOrder
Rating: 5.0 (6 reviews)

Description

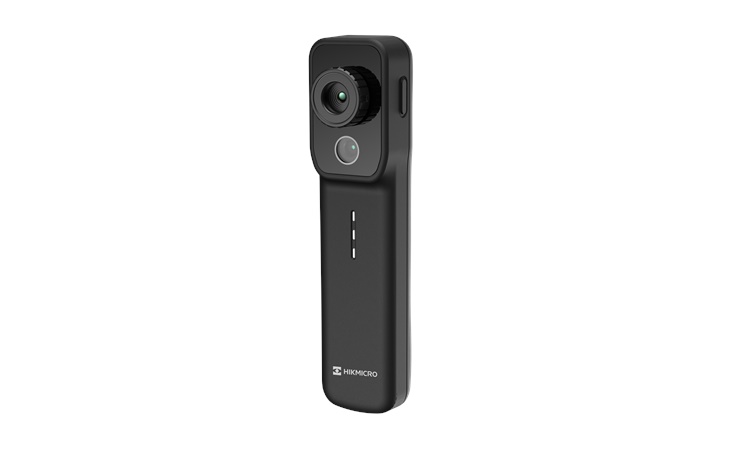

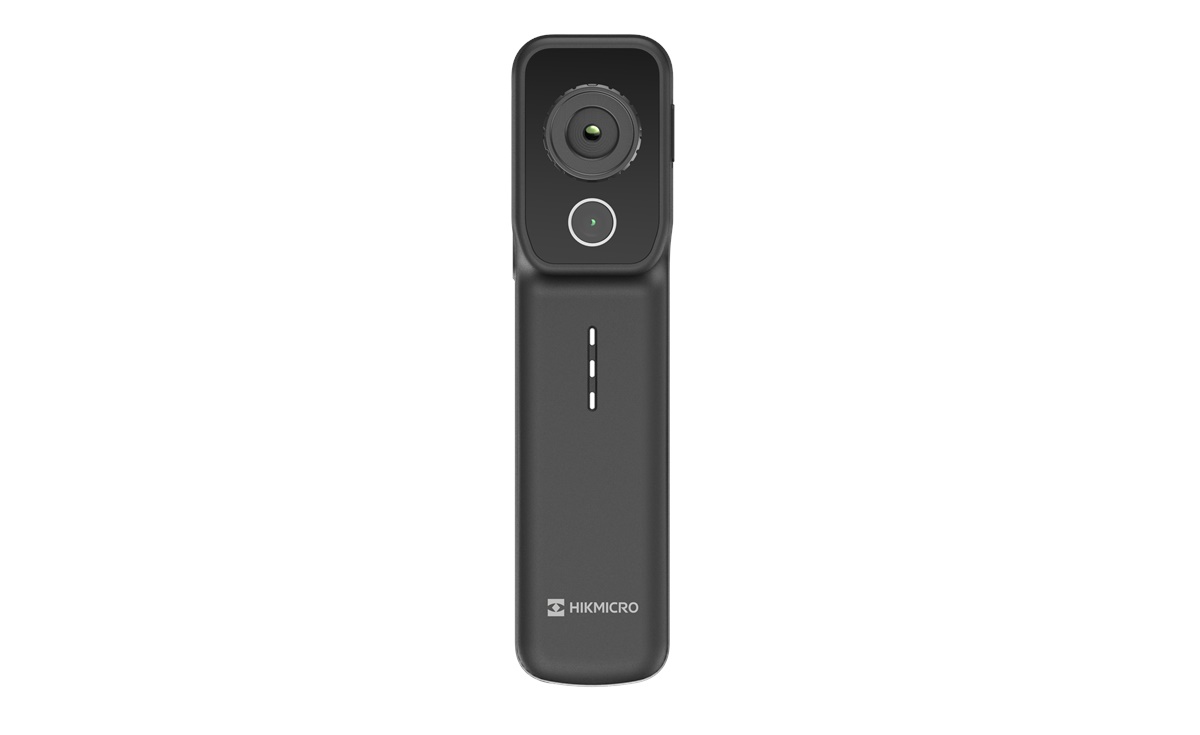

The HIKMICRO innovation MiniX is a versatile thermal imaging tool that wirelessly connects to your smart device. The MiniX provides brackets for flexible installation options, such as clipping it onto your phone or tablet for easy one-handed operation, magnetic wall mounting, or tripod installation for long-term temperature monitoring.

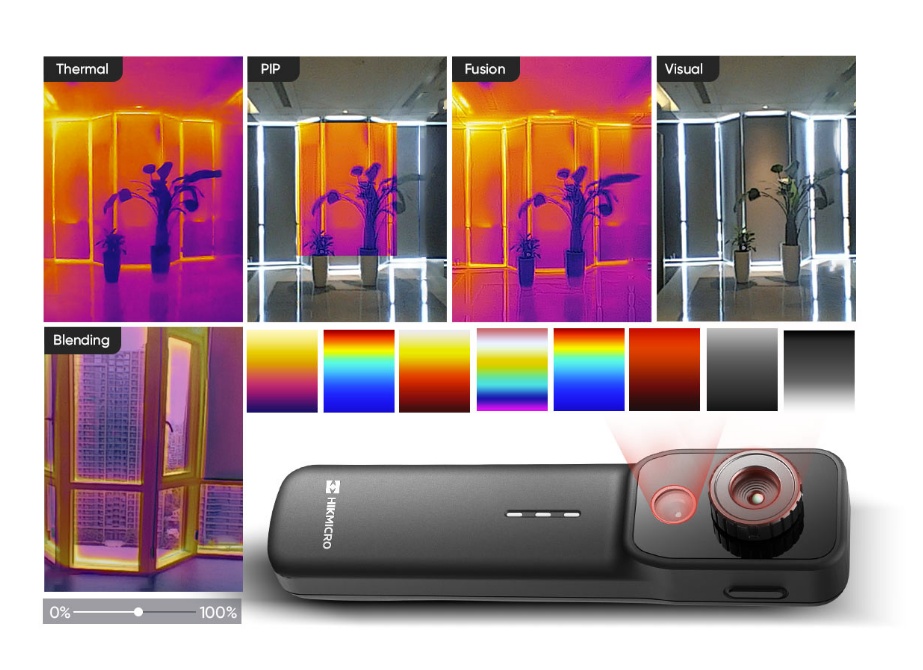

It features a dual-lens, a high-resolution VOx detector, and a 0.3 MP optical camera for added detail. With SuperIR™ and fusion features, you can capture crisp thermal images and quickly locate hidden problems with accurate temperature measurements.

The wide temperature range of -20°C to 550°C makes it ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The MiniX has a 25 Hz frame rate for fast inspections and a Wi-Fi function for real-time image sharing. It's a powerful thermography tool that fits in your pocket, ready whenever you need it.

Specification	HIKMICRO Mini2 V2	HIKMICRO Mini2 Plus V2	HIKMICRO Mini3	HIKMICRO MiniX
IR Resolution	256 × 192 (49,152 pixel)	256 × 192 (49,152 pixel)	384 × 288 (110,592 pixel)	256 × 192 (49,152 pixel)
Field of view (FOV)	50° × 37.2°	25° x 18.8°	26° x 19°	37.2° × 50.0°
Object Temperature Range	-20 to 400 °C	-20 to 400 °C	-20 to 650 °C	-20 to 550 °C
NETD	< 40 mK (@ 25 °C, F#=1.0)	< 40 mK (@ 25 °C, F#=1.0)	< 30 mK (@ 25 °C, F#=1.0)	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz	25 Hz	25 Hz / 50 Hz	25 Hz
Accuracy	±2 °C / ±2 %	±2 °C / ±2 %	±2 °C / ±2 %	±2 °C/ 3.6 °F, ±2 %
Interface	Type-C USB / Lightning	Type-C USB / Lightning	Type-C USB	Wireless
Focus mode	Focus free	Manual focus	Manual focus	Manual focus
Min. focus distance	0.2 m (0.66 ft)	0.1 m (0.33 ft)	0.3 m (0.98 ft)	0.05 m (0.164 ft)
Focal length	3.5 mm	6.9 mm	10 mm	3.6 mm
Drop Test Height	1 m	1 m	1 m	1 m
Protection level	IP40	IP40	IP40	IP54
Power	smartphone battery	smartphone battery	smartphone battery	rechargeable LiIon battery
Compatibility	iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices	iOS (version 14 and later), Android (version 7 and later) smartphones and tablets, or Windows devices		iOS (version 14 and later), Android (version 9 and later) smartphones and tablets, or Windows devices

Adjustable focal lens

Crisp focus from near to far with a 3.6 mm adjustable focal lens for precise details in PCB repair, inspections, and tracking.

Smooth display with 25 Hz

The high frame rate of 25 Hz ensures that thermal video recordings are smooth and jerk-free and that no detail is lost in the recording.

Universal mounting

The MiniX provides brackets for flexible installation options, such as clipping it onto your phone or tablet for easy one-handed operation, magnetic wall mounting, or tripod installation for long-term temperature monitoring.

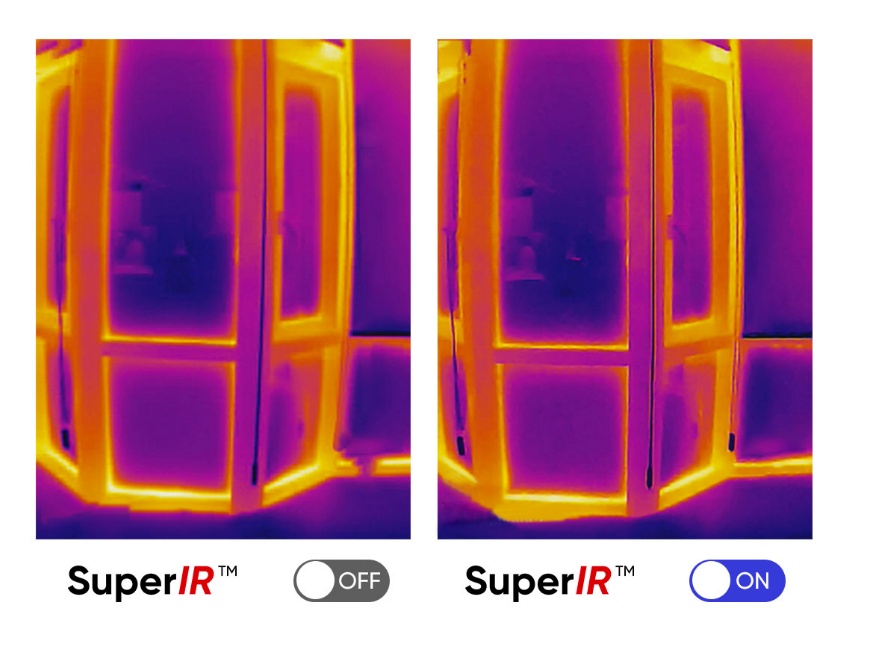

Enhanced Image Quality with SuperIR

HIKIMICRO Mini-X features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.

Durable and rugged

Designed for where you work, live or relax, the MiniX features an IP54-rated housing, passed strict drop tests up to 1 meter (3.3 feet), and comes with a three-year warranty.

Software

HIKMICRO Analyzer online preview feature is particularly valuable, allowing real-time access to thermal imaging data, which significantly enhances efficiency.

HIKMICRO Viewer app allows you to generate reports in the field quickly, customize job site data, adjust measurement settings, add annotations, and share with customers or managers.
