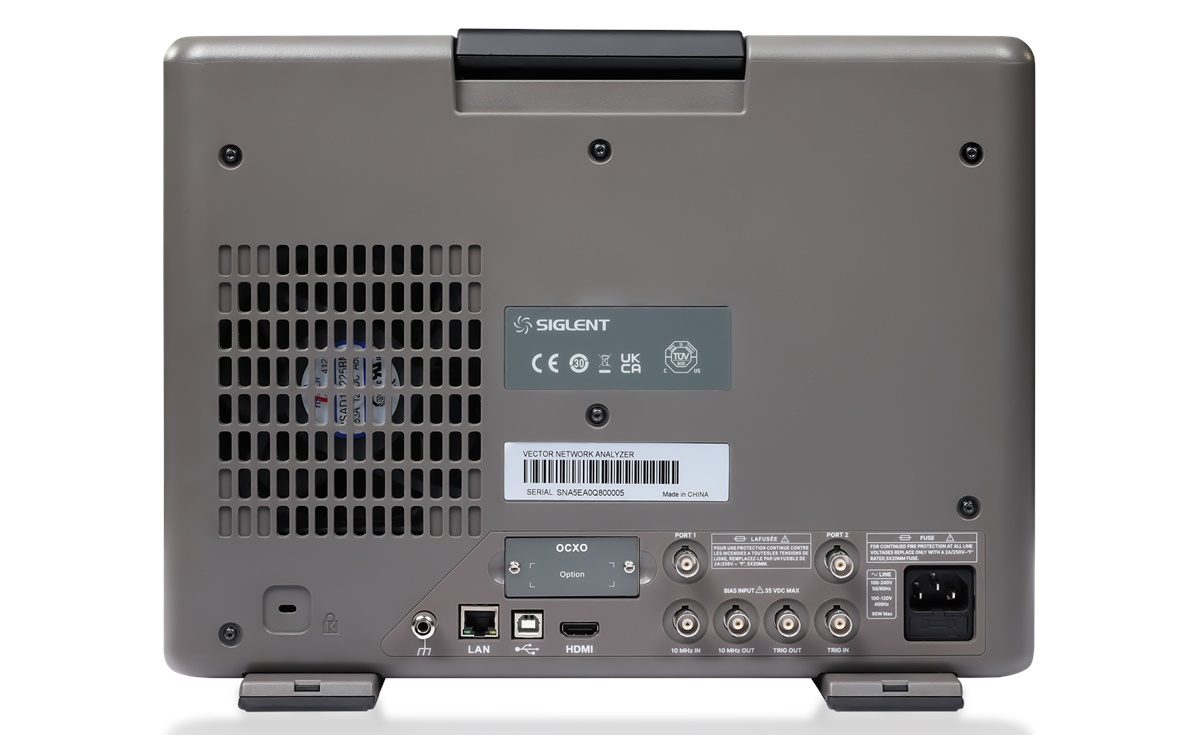

The SNA5000X-E vector network analyser is a compact, cost-effective solution that meets basic RF testing requirements without compromising performance. With a frequency range of 9 kHz to 6.5 GHz and a typical dynamic range of 125 dB, it enables precise and reliable measurements in research and development, education, and production.
Five sweep types are available:
- Linear frequency mode
- Logarithmic frequency mode
- Power sweep mode
- CW time mode;
- Segment sweep mode.
The SNA5000X-E series of vector network analysers (VNAs) also support scattering parameter correction for SOLT, SOLR, TRL, response and enhanced response. This provides greater flexibility for research, development and manufacturing applications.
| Modell | SNA5003X-E | SNA5006X-E |
|---|---|---|
| Frequency range | 9 kHz - 3 GHz | 9 kHz - 6,5 GHz |
| Ports | 2 | 2 |
| Frequency resolution | 1 Hz | 1 Hz |
| Dynamic range | 125 dB | 125 dB |
| Setting range of output level | -40 dBm - +10 dBm | -40 dBm - +10 dBm |
| Video output (HDMI) | ||
| Display | 12.1 inch TFT color LCD with touch screen ; WXGA (1280 x 800) | 12.1 inch TFT color LCD with touch screen ; WXGA (1280 x 800) |
| Types of measurement | scattering-parameter differential-parameter receiver measurement time-domain parameter analysis impedance conversion fixture simulation adapter removal/insertion enhanced time-domain parameter analysis (TDR) spectrum analysis | scattering-parameter differential-parameter receiver measurement time-domain parameter analysis impedance conversion fixture simulation adapter removal/insertion enhanced time-domain parameter analysis (TDR) spectrum analysis |
| BIAS-Tee | support | support |
| Interface | LAN，USB Device，USB Host （USB-GPIB） | LAN，USB Device，USB Host （USB-GPIB） |
| Remote control | SCPI/ Labview/ IVI based on USB-TMC/ VXI-11/ Socket/ Telnet/ WebServer | SCPI/ Labview/ IVI based on USB-TMC/ VXI-11/ Socket/ Telnet/ WebServer |
Embedding- and De-Embedding
Embedding and de-embedding function to exclude measurement errors from e.g. adapters, plugs or cables.optimal for exact and reproducible measurements

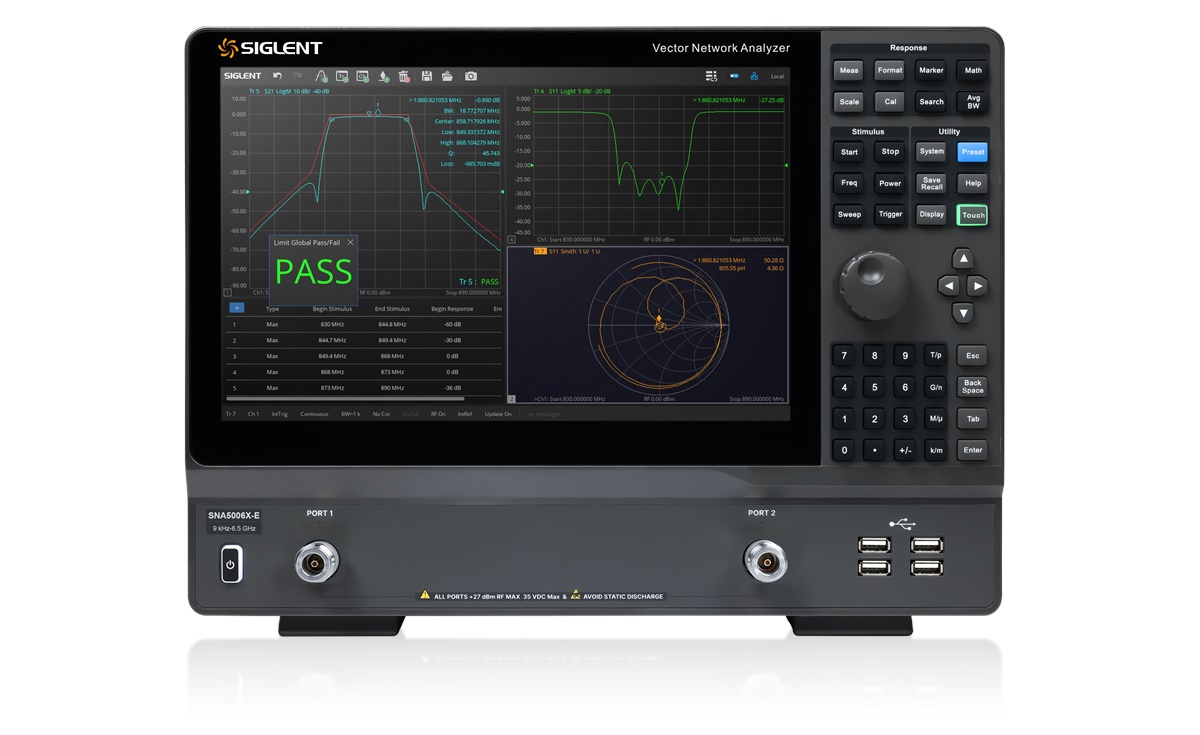

Multi-window display
This special design extra enables you to display multiple windows at the same time.
Muti format display
Each window can display different measurement formats with independent cursor functions. The simultaneous display of multiple data formats is helpful to understand DUT from different angles.
Memory data
Display and compare memory and current data
