Name: Rigol DG4162
Brand: Rigol
Availability: InStock
Rating: 5.0 (8 reviews)

Description

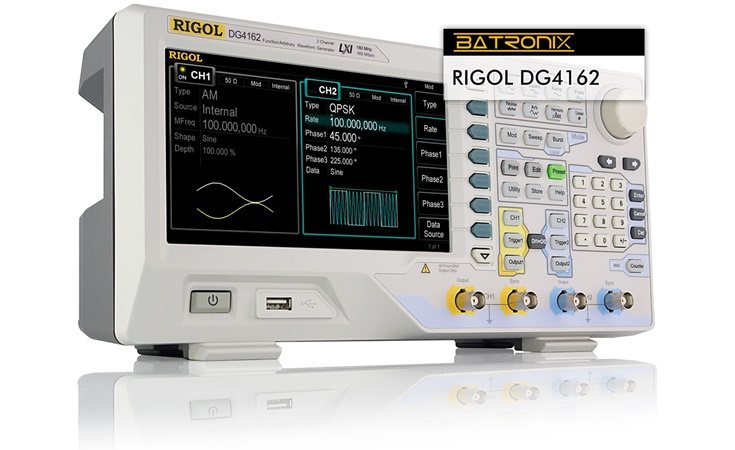

The Rigol DG4162 is two channel function / arbitary waveform generator to create high quality signals up to 160 MHz (Sine). Beside the analog output, the device includes an USB-Host- and an USB-device and a LAN interface.

The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Model	DG4062	DG4102	DG4162	DG4202
Max. Frequency	60 MHz	100 MHz	160 MHz	200 MHz
Max. Sample rate	500 MSa/s	500 MSa/s	500 MSa/s	500 MSa/s
Resolution	1 µHz	1 µHz	1 µHz	1 µHz
Channels	2	2	2	2

Special Features

Filesystem and USB Stick Support
The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.
Integrated Helpsystem
The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.

LCD Screenshots

2 Channels

The extra large display with a diagonal size of 17.18 cm (7") and a resolution of 800 x 480 pixels can easily display the details from both channels of the device. Both channels feature the full range of functions and can be synchronized phase-dependently. This function turns the device into a true dual-channel generator.

Arbitrary signal generation

Almost any waveform can be reproduced by using the arbitrary signal generator. Operation of the device is simplified enormously by the 150 pre-defined waveforms.

Independent analogue and digital modulation

Since the DG4000 series function generators feature two independent channels which can be synchronized, it is also possible to output analogue and digital waveforms simultaneously.

Various sweep functions

The DG4000 signal generators can cycle through defined frequency ranges at a constant amplitude and output various basic waveforms at the same time, such as sine, square, ramp, and arbitrary signals.

Harmonic signals

The function generators are able to generate harmonic overtone signals up to the 16th order, with adjustable parameters such as frequency, amplitude, and phase for all frequencies. Even, odd, all, or user-defined harmonics can be generated.

High resolution frequency counter

These devices feature a standard high resolution frequency counter. It is able to measure the frequency, period, positive and negative pulse length, and the duty cycle, all at frequencies ranging from 1 µHz to 200 MHz.

Frequency counter with Statistics

The frequency counter features a history and statistics function with which signal changes over time can be detected and visualized.

Specifications

Generator	Function / Waveform Generator Rigol DG4162
Display	17,78 cm (7") TFT with 16M colors
Resolution	800 × 480 Pixel
Interfaces	USB-Host (for USB stick i.e. to save/load waveforms) USB-Device for a PC connection LAN
Dimensions	313 mm × 160,7 mm × 116,7 mm (12.32" × 6.33" × 4.59")
Weight	3.2 kg (7.055 lbs)
Supported operation systems	Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)

The complete list of technical specifications can be found in the chapter "Specifications" of the Datasheet.

Function	Function / Waveform Generator Rigol DG4162
Channels	2
Signal Output	Sine, Rectangle, Pulse, Ramp, Noise, Harmonics, 150 predefined arbitrary Waveforms, free definineable arbitrary Waveforms
Vertical Resolution	14 bit
Amplitudes	1 mVpp ~ 10 Vpp (50 Ω)
DC Offset	±5 V (50 Ω)
Sample Rate	500 MSa/s
Frequency Range Sine	1 µHz - 160 MHz
Frequency Range Rectangle	1 µHz - 50 MHz
Frequency Range Pulse	1 µHz - 40 MHz
Frequency Range Ramp	1 µHz - 4 MHz
Frequency Range Harmonics	1 µHz - 80 MHz
Frequency Range Arbitrary	1 µHz - 40 MHz
Frequency Range Noise	120 MHz (-3db)
Resolution	1 µHz
