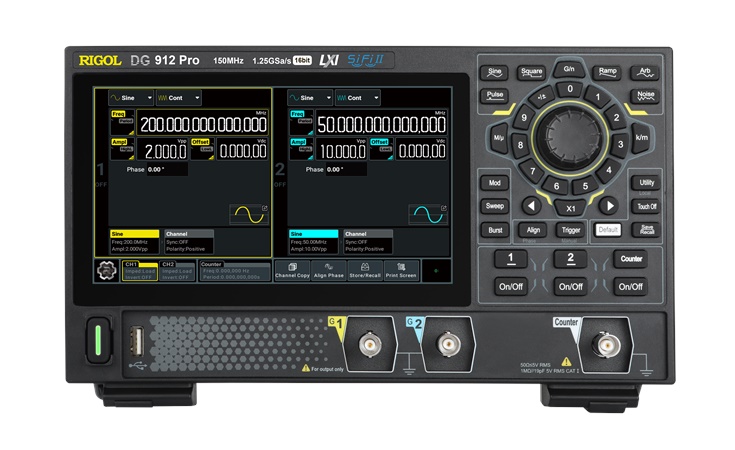

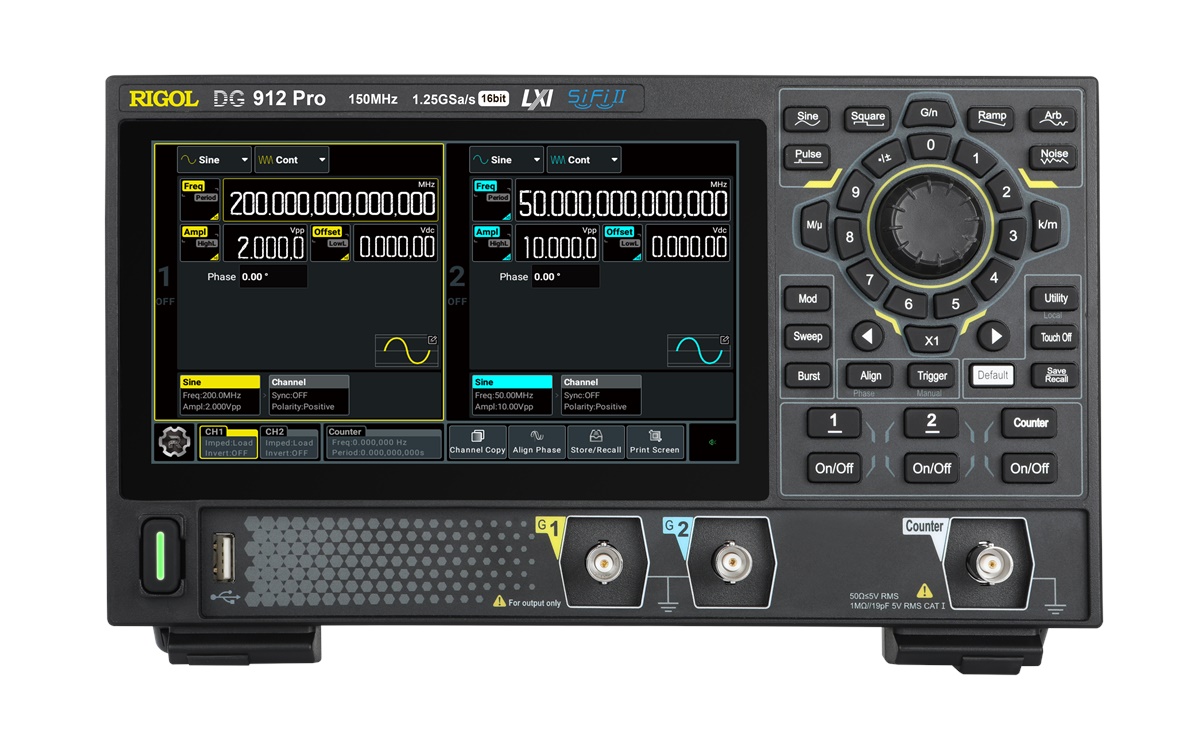

DG900 Pro series Function/Arbitrary Waveform Generator provides up to 1.25 GSa/s sample rate and 16 Mpts/CH memory depth (standard). It is a cost-effective dual-channel function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.
The 7" touch screen allows a clear view on measurement results. Its provides USB and LAN interfaces (standard) as well as the Web Control function for you to control the instrument directly, bringing smoother interaction.
It is equipped with a Type-C interface for power charge. In addition, it has a compact size and supports the attachment to a bracket, saving valuable bench space for engineers.
Model | DG902 Pro | DG912 Pro | DG922 Pro |
---|---|---|---|
Max. Frequency | 70 MHz | 150 MHz | 200 MHz |
Resolution | 1 µHz | 1 µHz | 1 µHz |
Sample Rate | 1,25 GSa/s | 1,25 GSa/s | 1,25 GSa/s |
Vertical Resolution | 16 bits | 16 bits | 16 bits |
Waveform Memory Depth | 16 Mpts (standard), 32 Mpts (optional) | 16 Mpts (standard), 32 Mpts (optional) | 16 Mpts (standard), 32 Mpts (optional) |
Max Amplitude | 10 Vpp < 50 MHz | 10 Vpp < 50 MHz | 10 Vpp < 50 MHz |
Frequency Counter | up to 1 GHz | up to 1 GHz | up to 1 GHz |
Channels | 2 | 2 | 2 |
You will find the specifications of the Rigol DG800 series here.
