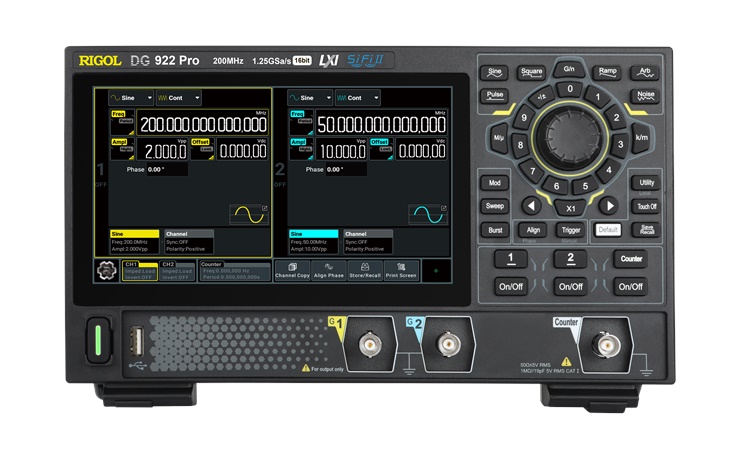

Rigol DG922 Pro

Be the first to write a review

2 channel function / arbitrary waveform generator with 1 μHz to 200 MHz bandwidth, 1.25 GSa/s samplerate, 16 Bit resolution, 16 Mpts memory depth (32 Mpts optional), amplitude range 1 mVpp to 10 Vpp (high impedance), 17,8 cm (7") touchdisplay.

3 years warranty

Nr: DG922 Pro

with FREE shipping within the EU!
Shipping costs outside EU

in 21-40 days in stock.

€ 1,099.- net (VAT Details)

€ 1,307.81 incl. 19% VAT

Description

DG900 Pro series Function/Arbitrary Waveform Generator provides up to 1.25 GSa/s sample rate and 16 Mpts/CH memory depth (standard). It is a cost-effective dual-channel function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.

The 7" touch screen allows a clear view on measurement results. Its provides USB and LAN interfaces (standard) as well as the Web Control function for you to control the instrument directly, bringing smoother interaction.

It is equipped with a Type-C interface for power charge. In addition, it has a compact size and supports the attachment to a bracket, saving valuable bench space for engineers.

Model	DG902 Pro	DG912 Pro	DG922 Pro
Max. Frequency	70 MHz	150 MHz	200 MHz
Resolution	1 µHz	1 µHz	1 µHz
Sample Rate	1,25 GSa/s	1,25 GSa/s	1,25 GSa/s
Vertical Resolution	16 bits	16 bits	16 bits
Waveform Memory Depth	16 Mpts (standard), 32 Mpts (optional)	16 Mpts (standard), 32 Mpts (optional)	16 Mpts (standard), 32 Mpts (optional)
Max Amplitude	10 Vpp < 50 MHz	10 Vpp < 50 MHz	10 Vpp < 50 MHz
Frequency Counter	up to 1 GHz	up to 1 GHz	up to 1 GHz
Channels	2	2	2
