TekBox TBTC1

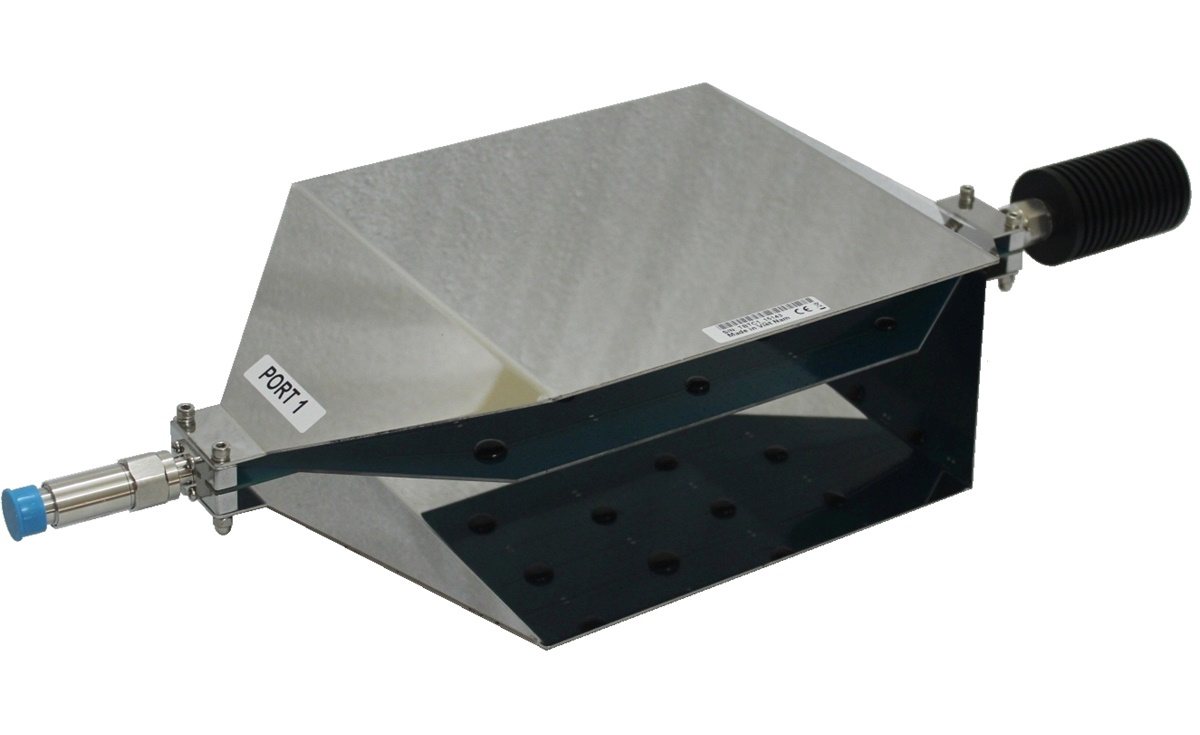

The S-version of the Tekbox TEM-cell, recommended for DUTs up to 120 x 120 x 40 mm and frequencies up to 3 GHz.

2 years warranty

Nr: TBTC1
EAN: 8936120675250

with FREE shipping within the EU!
Shipping costs outside EU

in Stock

€ 659.- net (VAT Details)

€ 784.21 incl. 19% VAT

Specifications	TBTC0	TBTC1	TBTC2	TBTC3	TBGTC1
Frequenzbereich für Störfestigkeitsprüfungen	9 kHz – 3.15 GHz	9 kHz – 2.1 GHz	9 kHz – 1.2 GHz	9 kHz – 700 MHz	9 kHz – 6 GHz
Frequenzbereich für Prüfungen der Störaussendung	9 kHz – 6 GHz	9 kHz – 6 GHz	9 kHz – 6 GHz	9 kHz – 6 GHz	9 kHz – 6 GHz
Dimension (L x B x H)	390 x 100 x 62 mm	390 x 200 x 108 mm	636 x 300 x 205 mm	1038 x 501 x 305 mm	1452 x 780 x 520 mm
Rectangular area under the septum	190 x 70 mm	190 x 130 mm	230 x 280 mm	360 x 480 mm	250 x 250 mm
Septum height	28 mm	50 mm	100 mm	150 mm	230 mm
Maximum volume of the test piece (L x B x H)	114 x 42 x 15 mm	120 x 120 x 40 mm	180 x 180 x 70 mm	300 x 300 x 100 mm	200 x 200 x 150 mm
Interfaces of TEM-Cell	N-Buchsen	N-Buchsen	N-Buchsen	N-Buchsen	N-Buchsen
Nominal cell impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Impedance	377 Ω	377 Ω	377 Ω	377 Ω	377 Ω
Maximum RF input power	10 W	25 W	25 W	25 W	600 W
