Premium R&S® HMC8012 5-¾-Digits Value Instruments Digital Multimeter.
You will find the specifications of the HMC8000 series here.
Key Facts
Measurement range: DC to 100 kHz
Resolution: 1 μV, 100 nA, 1 mΩ, 1 pF, 1 Hz, 0.1 °C/F
Basic accuracy: 0.015 % (DC)
5¾-digit display (480 000 counts)
Simultaneous display of three measurement functions, e.g. DC + AC + statistics
Measurement rate: up to 200 values/s
Measurement functions: V (DC), I (DC), V (AC), I (AC), frequency, DC power, resistance (two and fourwire), temperature (PT100/PT500/PT1000), capacitance, diode and continuity test
Mathematic functions: limit testing, min./max., average, offset, DC power, dB, dBm
Data logging to internal memory or USB flash drive in CSV format
Interfaces: USB-TMC/-VCP, Ethernet, LXI, optional IEEE-488 GPIB (for HMC8012-G already included)
SCPI commands largely compatible with Agilent 34410A (HMC8012-G)

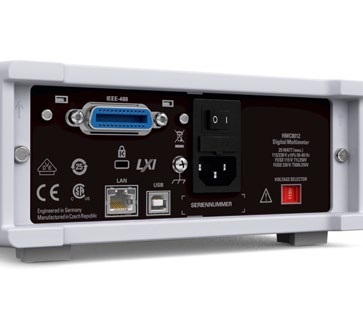

HMC8012-G: HMC8012 incl. IEEE-488 (GPIB) interface
| Modellübersicht | HMC8012 | HMC8012-G |
|---|---|---|
| max. Display | 5¾ Digits | 5¾ Digits |
| Accuracy | 0,015% | 0,015% |
| max. Sampling Rate | 200 Sa/s | 200 Sa/s |
| Standart Interfaces | USB Client, USB Host, LAN | USB Client, USB Host, LAN |
| GPIB | ||
| Size B x H x T | 250 x 220 x 85 mm | 250 x 220 x 85 mm |
| Weight | 2.7 kg | 2.7 kg |
