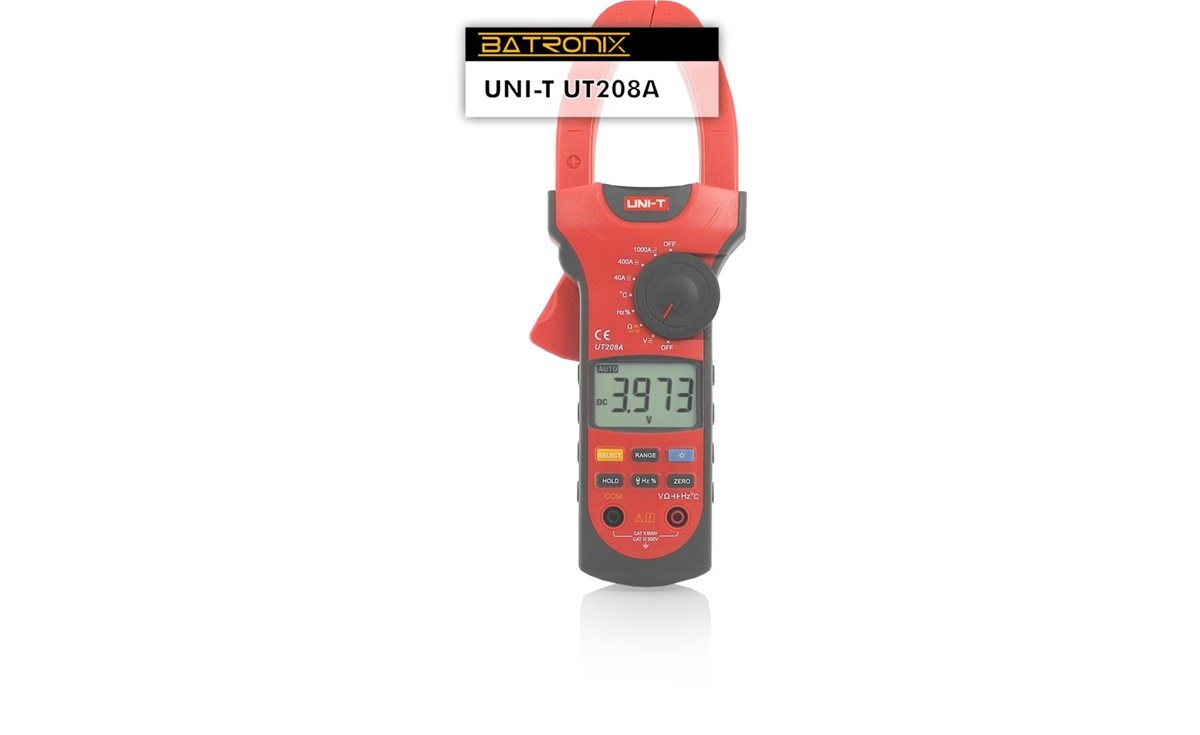

DeutschThe UNI-T digital clamp multimeter UT208A is a 3¾ digits instrument with steady operation, fashionable structure and highly reliable measuring. The meter uses a large scale of integrated circuit with double integrated A/D converter as its core and contains a full range overload protection.
Besides the quality, the measurement devices distinguish by their ease of use, good legibility of the display and sophisticated measurement functions. UNI-T digital multimeters also fulfill the important details of everyday measuring, such as the almost immediate response of the continuity test, reliable measurement results, and conservative use of the battery. If you have ever worked with a digital multimeter from one of the various cheap manufacturers, you are familiar with problems such as continuity tests taking several seconds, noticeable deviation of measurement results if the battery is low, and rapid battery drain...
| Measurement | Range | Accuracy | Resolution |
|---|---|---|---|
| DC Voltage (DCV) | 400.0 mV 4.000 V 40.00 V 400.0 V 1000 V | ±(0.8%+3 dig.) ±(0.8%+1 dig.) ±(0.8%+1 dig.) ±(0.8%+1 dig.) ±(1.0%+3 dig.) | 0.1 mV 1 mV 10 mV 100 mV 1 V |
| AC Voltage (ACV) 40 Hz - 400 Hz | 400.0 mV 4.000 V 40.00 V 400.0 V 750 V | ±(1.2%+20 dig.) ±(1.2%+3 dig.) ±(1.2%+3 dig.) ±(1.2%+3 dig.) ±(1.2%+5 dig.) | 0.1 mV 1 mV 10 mV 100 mV 1 V |
| DC Current (DCA) | 40.00 A 400.0 A 1000 A | ±(2.0%+5 dig.) ±(2.0%+3 dig.) ±(1.5%+5 dig.) | 10 mA 100 mA 1 A |
| AC Current (ACA) 50 Hz - 60 Hz | 40.00 A 400.0 A 1000 A | ±(2.5%+8 dig.) ±(2.5%+5 dig.) ±(2.0%+2 dig.) | 10 mA 100 mA 1 A |
| Resistance | 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ | ±(1.2%+2 dig.) ±(1.0%+2 dig.) ±(1.0%+2 dig.) ±(1.0%+2 dig.) ±(1.2%+2 dig.) ±(1.5%+2 dig.) | 0.1 Ω 1 Ω 10 Ω 100 Ω 1 kΩ 10 kΩ |
| Frequency | 400.0 Hz 4.000 kHz 40.00 kHz 400.0 kHz 4.000 MHz 40.00 MHz | ±(0.1%+3 dig.) ±(0.1%+3 dig.) ±(0.1%+3 dig.) ±(0.1%+3 dig.) ±(0.1%+3 dig.) ±(0.1%+3 dig.) | 0.1 Hz 1 Hz 10 Hz 100 Hz 1 kHz 10 kHz |
| Capacitance | 4.000 nF 40.00 nF 400.0 nF 4.000 µF 40.00 µF 100.0 µF | nur als Richtwert ±(4.0%+3 dig.) ±(4.0%+3 dig.) ±(4.0%+3 dig.) ±(4.0%+3 dig.) ±(5.0%+10 dig.) | 0.001 nF 0.01 nF 0.1 nF 0.001 µF 0.01 µF 0.1 µF |
| Temperature °C 1) | -40°C ~ 0°C 0°C ~ 400°C 400°C ~ 1000°C | ±(8.0%+5 dig.) ±(2.5%+3 dig.) ±(3.0%+3 dig.) | 1°C 1°C 1°C |
1)The included K-type temperature probe can be used for temperatures up to 230°C, do not use it with higher temperatures!
| Function | Digital Multimeter UT208A |
|---|---|
| RS232 Interface | |
| True RMS (TRMS) | |
| Auto Range | |
| Manual Range | |
| Data Logging | |
| Data Recall | |
| Diode test | |
| Transistor test | |
| Continuity test | (very fast reaction time below 0.1 seconds) |
| Low battery indication | |
| Relatively measuring | (Zero function) |
| Data hold | |
| Min-Max / Peak hold | |
| Auto power-off | |
| Overload protection | |
| Shockproof Protection | |
| Backlight | |
| "Analogue" Bargraph | |
| Max. Reading | 3999 (3¾digits) |
| LCD Size | 47 mm x 30 mm |
| Sampling rate | Approx. 3 times / second |
| Details | Digital Multimeter UT208A |
|---|---|
| Battery | 9 V Block Battery (included in delivery) |
| Safety standard | CAT II 600 V CAT III 300 V |
| Dimensions | 28.5 cm × 10.5 cm × 4.5 cm (11.22" × 4.13" × 1.77") |
| Weight without accessories / packaging | 533 g (with battery) (1.18 lbs) |
| Weight with accessories / packaging | 1385 g (3.05 lbs) |
| Warranty | 2 Years |
Downloads
Manual
UNI-T UT208A Manual
Language: English
File Size: 3.53 MiB
Release Date: 27.12.2018
UT207 & UT208 Manual
Language: English
File Size: 3.53 MiB
Release Date: 27.12.2018
