The TBL5016-3 is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9 kHz to 30MHz, according to the CISPR 16-1-2 standard. The device is designed for testing 3-phase and single-phase, AC-powered equipment with supply voltages up to a maximum 450V/260V and 16A. Conducted noise can be measured on each phase and on the neutral conductor. The TBL5016-3 has separate RF outputs for each phase and neutral and consequently can be coupled with the TBLM1 to split the emissions in its common mode and differential mode components.
The single-phase DUT socket is available in country-specific variants.
SPECIFICATIONS
- Frequency range: 9 kHz to 30 MHz
- Impedance: 50 Ω / (50 µH + 5 Ω)
- Artificial hand: 220 pF + 511 Ω
- Switchable PE: 50 Ω / 50 µH
- 250 µH pre-filter
- Separate RF outputs for each line and neutral
- Air core inductors
- Line voltage: max. 540 V/260 V / 50 – 60 Hz, CAT ‖
- Max. current per line and neutral: 16A @ 23 °C each
- 3-phase DUT socket: CEE/IEC60309, 3L+N+PE, 16 A, female
- Single-phase DUT socket: country specific

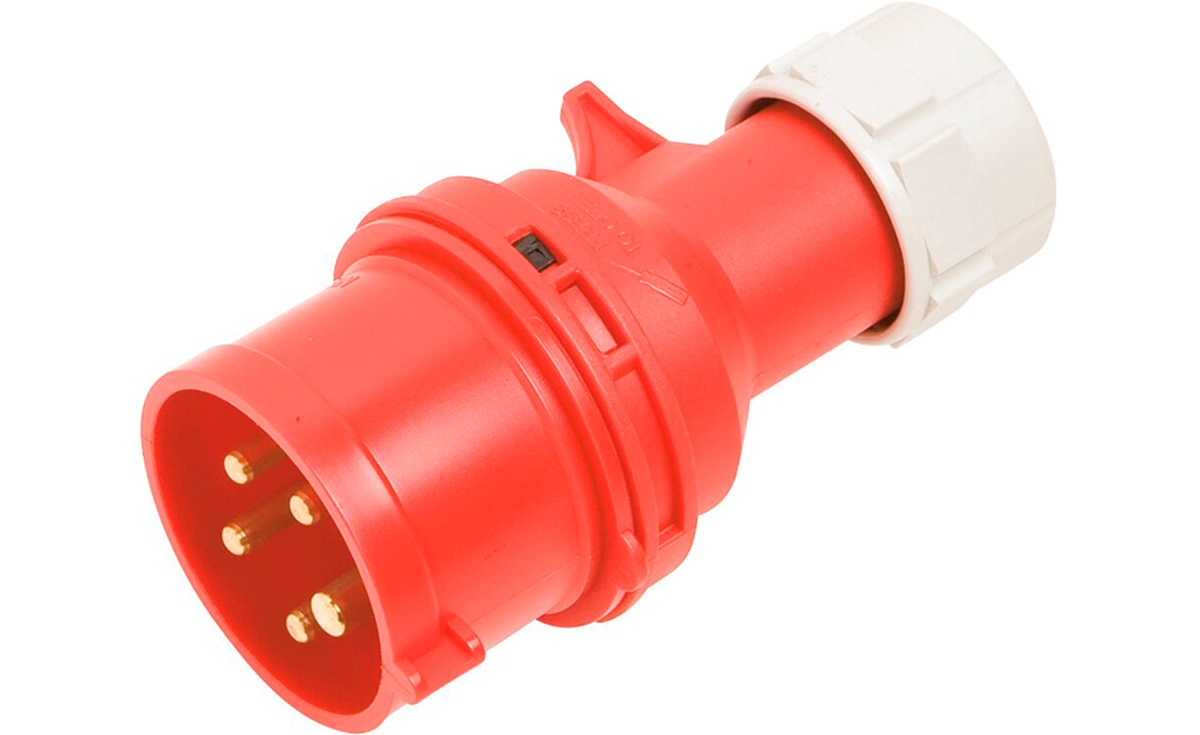

- Power connector: CEE/IEC60309, 3L+N+PE, 16 A, male
- Measurement connectors: 50 Ω BNC
- Operating Temperature Range: +5 °C … + 40 °C; 5 % to 80 % RH
- Safety: Safety Class I, IEC 1010-01
APPLICATION
- EMC pre-compliance testing of conducted noise
Model Overview
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBL00705-2 | 0.7µH//50Ω | 30 Hz – 500 MHz | 2 | 5A | 60V nominal, Component rating: 100V | 400mΩ serial resistor |
| ТВL0110-2 | 1µH//50Ω | 30 Hz – 500 MHz | 2 | 10A | 60V nominal, Component rating: 100V | 100mΩ serial resistor |
| TBL0225-2 | 2µH//50Ω | 10 Hz – 200 MHz | 2 | 25A | 60V nominal, Component rating: 100V | 100mΩ serial resistor |
| TBOH01 | 5µH//50Ω | 150 kHz – 108 MHz | 1 | 10A | 60V nominal, Component rating: 200V | EOL |
| TBL0510-1 | 5µH//50Ω | 10 kHz – 400 MHz | 1 | 10A | 60V nominal, Component rating: 200V | |
| TBL0550-1 | 5µH//50Ω | 150 kHz – 108 MHz | 1 | 50A | 60V nominal, Component rating: 250V | |
| TBL05100-1 | 5µH//50Ω | 150 kHz – 108 MHz | 1 | 100A | 60V nominal, Component rating: 350V AC@50/60Hz 600V DC | Can be jumpered to various standards |
| TBL05100-1B | 5µH//50Ω | 150 kHz – 108 MHz | 1 | 100A | Component rating: 0-500V @ 50/60 Hz 250V AC @ 400Hz 1000V DC | Can be jumpered to various standards |
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBL5016-1 | 50µH//50Ω (50µH+5Ω)//50Ω | 150 kHz – 30 MHz | 1 | 16A | 250V | can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter |
| TBL50100-1 | 50µH//50Ω (50µH+5Ω)//50Ω | 150 kHz – 30 MHz | 1 | 100A | 250V | can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter |
| TBL5008-2B | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 8A | 250V AC 50/60 Hz or DC | separate RF outputs enabling LISN-Mate connectivity; Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5008-2C | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 8A | 250V AC 50/60 Hz or DC | Filter/Limiter/Attenuator switchable Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-2B | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 16A | 250V AC 50/60 Hz or DC | separate RF outputs enabling LISN-Mate connectivity; Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-2C | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 16A | 250V AC 50/60 Hz or DC | Filter/Limiter/Attenuator switchable Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 16A | 465V/270V | Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5032-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 32A | 465V/270V | Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5063-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 63A | 690V/400V 50Hz/60Hz | Artificial hand connection PE switchable: 50Ω//50µH |
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBLM2 | | 150 kHz – 110 MHz | | | | LISN-Mate |
| TBLDC32-2 | 150 Ohm | 9 kHz – 30 MHz | 2 | 32A | 1000V DC | 150 Ohm DC LISN A, B, Common-Mode Differential-Mode operation |
| TBLVHF-B | 50 Ohm +-10% | 30 MHz – 300 MHz | 2 | 16A | 250V DC – 400 Hz | Balanced VHF LISN |
| TBISN-T4 | 150 Ohm | 150 kHz – 30 MHz | 2 balanced pairs | 250mA | 60V AC, 100V DC | 2 pcs D-Sub 25 to RJ45 adapter |
Downloads
Datasheet
TBL5016-3 Datasheet
Language: English
Version: V1.1
File Size: 1.15 MiB
Release Date: 03.02.2022
Guide
EMC pre compliance testing guide EN
Language: English
Version: V1.2
File Size: 406.81 KiB
Release Date: 30.04.2018
This document focusses on measurement equipment and methods, limits and the relevant standards of conducted noise measurement on the power supply lines of products. The document tries to reduce the details to those necessary to carry out pre-compliance measurements in house with modest equipment.
EMC pre compliance testing guide German
Language: German
Version: V1.7
File Size: 402.40 KiB
Release Date: 12.10.2022
This document focusses on measurement equipment and methods, limits and the relevant standards of conducted noise measurement on the power supply lines of products. The document tries to reduce the details to those necessary to carry out pre-compliance measurements in house with modest equipment.
