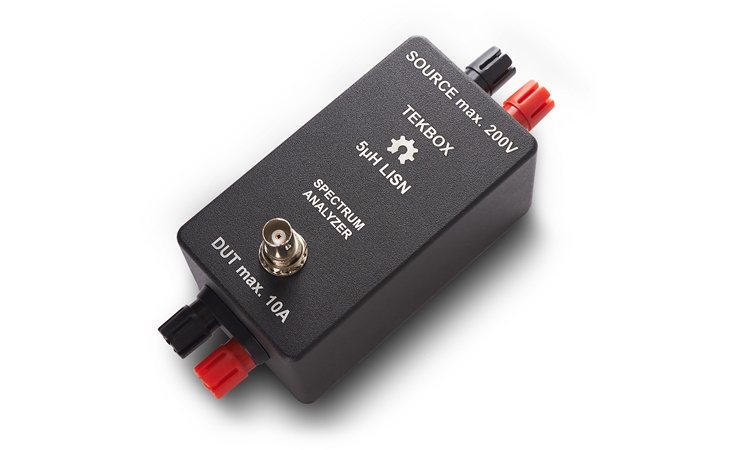

The 5μH Line Impedance Stabilization Network (LISN) type TBOH01 is needed to measure line noise from DC powered devices. The device has been designed for EMC precompliance tests according to CISPR 25 in the frequency range 150 kHz to 110 MHz developed according to CISPR 25, ISO 7637-2, ISO11452-2 / 4/5 and with restrictions DO-160 / ED-14G. The LISN is looped into the supply line of the DUT (Device-Under-Test). Conducted disturbances that can be found on the supply of the DUT, can be measured via the BNC connector in conjunction with a spectrum analyzer or test receiver. The TBOH01 can also be used to inject interference signals into the supply line of the DUT. Input (connection SOURCE) and output (DUT connection) of the LISN are decoupled via a 5 μH air coil.
Features:
- Frequency range: 150 kHz - 110 MHz
- DC-resistance: 40 mΩ
- Max. Current: 10 A
- Nominal operating voltage: 0 - 60 V
- Integrated overvoltage protection
You will find the specifications of the TBOH01 LISN here.
Model Overview
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBL00705-2 | 0.7 µH//50 Ω | 30 Hz – 500 MHz | 2 | 5 A | 60 V nominal, Component rating: 100 V | 400 mΩ serial resistor |
| ТВL0110-2 | 1 µH//50 Ω | 30 Hz – 500 MHz | 2 | 10 A | 60 V nominal, Component rating: 100 V | 100 mΩ serial resistor |
| TBL0225-2 | 2 µH//50 Ω | 10 Hz – 200 MHz | 2 | 25 A | 60 V nominal, Component rating: 100 V | 100 mΩ serial resistor |
| TBL0510-1 | 5 µH//50 Ω | 10 kHz – 400 MHz | 1 | 10 A | 60 V nominal, Component rating: 200 V | |
| TBL0550-1 | 5 µH//50 Ω | 150 kHz – 108 MHz | 1 | 50 A | 60 V nominal, Component rating: 250 V | |
| TBL0550-1B | 5 µH//50 Ω | 10 kHz – 400 MHz | 1 | 50 A | 0 – 250 V AC @ 50/60 Hz, 130 V AC @ 400 Hz, 250 V DC 450 CV DC (components) | Can be jumpered to various standards |
| TBL05100-1C | 5 µH//50 Ω | 10 kHz – 400 MHz | 1 | 100 A | 0 – 500 V AC @ 50/60 Hz, 250 V AC @ 400 Hz, 1500 V DC (components) | Can be jumpered to various standards |
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBL5016-1 | 50µH//50Ω (50µH+5Ω)//50Ω | 150 kHz – 30 MHz | 1 | 16A | 250V | can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter |
| TBL5032-1 | 50Ω/50µH+5Ω//50Ω/50µH | 10 kHz - 100 MHz | 1 | 32 A | 500 V DC / 270 V AC (50/60 Hz) 120 V AC (400 Hz) | can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter |
| TBL50100-1B | 50Ω/50µH+5Ω//50Ω/50µH | 150 kHz – 30 MHz | 1 | 82A | 0 – 500V DC; 0 – 270V AC (50/60 Hz), 0 – 120V AC (400 Hz) | can be jumpered 50µH//50Ω or (50µH+5Ω)//50Ω no 250uH pre-filter |
| TBL501000-1 | 50µH // 50 Ω | 100 kHz – 30 MHz | 1 | 1000 A | 0 – 1000 V DC; 0 – 500 V AC (50/60 Hz) | |
| TBL5008-2B | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 8A | 250V AC 50/60 Hz or DC | separate RF outputs enabling LISN-Mate connectivity; Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5008-2C | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 8A | 250V AC 50/60 Hz or DC | Filter/Limiter/Attenuator switchable Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-2B | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 16A | 250V AC 50/60 Hz or DC | separate RF outputs enabling LISN-Mate connectivity; Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-2C | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 2 | 16A | 250V AC 50/60 Hz or DC | Filter/Limiter/Attenuator switchable Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5016-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 16A | 465V/270V | Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5032-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 32A | 465V/270V | Artificial hand connection PE switchable: 50Ω//50µH |
| TBL5063-3 | (50µH+5Ω)//50Ω | 9 kHz – 30 MHz | 3 | 63A | 690V/400V 50Hz/60Hz | Artificial hand connection PE switchable: 50Ω//50µH |
| Model | Impedance | Frequency Range | Path | Max. Current | Max. Voltage | Additional Features |
|---|---|---|---|---|---|---|
| TBLM2 | | 150 kHz – 110 MHz | | | | LISN-Mate |
| TBLDC32-2 | 150 Ohm | 9 kHz – 30 MHz | 2 | 32A | 1000V DC | 150 Ohm DC LISN A, B, Common-Mode Differential-Mode operation |
| TBLVHF-B | 50 Ohm +-10% | 30 MHz – 300 MHz | 2 | 16A | 250V DC – 400 Hz | Balanced VHF LISN |
| TBISN-T4 | 150 Ohm | 150 kHz – 30 MHz | 2 balanced pairs | 250mA | 60V AC, 100V DC | 2 pcs D-Sub 25 to RJ45 adapter |
