TekBox TBL0225-2

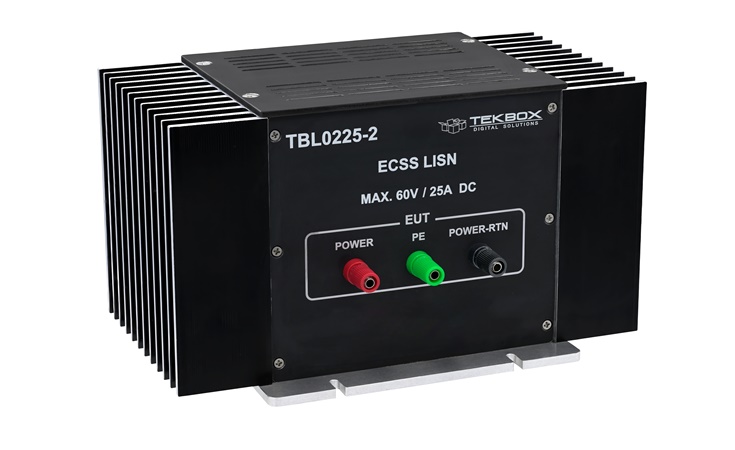

TBL0225-2 Measurement Devices by TekBox, Front view
TBL0225-2 Measurement Devices by TekBox, Front viewTBL0225-2 Measurement Devices by TekBox, Rear view
Be the first to write a review

The TBL0225-2 LISN is a two-paths 50 Ω // 2 µH LISN characterized from 10Hz – 200 MHz. It is based on the standard ECSS-E-ST-20-07C Rev 1.

  • LISN type: V-AMN, 50 Ω // 2 µH
  • Characterized frequency range: 10 Hz – 200 MHz
  • DC Resistance: 100 mΩ per path
  • Maximum current: 25 A continuous
  • Operating voltage range: 0 – 60V DC
  • EUT / SOURCE terminals: 4 mm banana sockets
  • Dimensions: W 260 mm x L 140 mm x H 150 mm
  • Weight: 4.1 kg
2 years warranty

No.: TBL0225-2

with FREE shipping within the EU!
Shipping costs outside EU
in 31-60 days after order in stock.
1,950.- € net (VAT Details)
2,320.50 € incl. 19% VAT

The TBL0225-2 LISN is a two-paths 50 Ω // 2 µH LISN characterized from 10Hz – 200 MHz. It is based on the standard ECSS-E-ST-20-07C Rev 1. The standard provides the general schematic of the LISN and allows for some flexibility in component values. The TBL0225-2 implementation aims for use in EMC measurements of satellites and spacecraft. The LISN does not have an output for conducted emission measurements; instead, it merely functions as a network for line impedance stabilisation. An RF current monitoring probe is used to measure conducted emissions, according to the standard.

The 2 µH inductor mimics the typical inductance of the supply wire harness in spacecraft or satellites.

The LISN is inserted into the power line and power return line of the EUT.


Specifications

  • LISN type: V-AMN, 50 Ω // 2 µH
  • Characterized frequency range: 10 Hz – 200 MHz
  • DC Resistance: 100 mΩ
  • Maximum current: 25 A continuous
  • Operating voltage range: 0 – 60V DC
  • EUT / SOURCE terminals: 4 mm banana sockets
  • Dimensions: W 260 mm x L 140 mm x H 150 mm
  • Weight: 4.1 kg


Modellübersicht


Modell Impedanz Frequenzbereich Kanäle Max. Strom Max. Spannung EUT-Buchse Zusätzliche Funktionen
TBL00705-2 0.7µH//50Ω 30 Hz – 500 MHz 2 5A 60V nominal, Komponenten-Rating: 100V 4mm (Banana) 400mΩ Reihenwiderstand
ТВL0110-2 1µH//50Ω 30 Hz – 500 MHz 2 10A 60V nominal, Komponenten-Rating: 100V 4mm (Banana) 100mΩ Reihenwiderstand
TBL0225-2 2µH//50Ω 10 Hz – 200 MHz 2 25A 60V nominal, Komponenten-Rating: 100V 4mm (Banana) 100mΩ Reihenwiderstand
TBOH01 5µH//50Ω 150 kHz – 108 MHz 1 10A 60V nominal, Komponenten-Rating: 200V 4mm (Banana) Auslaufmodell
TBL0510-1 5µH//50Ω 10 kHz – 400 MHz 1 10A 60V nominal, Komponenten-Rating: 200V 4mm (Banana)
TBL0550-1 5µH//50Ω 150 kHz – 108 MHz 1 50A 60V nominal, Komponenten-Rating: 250V Phoenix Hochstrom
TBL05100-1 5µH//50Ω 150 kHz – 108 MHz 1 100A 60V nominal, Komponenten-Rating: 350V AC@50/60Hz 600V DC Phoenix Hochstrom Umschaltbar auf verschiedene Standards
TBL05100-1B 5µH//50Ω 150 kHz – 108 MHz 1 100A Komponenten-Rating: 0-500V @ 50/60 Hz 250V AC @ 400Hz 1000V DC Phoenix Hochstrom Umschaltbar auf verschiedene Standards

Modell Impedanz Frequenzbereich Kanäle Max. Strom Max. Spannung EUT-Buchse Zusätzliche Funktionen
TBL5016-1 50µH//50Ω (50µH+5Ω)//50Ω 150 kHz – 30 MHz 1 16A 250V Phoenix Hochstrom Umschaltbar 50µH//50Ω oder
(50µH+5Ω)//50Ω ohne 250µH Vorfilter
TBL50100-1 50µH//50Ω (50µH+5Ω)//50Ω 150 kHz – 30 MHz 1 100A 250V Phoenix Hochstrom Umschaltbar 50µH//50Ω oder
(50µH+5Ω)//50Ω ohne 250µH Vorfilter
TBL50100-1 (50µH+5Ω)//50Ω 9 kHz – 30 MHz 2 8A 250V AC 50/60 Hz oder DC Landesspezifische Steckdose Separate HF-Ausgänge für LISN-Mate Verbindung;
Künstliche Handverbindung PE schaltbar: 50Ω//50µH
TBL5008-2B (50µH+5Ω)//50Ω 9 kHz – 30 MHz 2 8A 250V AC 50/60 Hz oder DC Landesspezifische Steckdose Filter/Begrenzer/Dämpfer schaltbar
Künstliche Handverbindung PE schaltbar: 50Ω//50µH
TBL5008-2C (50µH+5Ω)//50Ω 9 kHz – 30 MHz 2 8A 250V AC 50/60 Hz oder DC Landesspezifische Steckdose Filter/Begrenzer/Dämpfer schaltbar
Künstliche Handverbindung PE schaltbar: 50Ω//50µH
TBL5016-2B (50µH+5Ω)//50Ω 9 kHz – 30 MHz 2 16A 250V AC 50/60 Hz oder DC Landesspezifische Steckdose Separate HF-Ausgänge für LISN-Mate Verbindung;
Künstliche Handverbindung PE schaltbar: 50Ω//50µH
TBL5016-2C (50µH+5Ω)//50Ω 9 kHz – 30 MHz 2 16A 250V AC 50/60 Hz oder DC Landesspezifische Steckdose Filter/Begrenzer/Dämpfer schaltbar
Künstliche Handverbindung PE schaltbar: 50Ω//50µH
TBL5016-3 (50µH+5Ω)//50Ω 9 kHz – 30 MHz 3 16A 465V/270V CEE/EC60309 Künstliche Handverbindung PE schaltbar: 50Ω//50µH
TBL5032-3 (50µH+5Ω)//50Ω 9 kHz – 30 MHz 3 32A 465V/270V CEE/EC60309 Künstliche Handverbindung PE schaltbar: 50Ω//50µH
TBL5063-3 (50µH+5Ω)//50Ω 9 kHz – 30 MHz 3 63A 690V/400V 50Hz/60Hz CEE/EC60309 Künstliche Handverbindung PE schaltbar: 50Ω//50µH

Modell Impedanz Frequenzbereich Kanäle Max. Strom Max. Spannung EUT-Buchse Zusätzliche Funktionen
TBLM2
150 kHz – 110 MHz
LISN-Mate
TBLDC32-2 150 Ohm 9 kHz – 30 MHz 2 32A 1000V DC 4mm, Sicherheit 150 Ohm DC LISN A, B,
Common-Mode Differential-Mode Betrieb
TBLVHF-B 50 Ohm +-10% 30 MHz – 300 MHz 2 16A 250V DC – 400 Hz Landesspezifisch Ausgewogenes VHF-LISN
TBISN-T4 150 Ohm 150 kHz – 30 MHz 2 symmetrische Paare 250mA 60V AC, 100V DC D-Sub 25 2 Stück D-Sub 25 auf RJ45 Adapter

Downloads

Datasheet

Adobe PDF

TBL0225-2 Datasheet

Language: English
Version: V1.024
File Size: 1.35 MiB
Release Date: 31.01.2023

Manual

Adobe PDF

TBL0225-2 Manual

Language: English
Version: V1.0
File Size: 1.35 MiB
Release Date: 31.01.2024

Guide

Adobe PDF

EMC pre compliance testing guide German

Language: German
Version: V1.7
File Size: 402.40 KiB
Release Date: 12.10.2022

This document focusses on measurement equipment and methods, limits and the relevant standards of conducted noise measurement on the power supply lines of products. The document tries to reduce the details to those necessary to carry out pre-compliance measurements in house with modest equipment.
