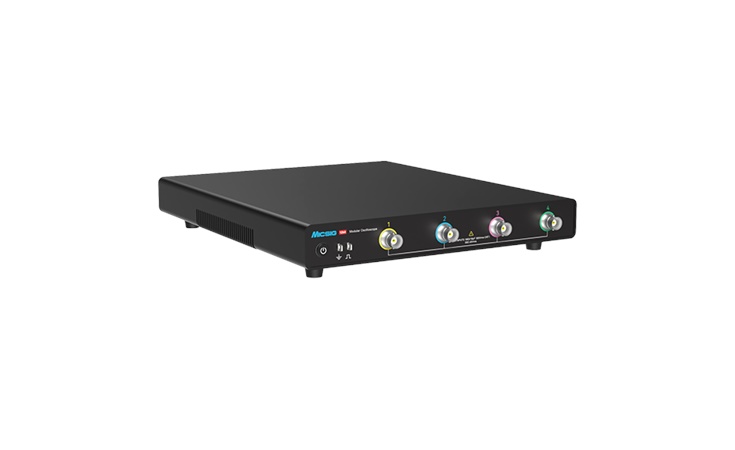

The high-resolution 12-bit oscilloscopes of the MO34 series offer 4 analogue channels, 250, 350 or 500 MHz bandwidth, a 3 GSa/s sampling rate and a memory depth of 360 Mpts.
The Micsig MO34-350 can output the measurement results via any display using HDMI. The devices are stackable and can be expanded in a modular fashion. For example, by using additional devices, up to 32 synchronised channels can be achieved, which are output together in a single user interface.
The device can also be remotely controlled via a PC using Ethernet or SFTP+. Either the free PC software can be used or the device can be integrated into a user-defined programme using SCPI commands. With its small dimensions of a maximum thickness of 3 cm, the device is ideal for use in automated test scenarios. The modular expandability also offers an ideal opportunity to meet increasing test requirements cost-effectively without having to purchase a completely new device.
| Model | MO34-250 | MO34-350 | MO34-500 |
|---|---|---|---|
| Channels | 4 | 4 | 4 |
| Bandwidth | 250 MHz | 350 MHz | 500 MHz |
| Vertical Resolution | 12 bit | 12 bit | 12 bit |
| Sampling Rate | 3 GSa/s | 3 GSa/s | 3 GSa/s |
| Max. waveform capture rate | 230,000 wfms/s | 230,000 wfms/s | 230,000 wfms/s |
| Memory depth | 360 Mpts | 360 Mpts | 360 Mpts |
| Std bus decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B |
| Interfaces | USB 3.0 Host, USB Typ C, LAN, HDMI, Trigger out | USB 3.0 Host, USB Typ C, LAN, HDMI, Trigger out | USB 3.0 Host, USB Typ C, LAN, HDMI, Trigger out |
| Output | external via HDMI | external via HDMI | external via HDMI |
| Dimensions / Net Weight | 224.5 x 30 x 264.3 mm / 1.1kg | 224.5 x 30 x 264.3 mm / 1.1kg | 224.5 x 30 x 264.3 mm / 1.1kg |
12-bit Vertical Resolution
The MO3 series has 12-bit high-resolution ADC with a quantization level of up to 4096, which is 16 times that of traditional 8-bit ADC, helping users to observe waveform details more comprehensively and clearly.
Most friendly UI
Equipped with instrument-dedicated SigTestUI™ operating system, and accumulation of 10 years of UI design experience, the MO3 series evolved to simplify all user interfaces, newer engineers can quickly learn to use in 5 minutes.
Complete connectivity
Equipped with rich interfaces including USB 3.0/2.0 Host, USB Type-C, LAN, SFP+, HDMI, Trigger In/ Out, and 10MHz Clock In/Out. Supports host computer control of oscilloscopes, SCPI, secondary development, and high-speed data transmission.
Low noise floor
The noise of MO3 series is less than 80 μVrms under 500 MHz full bandwidth, allow engineers accurately capture weak but important signals during daily circuit debugging.
Space saving and universally mountable
Only 3 cm high and compact in size, it fits easily into a rack and supports test system integration.
Deep memory and segmented storage acquisition
Up to 360Mpts memory depth delivers excellent signal fidelity, segmented storage divides the limited storage space into multiple small segments, and collects multiple trigger events into one storage space, effectively captures target signals multiple times over a long period of time and play back for further analysis.
Multi-channel cascading
The MO34 series supports rack mounting and the synchronisation of multiple devices in a matrix to achieve a larger number of analogue channels (up to 16).
Hardware digital filter
Hardware digital filtering can selectively pass or block signal components within a specific frequency range, very useful for analyzing specific frequency bands of a signal or observing changes in specific frequency components.
Supports remote control and HDMI
The MO3 series supports PC and smartphone remote control, also have HDMI port for data output. Supports SCPI programming commands control, helping engineers achieve automated measurements more flexibly and efficiently.
Downloads
Datasheet
MO3 Series Data sheet
Language: English
File Size: 3.64 MiB
Release Date: 27.11.2025
Manual
MO3 Series QSG
Language: English
File Size: 681.61 KiB
Release Date: 29.08.2025
