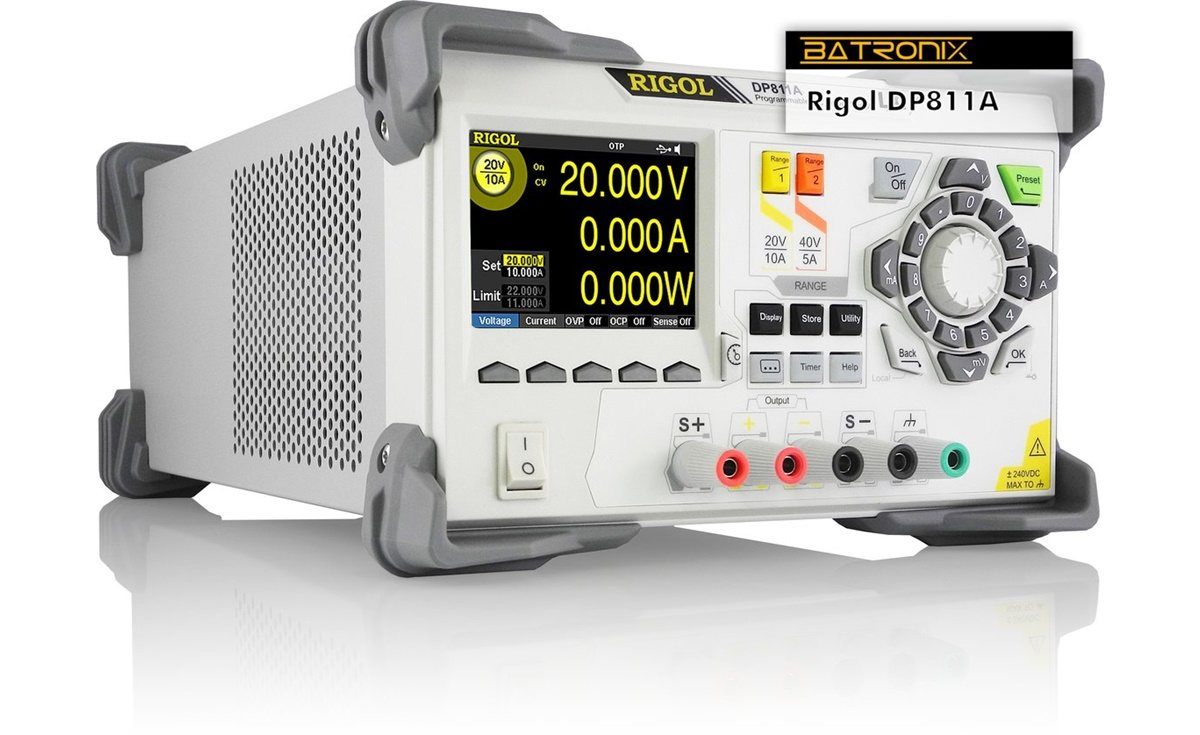

Rigol DP811A

36 Reviews

High quality programmable DC power supply with one output channel (+20 V/10 A or +40 V/5 A, DC switchable, max 200 W).

Big Rigol Promotion
2% discount on all Rigol measuring instruments and licences (accessories excluded).
(Valid until February 15, 2021)

3 years warranty

Nr: DP811A

with FREE shipping within the EU!
Shipping costs outside EU

in Stock

€ 808.01 2% discount

€ 665.42 net (VAT Details)

€ 791.85 incl. 19% VAT

Description

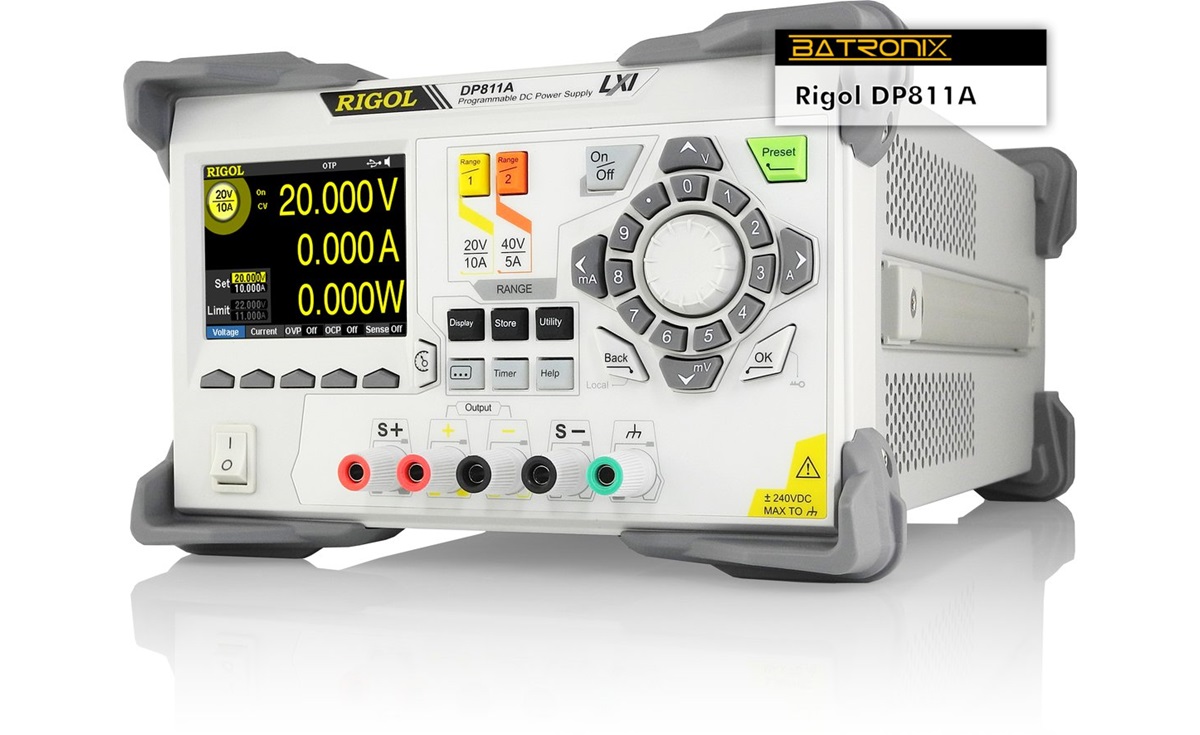

The Rigol DP811A is a very high quality programmable laboratory power supply with a switchable output (20 V/10 A or 40 V/5 A) and a maximum power output of 200 W.

Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.

The Rigol DP811A features a relative large (8.9 cm / 3.5") and easy to read TFT color display. In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves. A timer control can be used to set the output signal to different values in up to 2048 steps.

Quick comparision	DP811 / DP811A	DP821 / DP821A	DP831 / DP831A	DP832 / DP832A
Voltage / Current CH1	0 - +20 V / 0 - 10 A oder 0 - +40 V / 0 - 5 A	0 - +60 V / 0 - 1 A	0 - +8 V / 0 - 5 A	0 - +30 V / 0 - 3 A
Voltage / Current CH2		0 - +8 V / 0 - 10 A	0 - +30 V / 0 - 2 A	0 - +30 V / 0 - 3 A
Voltage / Current CH3			0 - -30 V / 0 - 2 A	0 - +5 V / 0 - 3 A
I/O Ports	USB device, USB Host

	A-Models	Basic Models
Voltage Resolution	1 mV	10 mV (1 mV with High-Resolution Option)
LAN, RS232 and Digital IO Ports	Included	Option
Online Monitoring & Analysis Function	Included	Option
Display	3.5" (8.9 cm) Color-TFT	3.5" (8.9 cm) Monochrome TFT

Special Features

Clearly Arranged Display

All important data such as voltage, current, power, and limit values can easily be displayed on the display with a diagonal size of 8.9 cm (3.5") and a resolution of 320x240 pixels.

Output Monitoring

The monitor can monitor the current output state of the instrument. When the user-defined monitor condition is met, the instrument executes the corresponding operation according to the setting in "Stop Mode", like showing a warning, shut off the output or produce a beep sound.

Display Signal Curves

Changes in the measurement values and settings can be presented very well and in real time using the integrated signal curve display. This makes it possible to detect things like current draw peaks, for example when the current limit is adjusted.

Programmable Timer

The voltage and current settings can be changed automatically with a timer control. Up to 100 settings can be stored for this purpose, and then activated one after another for variable intervals (specified in seconds).

Output Analysis

The analyzer can analyze the file recorded and provides the analysis results, including the number of groups, median, mode as well as the average, VAR, range, minimum, maximum and mean deviation of the voltage, current or power of different channel.

Trigger Output

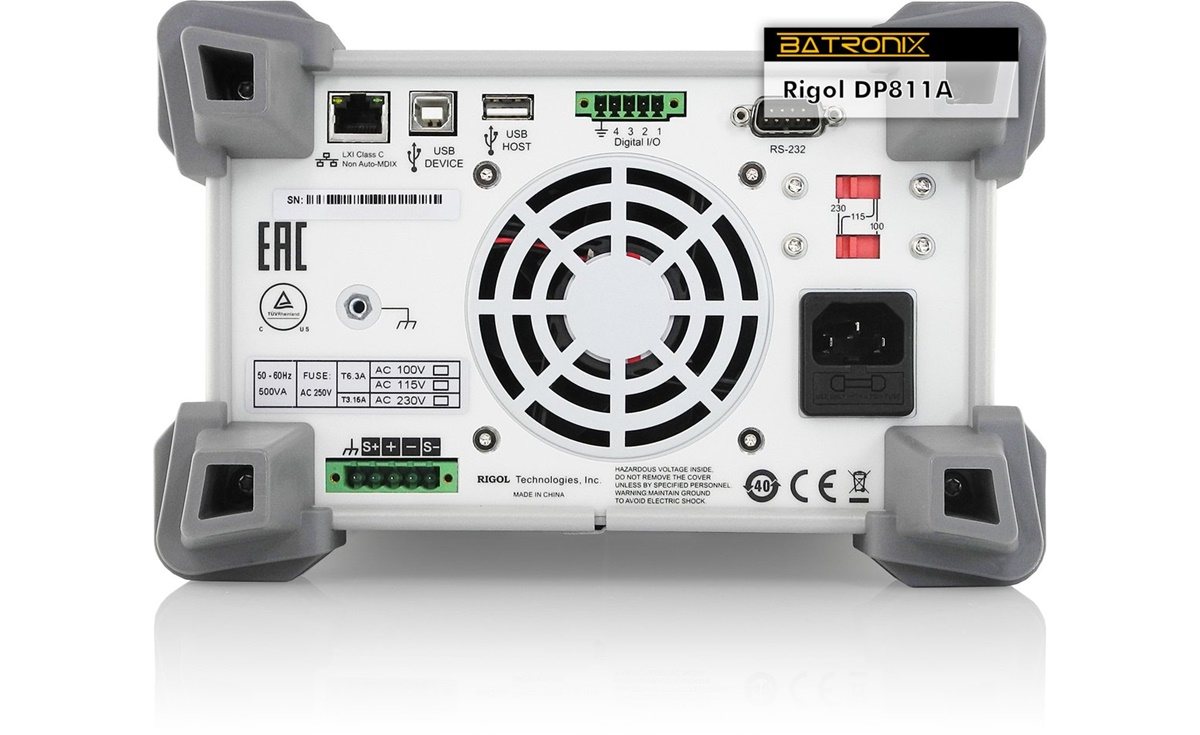

The rear panel of DP800A provides a digital I/O interface (as shown below) which supports trigger input and trigger output. The 4 data lines are mutually independent and can be used as trigger input line or trigger output line separately.

Excellent connectivity and remote control via SCPI / LabView

The Rigol DP811A can be controlled remotely with SCPI commands through a variety of interfaces. The following interfaces are available:

USB
LAN
GPIB (optional)

Control of the device can be integrated into your own applications, or by using LabView via these interfaces.

Programming Guide
Filesize: ca. 2.64 MByte

Specifications

Specifications	Rigol DP811A
Outputs	1 output with 2 selectable ranges
Output	0 to 20 V/DC with max. 10 A or 0 to 40 V/DC with max. 5 A
Ground Sharing	Output 1 sole GND
Output Power (max.)	200 W
Overtemperature shut down	55 °C
Working Temperature	0 °C to 40 °C
Cooling Method	Fan cooling

Output Voltage	Output Range 1	Output Range 2
Output Voltage	0 to 20 V/DC	0 to 40 V/DC
Accuracy	±0.05% + 10 mV	±0.05% + 10 mV
Resolution	1 mV	1 mV
Overvoltage Protection	100 mV to 22 V	100 mV to 44 V
Load Regulation	< 0.01% + 2 mV
Line Regulation	< 0.01% + 2 mV
Ripple and Noise	< 350 μV rms / 2 mVpp

Output Current	Output Range 1	Output Range 2
Output Current (max.)	10 A	5 A
Accuracy	±0.1% + 10 mA	±0.1% + 10 mA
Resolution	1 mA	1 mA
Overcurrent Protection	0.1 A to 11 A	0.1 A to 5.5 A
Load Regulation	< 0.01% + 250 μA
Line Regulation	< 0.01% + 250 μA
Ripple and Noise	< 2 mA rms

Programmable power supply	Rigol DP811A
Display	8.9 cm (3.5") WVGA-Color-LCD
Resolution	320 × 240 Pixel
Additional Interfaces	USB host for connecting USB sticks to store settings USB device for connection to a PC LAN for use on a network (LXI) RS232 GPIB (IEE-488, General Purpose Interface Bus, only with optional adapter) Separate ground connection Digital IO Ports
Dimensions (W × H × D)	23.9 cm × 15.7 cm × 41.8 cm (9.41" × 6.18" × 16.46")
Weight	9.0 kg (19.84 lbs)
Supported operating systems	XP, Vista, Win 7 (32Bit + 64Bit), Win 8 (32Bit + 64Bit), Win 10 (32Bit + 64Bit)
Input	230 V/AC, 115 V/AC or 100 V/AC (adjustable)
