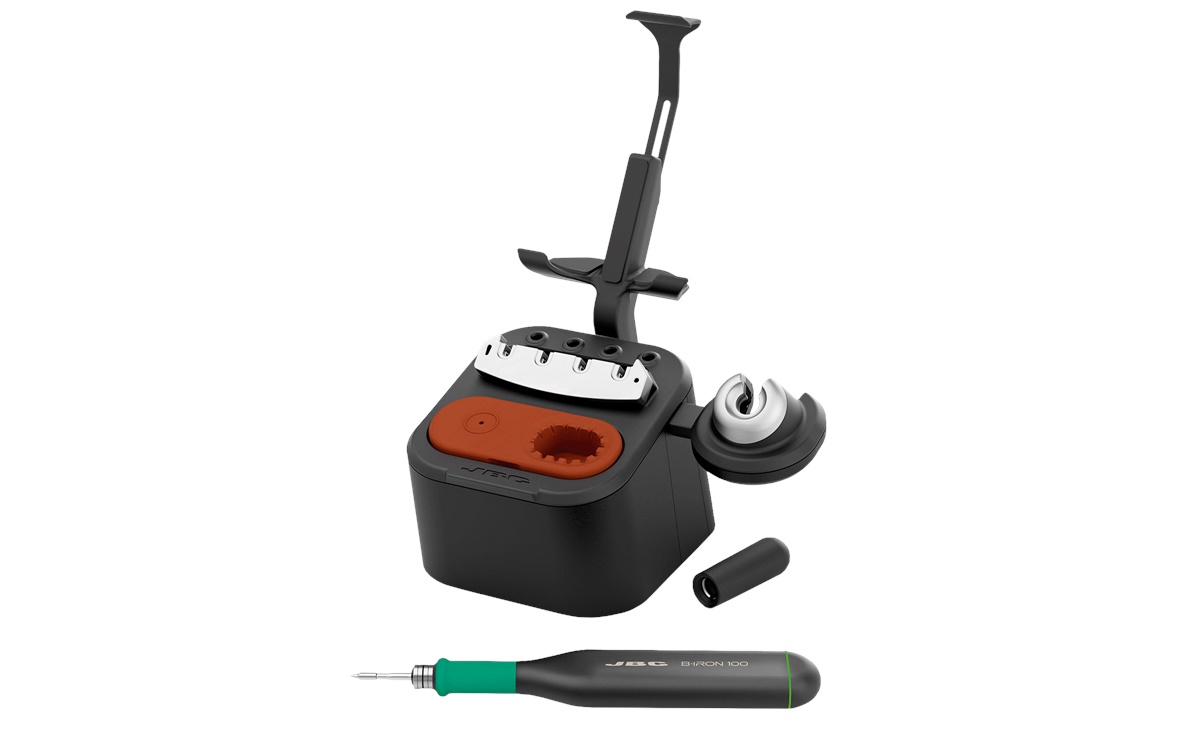

Based on the latest battery improvements combined with JBCs most efficient soldering system, B-IRON becomes the new generation of soldering irons. The JBC B-IRON 100 BIL-5QA performs up to 100 SMD soldering joints per charge and is specially designed for soldering SMDs.
The station comes with a B100-A precision handle fully compatible with C210 cartridge range.It also has a power safe mode that can be activated by putting on the cap. The charging base charges the tool automatically when placed in the tool holder and allows adjusting the angle to suit the operator´s needs.
It also features a quick cartridge exchanger, which enables a safe and easy cartridge change, a tip cleaner with brass wool and antisplash membrane. Configure and control the system via the portable 7" display with the B·IRON App. Alternatively you can use your own device. You can download the APP from Google and Apple App store.
The BIL-5QA comes without portable display!
| Specifications | B-IRON 100 |
|---|---|
| Weight | 1.75 kg (3.86 lbs) |
| Size | 265 x 223 x 160 mm |
| Output Power Station | 40 W |
| Output Power Tool | 24 W |
| Temperature selection | 100-450 ºC (210-840 ºF) |
| PC connection | USB |
| ESD Safe | |
| Package weight | 2.62 kg (5.77 lbs) |
| Package dimensions | 265 x 223 x 160 mm |
