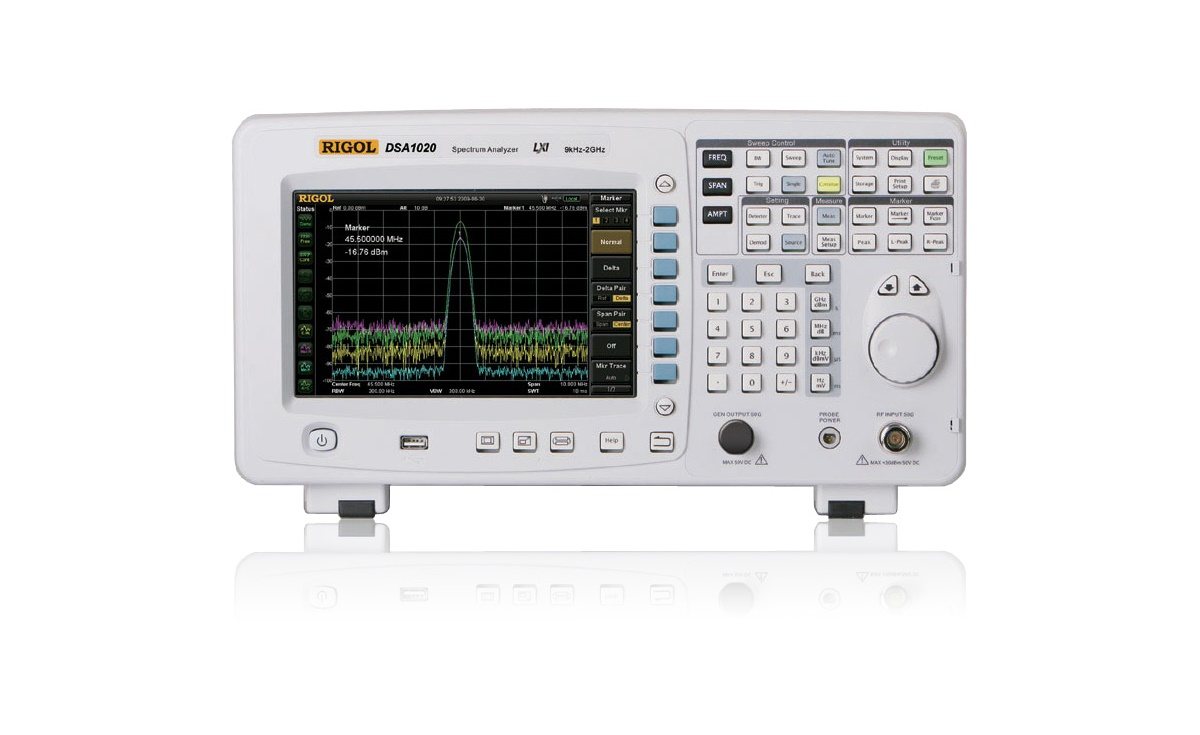

The Rigol DSA1020 is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.
The very large display (21.6 cm / 8.5") of the Rigol DSA1020 Spectrum Analyzer provides a resolution of 800 x 480 pixels allowing a very good overview of all comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer.
The Rigol Spectrum Analyzers have a sophisticated and easy to use interface offerering multiple functions for all tasks. The menu navigation is very intuitive, all functions and parameters are easy to locate thanks to the graphical interface.
| Model overview | Adv. Measure Kit | Preamplifier | Tracking Gen. | |
|---|---|---|---|---|
| DSA1020 | ||||
| DSA1030 | ||||
| DSA1030-TG3 | ||||
| DSA1030A | ||||
| DSA1030A-TG3 |
built-in feature
optional accessory, please order separately
not available
Special Features
- Filesystem and USB Stick Support
The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks. - Integrated Helpsystem
The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.
LCD Screenshots
Big Display
The TFT-LCD display is an 21.6 cm (8.5") widescreen with 800 × 480 high resolution and fine spectral lines for displaying large data sets. There are 601 display points available in normal and 761 points in full screen mode.
Clear File System
Instrument settings and waveform data can be saved to or loaded from files in the internal memory of the analyzer or external USB flash devices. The analyzer can make files such as Setting file, Status file, Trace file, Amplitude correction file, Measurement data, Marker table file, Peak table file and Limit file.
Measurement of peak values
After a peak search all peaks matching the defined parameter conditions are displayed in this peak table (with frequency and amplitude shown). The table can show up to ten peaks at the same time.
Detailed Network Configuration
The analyzer supports communications through the LAN, USB and GPIB interface. Both LAN and USB are standard interfaces. Using this comfortable LAN setup every necessary parameter can configured easily.
Simple use of Markers
This table displays all the opened markers on the lower portion of the screen, including Marker number, Trace number, Trace Type, X-axis, and Amplitude readout. Through this table you can view the measured value from multiple points. The table allows for up to eight markers to be displayed at one time.| Spectrum Analyzer | Spectrum Analyzer Rigol DSA1020 |
|---|---|
| Display | 21.6 cm (8.5") TFT-Color-LCD with 65536 colors |
| Resolution | 800 × 480 Pixel |
| Interfaces |
|
| Dimensions | 399 mm × 223 mm × 159 mm (15.71" × 8.78" × 6.26") |
| Weight | 6.2 kg (13.67 lbs) 7.5 kg (16.54 lbs) with connected battery. The battery is not included. |
| Supported operation systems | Windows XP (32Bit), Vista (32Bit), Windows 7 (32Bit) |
The complete list of technical specifications can be found in chapter 6 "Specifications" of the manual. A shorter overview is available in the datasheet.
| Function | Spectrum Analyzer Rigol DSA1020 | |
|---|---|---|
| Channels | 1 | |
| Frequency Range | 9 kHz to 2 GHz | |
| Frequency Resolution | 1 Hz | |
| Internal Frequency Reference | 10 MHz | |
| Span | 0 Hz (zero Span) 100 Hz to 2 GHz | |
| DANL (Displayed Average Noise level) | 100 kHz to 10 MHz 10 MHz to 2 GHz | < -75dBm-3x(f/1 MHz)dB typical: -115 dBm < -117dBm-3x(f/1GHz)dB typical -120 dBm |
| Amplitude Range | DANL to +30dBm | |
| Max. Input Voltage | 50 V | |
| Sweeptime Range | 100 Hz ≤ Span ≤ 2 GHz 0 Hz (zero Span) | 10 ms to 2000 s 20 µs to 2000 s |
| Sweepmodes | Normal or Single | |
| Resolution Bandwidth (RBW) | 100 Hz to 1 MHz (in 1-3-10 sequence) | |
| Video Bandwidth (VBW) | 1 Hz to 3 MHz (in 1-3-10 sequence) | |
| Input Impedance | 50 Ω nominal |
Downloads
Datasheet
Rigol DSA1030-PA-TG3 Datasheet
File Size: 643.83 KiB
Release Date: 27.12.2018
Manual
Rigol DSA1000 Manual
Language: English
Version: UGD02119-1110
File Size: 4.63 MiB
Release Date: 19.03.2015
Rigol DSA1000 Programming Guide
Language: English
Version: PGD02107-1110
File Size: 3.20 MiB
Release Date: 30.09.2014
Rigol DSA1000 Quick Guide
Language: English
Version: QGD02108-1110
File Size: 1.81 MiB
Release Date: 24.03.2015
Software
NI-VISA Run-Time Engine 17.0
Version: 17.0
File Size: 123.33 MiB
Release Date: 22.05.2017
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit)
