Description

The Siglent SHN900A series vector network analysers are powerful and flexible tools with a frequency range from 30 kHz to 26.5 GHz. The 2-port models in the SHA900A series provide reliable automatic measurements and numerous functions.

These devices are designed to give you optimum and immediate insight into scatter, difference and time domain measurements. The series is also very powerful and accurate for determining the Q-factor and insertion loss of a filter.

Five sweep types are possible:

Linear frequency mode
Logarithmic frequency mode
Power sweep mode
CW time mode and
Segment sweep mode

The SHN900A series VNAs also support scattering parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for more flexibility in R&D and manufacturing applications.

The Siglent SHN900A has a very well designed and easy to use interface. It also offers a wide range of comfort functions for all tasks. The menu navigation is intuitive to use and all functions and parameters are easy to operate.

Model Overview	SHN914A	SHN920A	SHN926A
Frequency range	30 kHz - 14 GHz	30 kHz - 20 GHz	30 kHz - 26.5 GHz
Ports	2	2	2
Frequency resolution	1 Hz	1 Hz	1 Hz
Dynamic range	100 dB (Spez.) - 110 db (typisch)	100 dB (Spez.) - 110 db (typisch)	100 dB (Spez.) - 110 db (typisch)
Setting range of output level	-45 dBm ~ +10 dBm	-45 dBm ~ +10 dBm	-45 dBm ~ +10 dBm
Video output (HDMI)
Touch-Display
Scattering-parameter measurement
Differential-parameter measurement
Limit test
Impedance conversion

**You will find the specifications of the SHN900A here

Front Panel

Useful shortcuts simplify setup steps for efficient testing
8.4 inch multi-touch screen, resolution 800*600
Multiplexed keys for menu selection and numeric entry
New panel design contributes to better operation and the ultimate touch screen experience
Lightweight and portable, designed to meet the needs of field and outdoor operations

Back panel

① K-groove
② Port 1, RF signal input and output ports, 50 Ω NMD 3.5 mm Male Connector
③ Trig In, Trigger Input, BNC Female
④ Ref In, Reference Clock Input, BNC Female
⑤ Port 2, RF signal input and output port, 50 Ω NMD 3.5 mm Male Connector
⑥ GPS Ant, GPS antenna port, SMA Female Connector, Used to install GPS antenna to receive GPS satellite signals (Standard)
⑦ Bias Out, Bias voltage output port, 50 Ω SMB Female Connector (Standard)
⑧ ⑨ ⑩ Type C, USB Host, LAN, remote view and control of analyzer through web browser, keyboard and mouse
⑪ External power supply 12 V 4 A, for powering devices and charging batteries
⑧ ⑨ Read or store files to external extended memory, Ecal connection

Friendly user interface

Adjustable Intensity of Display - Provides a display that adapts to different environments and provides good visibility under direct sunlight conditions
Virtual Keypad - The instrument can be operated without operating the function buttons on the front panel
Information Display Area - Touch and click for quick setting of corresponding parameters
Screensavers - With hibernation power-saving function, hibernation time can be set to save power, effectively extend the battery operating time and battery life

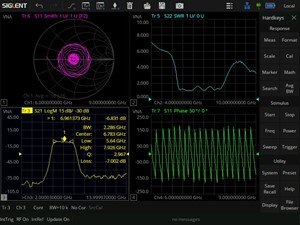

Multi-Window Multi-Trace Display

Multi-window display - supports up to 256 channels and up to 256 measurement windows. Each window can display 64 test traces at the same time
Higher efficiency
Clearer results
Each window can display different measurement formats with independent cursor functions
Rapid execution of complex test solutions

High dynamic range

Capable of measuring small signals
Meet more high dynamic range test scenarios
Measurement of highly suppressed narrowband devices such as cavity filters
Simultaneous measurement of passband and out-of-band rejection performance of filters

Segment-sweep mode

Support Segment-Sweep mode
Ideal for testing filters with high out-of-band rejection
Simultaneous measurement of multiple frequency bands with independent parameters within each band
Different number of points, frequency range, IF bandwidth, etc. can be set for each scanning segment
The list is easy to edit, you can directly click on the parameters to be edited

Flexible calibration types

Support for user-defined calibration kits
Facilitates testing of devices with different interface types

Electronic calibration

ECal module includes electronic labeling - calibrated at the factory, data is stored in the memory of the ECal module, automatic calibration
Simple calibration process - electronic calibrators need to be connected to the vector network only once
Less uncertainty in calibration process - reduce the number of connections in the test, less human error
Higher precision
Reduced calibration time
Higher Measurement Compliance

Enhanced TDA

Time Domain Reflection/Transmission Analysis

Time Domain Analysis: accurate measurement of the characteristic impedance of the transmission line to locate the point of failure
Time Domain Selection / Gating Function: analyze the influence of fault on device characteristics

Simulation and Analysis of Eye Charts

Jitter Injection Function: simulating the effect of input signals with jitter on signal transmission
Signal Integrity Analysis: internal emulation to generate eye diagrams without additional code generators
Advanced Waveform Simulation Functions: Simulation improves signal transmission on the transmitter and receiver side of the signal
