Description

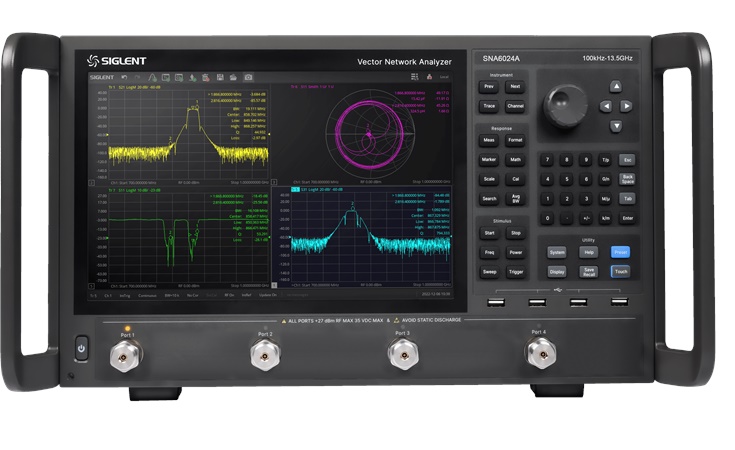

The SIGLENT SNA6000A series of Vector Network Analyzers have a frequency range of 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz, which support 2/4-port scattering parameter, differential-parameter, and timedomain parameter measurements. The Siglent SNA6024A are effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments.

The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SNA6000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.

Model Overview	SNA6022A	SNA6122A	SNA6024A	SNA6124A	SNA6032A	SNA6132A	SNA6034A	SNA6134A
Frequency range	100 kHz - 13.5 GHz	100 kHz - 13.5 GHz	100 kHz - 13.5 GHz	100 kHz - 13.5 GHz	100 kHz - 26.5 GHz	100 kHz - 26.5 GHz	100 kHz - 26.5 GHz	100 kHz - 26.5 GHz
Ports	2	2	4	4	2	2	4	4
Frequency resolution	1 Hz	1Hz	1H	1Hz	1Hz	1Hz	1Hz	1Hz
Dynamic range	135 dB	135 dB	135 dB	135 dB	135 dB	135 dB	135 dB	135 dB
Setting range of output level	-55 dBm ~ +10dBm	-55 dBm ~ +10dBm	-55 dBm ~ +10dBm	-55 dBm ~ +10dBm	-55 dBm ~ +10dBm	-55 dBm ~ +10dBm	-55 dBm ~ +10dBm	-55 dBm ~ +10dBm
Front panel jumper interface
Video output (HDMI)
Touch-Display
Scattering-parameter measurement
Differential-parameter measurement
Limit test
Impedance conversion

You will find the specifications of the SNA6000A series here.

Embedding- and De-Embedding

Embedding and de-embedding function to exclude measurement errors from e.g. adapters, plugs or cables.optimal for exact and reproducible measurements

Multi-window display

This special design extra enables you to display multiple windows at the same time.

Memory data

Display and compare memory and current data

Wide range of applications thanks to new accessories

Broaden the possibilities for your analysors SEM5000A series electronic calibration (ECal) modules, SSU5000A series mechanical switch and SSM5000A series switch matrix, which are designed and optimized for use with the SHA850A, SVA1000X, SNA5000A and SNA6000A series vector network analyzers from SIGLENT. They offer a comprehensive, cost-effective total solution for simple to complex RF measurement tasks on multiport and multiple devices.
