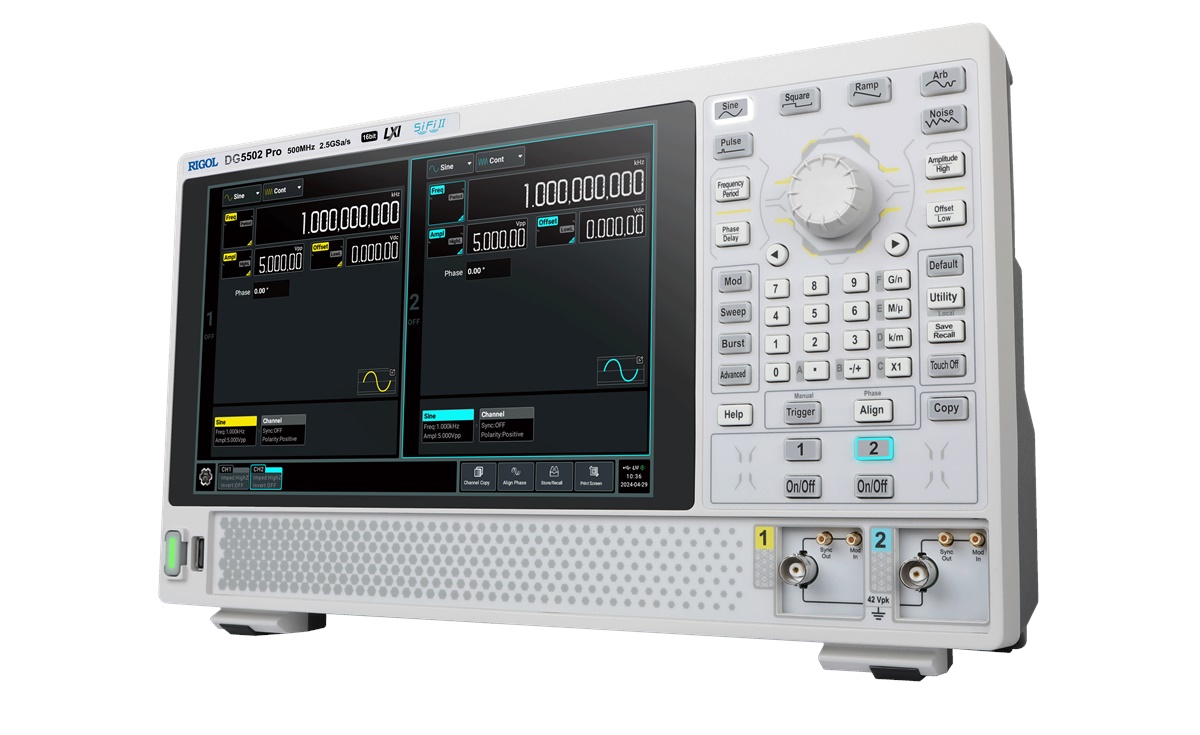

Rigol DG5502 Pro

Be the first to write a review

2 channel function / arbitrary waveform generator with 1 μHz to 500 MHz bandwidth, 2.5 GSa/s samplerate, 16 Bit resolution, 64 Mpts memory depth (128 Mpts optional), amplitude range 1 mVpp to 20 Vpp (high impedance), 25,7 cm (10.1") touchdisplay.

3 years warranty

No.: DG5502 Pro

with FREE shipping within the EU!
Shipping costs outside EU

in Stock

€ 4,899.- net (VAT Details)

€ 5,829.81 incl. 19% VAT

Description

DG5000 Pro series function/arbitrary waveform generator provides up to 2.5 GSa/s sample rate and 64 Mpts/CH memory depth (standard). It is a cost-effective dual-channel function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.

The 10.1" touch screen allows a clear view on measurement results. Its provides USB and LAN interfaces (standard) as well as the Web Control function for you to control the instrument directly, bringing smoother interaction.

Model	DG5252 Pro	DG5352 Pro	DG5502 Pro
Max. Frequency	250 MHz	350 MHz	500 MHz
Resolution	1 µHz	1 µHz	1 µHz
Sample Rate	2.5 GSa/s	2.5 GSa/s	2.5 GSa/s
Vertical Resolution	16 bits	16 bits	16 bits
Waveform Memory Depth	64 Mpts (standard), 128 Mpts (optional)	64 Mpts (standard), 128 Mpts (optional)	64 Mpts (standard), 128 Mpts (optional)
Max Amplitude	10 Vpp < 100 MHz	10 Vpp < 100 MHz	10 Vpp < 100 MHz
Frequency Counter	up to 1 GHz	up to 1 GHz	up to 1 GHz
Channels	2	2	2

You will find the specifications of the Rigol DG5000 Pro series here.

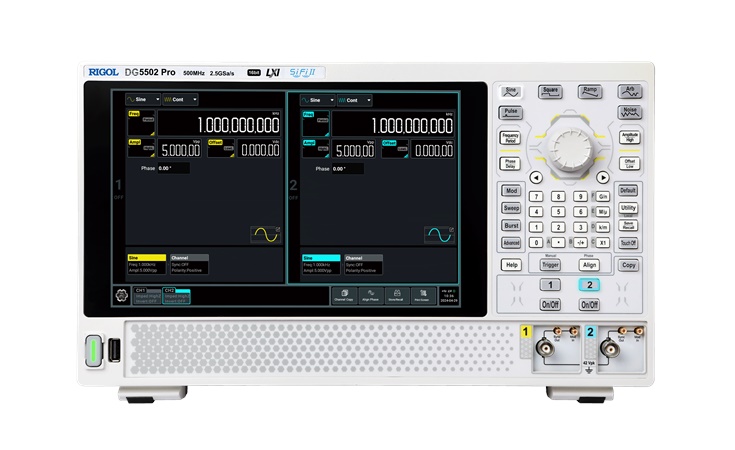

Frontansicht

1 - 10.1-inch Touch Screen
2 - Output Mode Selection Area
3 - Frequency/Period and Phase/Delay Toggle Keys
4 - Basic Waveform Selection Area
5 - Amplitude/High Level and Offset/Low Level Toggle Keys
6 - Parameter Input Area (Knob, Arrow Keys, and Numeric Keypad)
7 - Quick Operation Key
8 - Channel Output Control Area
9 - CH2 Sync Output Connector, Modulation Input Connector
10 - CH2 Output Connector
11 - CH1 Sync Output Connector, Modulation Input Connector
12 - CH1 Output Connector
13 - Help Key, Manual Trigger Key, Align Phase Key
14 - USB HOST Interface
15 - Power Key

Rear View

1 - 10 MHz Reference Output Connector
2 - 10 MHz Reference Input Connector
3 - Mounting Screw Holes (VESA 100 x 100)
4 - HDMI Interface
5 - USB DEVICE Interface
6 - LAN Interface
7 - Security Lock Hole
8 - AC Power Socket
9 - Fuse
10 - Battery Holder Connector
11 - Auxiliary Output Connector
12 - External Trigger Input Connector

User Interface

1 - Basic Waveform Drop-down Button
2 - Output Mode Drop-down Button
3 - Parameter Configuration Area
4 - Notification Area
5 - Screen Capture Key
6 - Store/Recall Key
7 - Align Phase Function Key
8 - Channel Copy Function Key
9 - Channel Tab
10 - Channel Labels
11 - Function Navigation Icon
12 - Waveform Tab
13 - Channel Identifier
