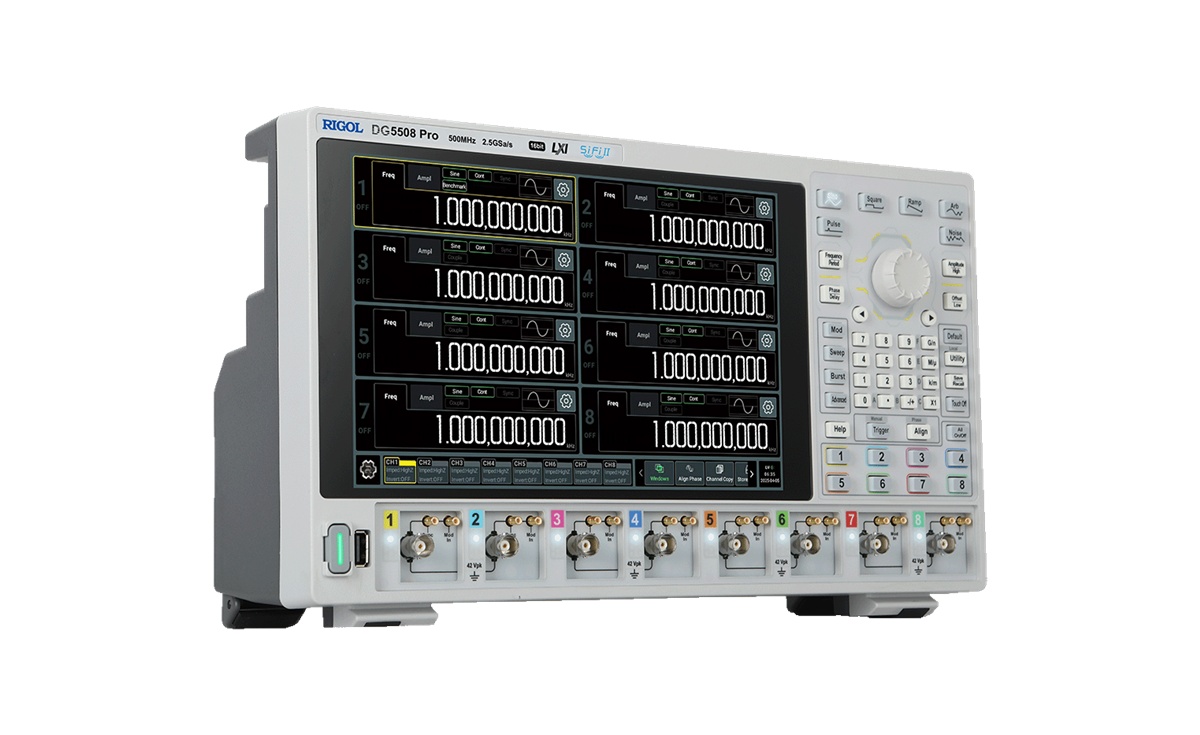

The DG5000 Pro Series is a versatile and cost-effective solution offering up to eight channels and galvanic isolation. It combines the functions of a function generator, an arbitrary waveform generator, a noise generator, a pulse generator, a harmonics generator and an analogue/digital modulator in a single device. It offers a sample rate of up to 2.5 GSa/s and memory depth of 64 Mpts, which is upgradeable to 128 Mpts.
Isolation:
- Two-channel model: The channels are isolated from the ground. The maximum isolated DC voltage is ±42 Vpk, and the two channels are not isolated.
- Four-channel model: Each two adjacent channels (CH1&CH2/CH3&CH4 as a group) are isolated from the ground. The maximum isolated DC voltage is 42 Vpk, and the two channels each group are not isolated.
- Eight-channel model: Each two adjacent channels (CH1&CH2/CH3&CH4/CH5&CH6/CH7&CH8 as a group) are isolated from the ground. The max. isolated DC voltage is 42 Vpk and the two channels each group are not isolated.
The 10.1" touch screen allows a clear view on measurement results. Its provides USB and LAN interfaces (standard) as well as the Web Control function for you to control the instrument directly, bringing smoother interaction.
| Model | DG5000 Pro |
|---|---|
| Max. Frequency | 250 - 500 MHz |
| Resolution | 1 µHz |
| Sample Rate | 2.5 GSa/s |
| Vertical Resolution | 16 bits |
| Waveform Memory Depth | 64 Mpts (standard), 128 Mpts (optional) |
| Max. Amplitude | 10 Vpp < 100 MHz |
| Frequency Counter | up to 1 GHz |
| Channels | 2 - 8 |
You will find the specifications of the Rigol DG5000 Pro series here.
| DG5000 Pro (2 channels) | Bandwidth | max. isolated DC voltage |
|---|---|---|
| DG5252 Pro | 250 MHz | ±42 Vpk |
| DG5352 Pro | 350 MHz | ±42 Vpk |
| DG5502 Pro | 500 MHz | ±42 Vpk |
| DG5000 Pro (4 channels) | Bandwidth | max. isolated DC voltage |
|---|---|---|
| DG5254 Pro | 250 MHz | ±42 Vpk |
| DG5354 Pro | 350 MHz | ±42 Vpk |
| DG5504 Pro | 500 MHz | ±42 Vpk |
| DG5000 Pro (8 channels) | Bandwidth | max. isolated DC voltage |
|---|---|---|
| DG5258 Pro | 250 MHz | ±42 Vpk |
| DG5358 Pro | 350 MHz | ±42 Vpk |
| DG5508 Pro | 500 MHz | ±42 Vpk |

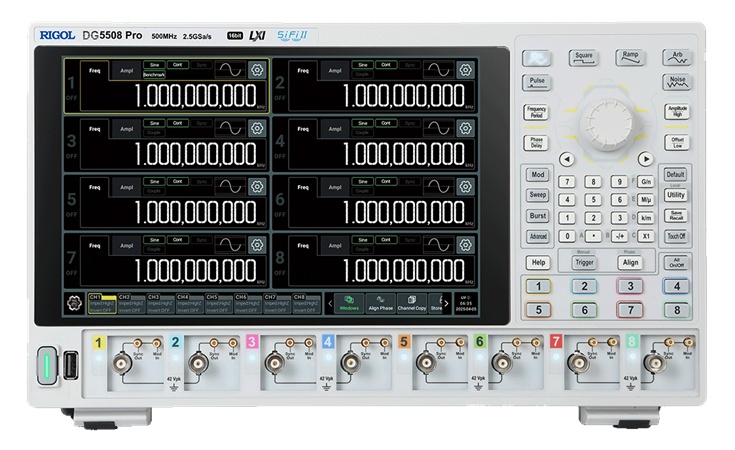

Frontansicht
1 - 10.1-inch Touch Screen
2 - Output Mode Selection Area
3 - Frequency/Period and Phase/Delay Toggle Keys
4 - Basic Waveform Selection Area
5 - Amplitude/High Level and Offset/Low Level Toggle Keys
6 - Parameter Input Area (Knob, Arrow Keys, and Numeric Keypad)
7 - Quick Operation Key
8 - Channel Output Control Area
9 - CH2 Sync Output Connector, Modulation Input Connector
10 - CH2 Output Connector
11 - CH1 Sync Output Connector, Modulation Input Connector
12 - CH1 Output Connector
13 - Help Key, Manual Trigger Key, Align Phase Key
14 - USB HOST Interface
15 - Power Key
Rear View
1 - 10 MHz Reference Output Connector
2 - 10 MHz Reference Input Connector
3 - Mounting Screw Holes (VESA 100 x 100)
4 - HDMI Interface
5 - USB DEVICE Interface
6 - LAN Interface
7 - Security Lock Hole
8 - AC Power Socket
9 - Fuse
10 - Battery Holder Connector
11 - Auxiliary Output Connector
12 - External Trigger Input Connector
User Interface
1 - Basic Waveform Drop-down Button
2 - Output Mode Drop-down Button
3 - Parameter Configuration Area
4 - Notification Area
5 - Screen Capture Key
6 - Store/Recall Key
7 - Align Phase Function Key
8 - Channel Copy Function Key
9 - Channel Tab
10 - Channel Labels
11 - Function Navigation Icon
12 - Waveform Tab
13 - Channel Identifier
