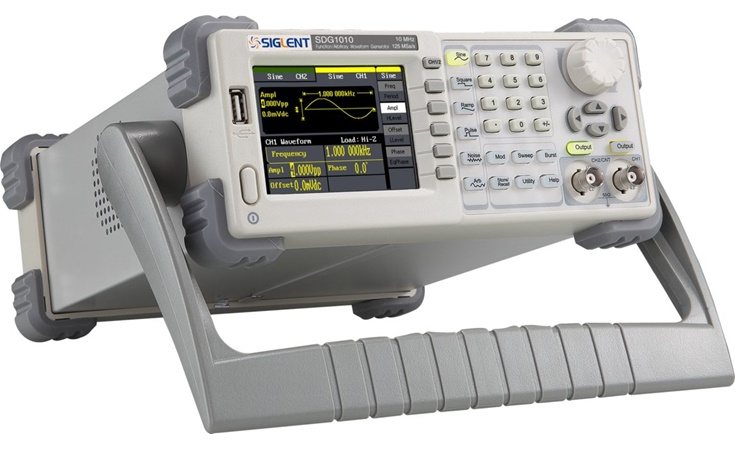

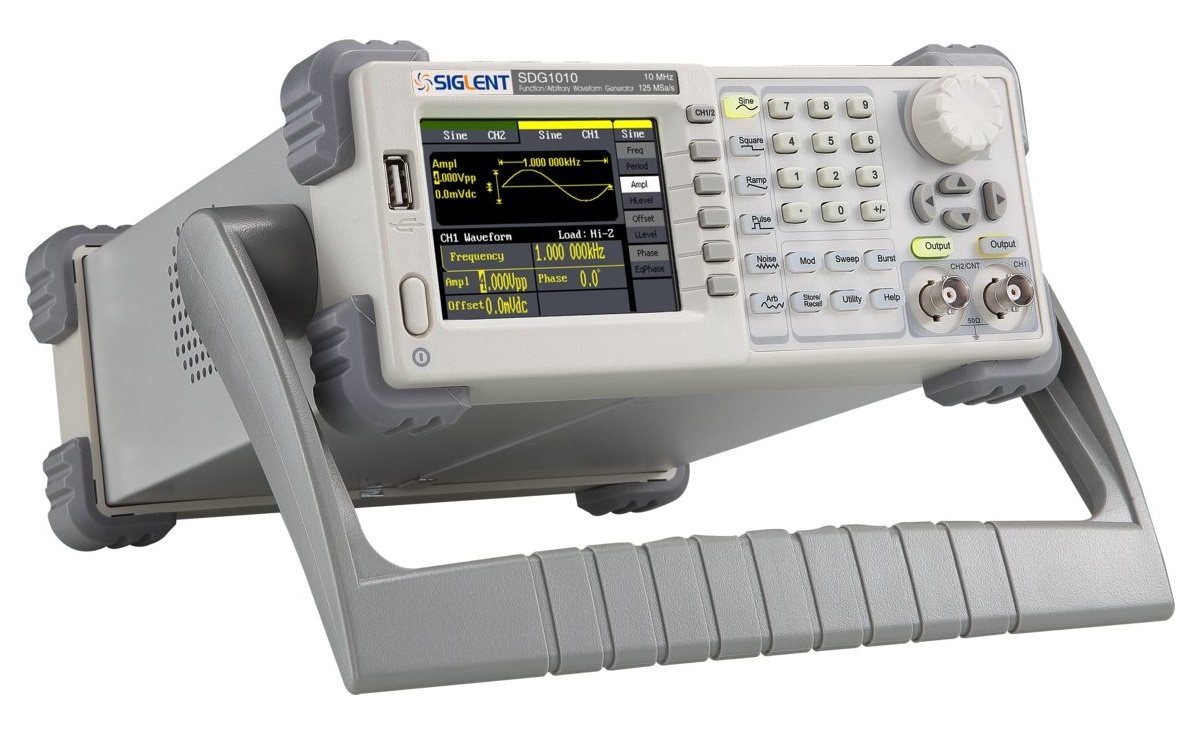

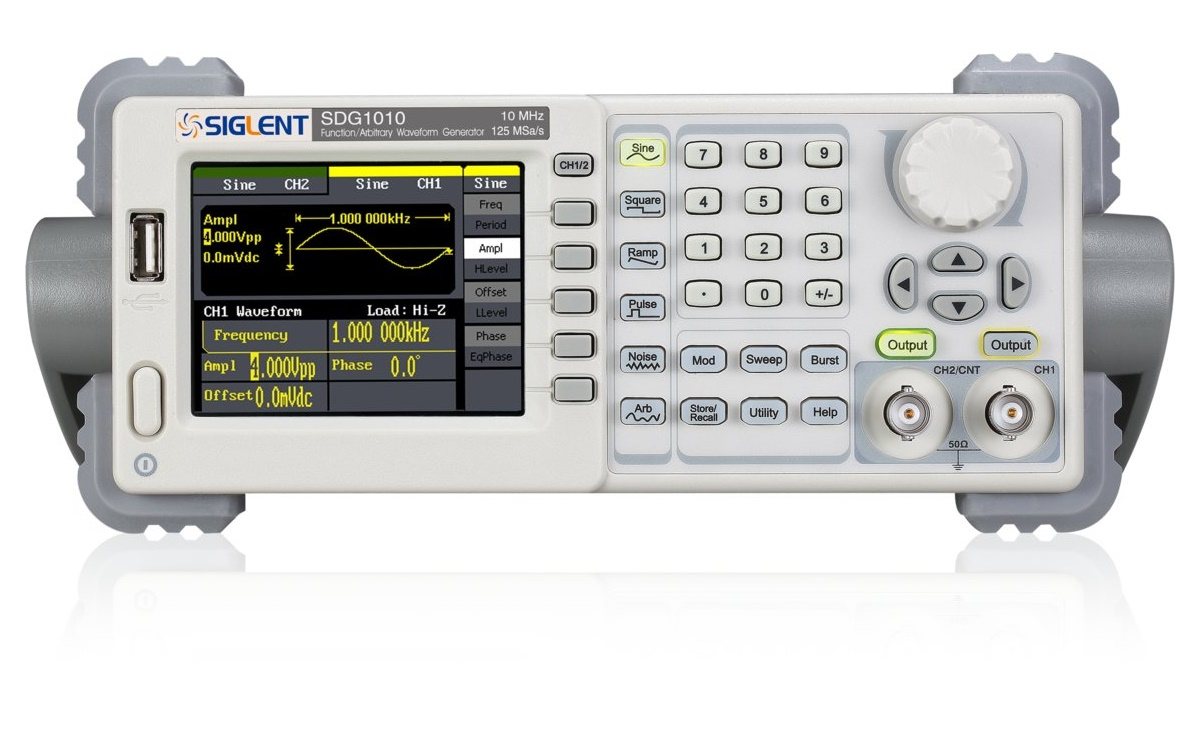

Picture:  Siglent SDG1010
Picture:  Siglent SDG1010 Picture:  Siglent SDG1010 Picture:  Siglent SDG1010

Siglent SDG1010

High quality 2 channel function / arbitrary waveform generator with 10 MHz bandwidth, 125 MSa/s and 16 kpts memory.

This article is no longer available.
Alternative Article: Siglent SDG1032X

3 years warranty

30 days trial period

The Siglent SDG1010 is a 2 channel Function / Arbitrary Waveform Generator to create high quality signals up to 10 MHz (Sine). Beside the analog output, the device includes an USB-Host- and an USB-device interface.

The Siglent function generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Model SDG805 SDG1010 SDG1025 SDG1050
Max. Frequency 5 MHz 10 MHz 25 MHz 50 MHz
Resolution 1 µHz 1 µHz 1 µHz 1 µHz
Max. Sample rate 125 MSa/s 125 MSa/s 125 MSa/s 125 MSa/s
Frequency Counter not available up to 200 MHz up to 200 MHz up to 200 MHz
Channels 1 2 2 2

LCD Screenshots

Sinus Signal AM Modulation PM Modulation Sweep Function Burst Function Online Help


Generator Function / Waveform Generator Siglent SDG1010
Display 3,5" (8,89 cm) Color TFT
Resolution 320 × 240 Pixel
Interfaces
  • USB-Host (for USB stick i.e. to save/load waveforms)

  • USB for a PC connection

Dimensions

229 mm × 281 mm × 105 mm

(9" × 11" × 4.1")

Weight 2.6 kg (5.73 lbs)
Supported operation systems Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)

The complete list of technical specifications can be found in the datasheet.

Function Function / Waveform Generator Siglent SDG1010
Channels 2
Signal Output Sine, Square, Ramp, Pulse, Gaussian Noise. 46 built-in arbitrary waveforms (include DC)
Vertical Resolution 14 bit
Amplitudes

CH 1:

2 mVpp ~ 10 Vpp (50 Ω,≤10 MHz)

2 mVpp ~ 5 Vpp (50 Ω,> 10 MHz)

4 mVpp ~ 20 Vpp (high impedance,≤10 MHz)

4 mVpp ~ 10 Vpp (high impedance,>10 MHz)

CH 2:

2 mVpp ~ 3 Vpp (50 Ω)

4 mVpp ~ 6 Vpp (high impedance)

DC Offset

±5 V (50 Ω)

±10 V (high impedance)

Sample Rate 125 MSa/s
Frequency Range Sine 1 µHz - 10 MHz
Frequency Range Rectangle 1 µHz - 10 MHz
Frequency Range Pulse 500 µHz - 5 MHz
Frequency Range Ramp 1 µHz - 300 KHz
Frequency Range Arbitrary 1 µHz - 5 MHz
Frequency Range Noise >10 MHz (-3db)
Resolution 1 µHz
Modulations AM, DSB-AM, FM, PM, FSK, ASK, PWM

Downloads

Datasheet

Adobe PDF

Siglent SDG1000 Datasheet

Language: English
File Size: 238.66 KiB
Release Date: 23.05.2017

Manual

Adobe PDF

Siglent SDG1000 User Manual

Language: English
Version: UM02010-E08B
File Size: 1.14 MiB
Release Date: 23.05.2017

Adobe PDF

Siglent SDG1000 Quick Start

Language: English
Version: QCS02010-E02A
File Size: 340.68 KiB
Release Date: 25.09.2014

Adobe PDF

Siglent SDG1000 Programming Manual

Language: English
File Size: 1.29 MiB
Release Date: 08.04.2016

Adobe PDF

Siglent SDG1000 SCPI Command Reference

Language: English
File Size: 189.15 KiB
Release Date: 30.10.2014

Adobe PDF

Siglent SDG1000 Service Manual

Language: English
Version: SM02010-E01B
File Size: 3.03 MiB
Release Date: 30.09.2014
